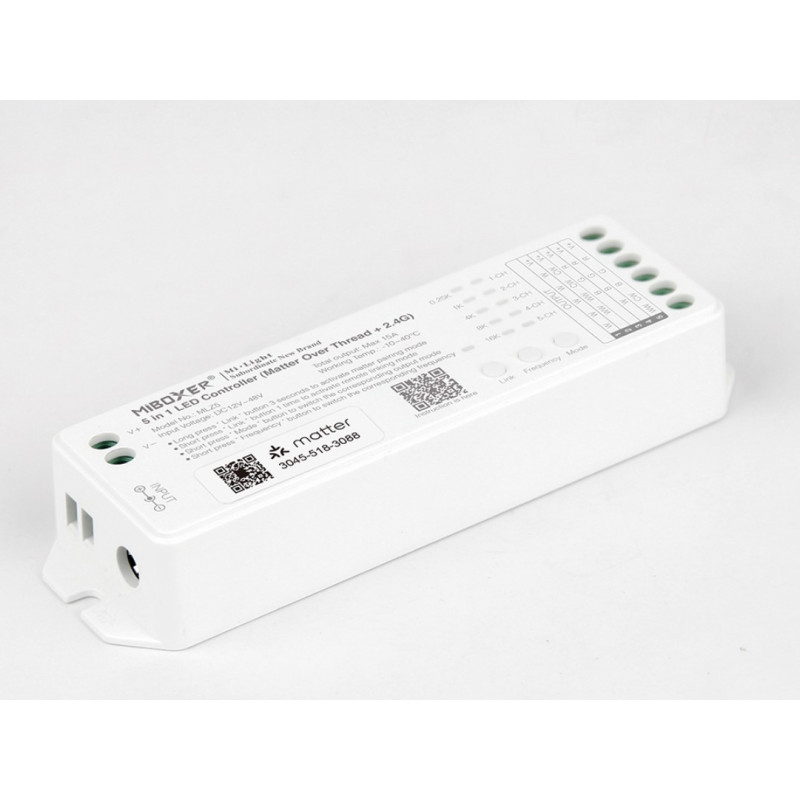

MiBoxer MLZ5 Controlador LED 5-em-1, Matter over Thread, 12–48 V DC, 15 A

MiBoxer MLZ5 controls constant-voltage LED strips in five selectable modes: single colour, CCT, RGB, RGBW and RGB+CCT. The current product label and distributor data sheet specify a 12–48 V DC input. The output limit is 6 A per channel and 15 A across all channels combined. Select a power supply and LED strips with matching voltage and keep both current limits within specification.

For smart-home control, the MLZ5 uses Matter over Thread. A compatible Matter controller and Thread network enable integration with supported smart-home platforms. It also accepts compatible MiBoxer 2.4 GHz RF remotes for direct control, with a specified range of up to 30 m under suitable conditions. Pairing is initiated using the Link button and the Matter QR code.

The Mode button selects the output arrangement, while the Frequency button selects the PWM setting from 250 Hz, 1 kHz, 4 kHz, 8 kHz or 16 kHz. The white enclosure is rated IP20 for indoor installation and operates at −10 to +40 °C. The controller has screw terminals and a DC input socket. Power supply, LED strip, remote and smart-home hub are separate equipment. Check the rating on the supplied unit before installation.
