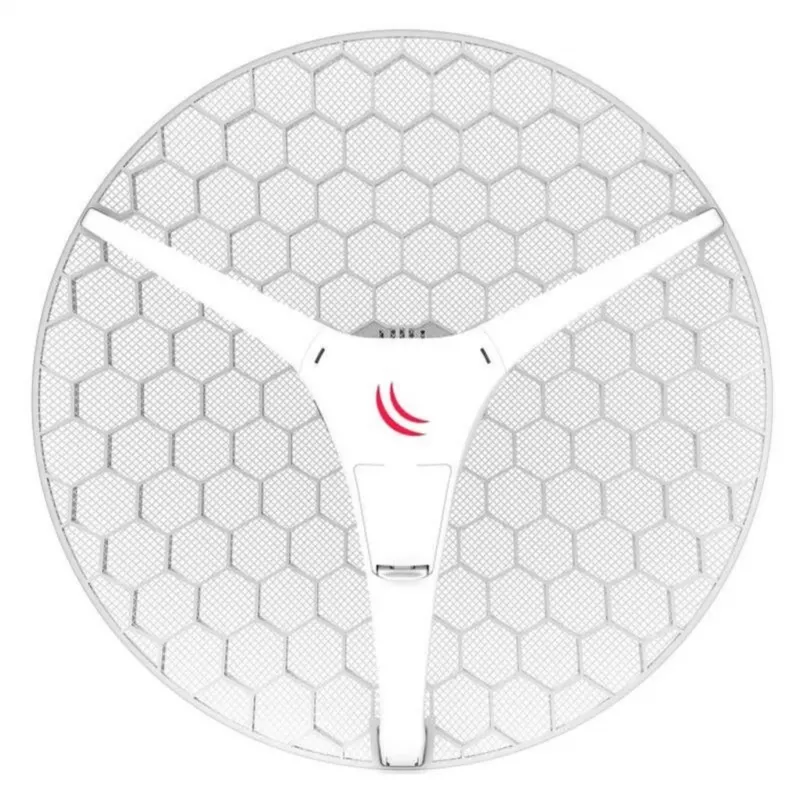

MikroTik LHG XL 5 AC Dual Chain Long Range 27dBi 5GHz CPE/Ponto-a-Ponto - antena integrada

The MikroTik LHG XL 5 AC is a high-performance, long-range wireless CPE and point-to-point bridge designed for 5 GHz operation. Featuring a 27 dBi integrated dual-polarization grid antenna and 2x2 MIMO dual-chain technology, it delivers reliable connectivity over distances of up to 30+ km. Powered by a quad-core IPQ-4018 CPU and RouterOS Level 3, this device is ideal for ISPs, rural deployments, and enterprise backhaul.

Advantages

Exceptional 27 dBi antenna gain for extreme range; dual-chain MIMO for improved throughput and reliability; compact and weather-resistant design with IP rating; passive PoE support for flexible installation; includes all necessary accessories for quick deployment.

Suitable for

• Wireless internet service providers (WISPs) for customer premises equipment
• Point-to-point links between buildings or remote sites
• Backhaul connections for surveillance or network extension
• Rural and remote area connectivity

Key specifications

• Wireless Standard: 802.11a/n/ac
• Frequency Band: 5 GHz
• Antenna Gain: 27 dBi
• Antenna Type: Integrated Dual-Polarization Grid
• MIMO: 2x2
• Ethernet Ports: 1x Gigabit (10/100/1000)
• CPU: IPQ-4018 (4 cores, 716 MHz)
• RAM: 256 MB
• Flash Storage: 16 MB
• PoE Input: Passive PoE 10-30V
• Max Power Consumption: 8 W
• Operating System: RouterOS Level 3
• Beamwidth: 7°
• Operating Temperature: -40°C to 70°C
• Max Throughput: 867 Mbps

Recommendations

For optimal performance, pair with a compatible MikroTik router or switch. Ensure clear line of sight for point-to-point links. Use shielded outdoor-rated Ethernet cables for outdoor installations.
