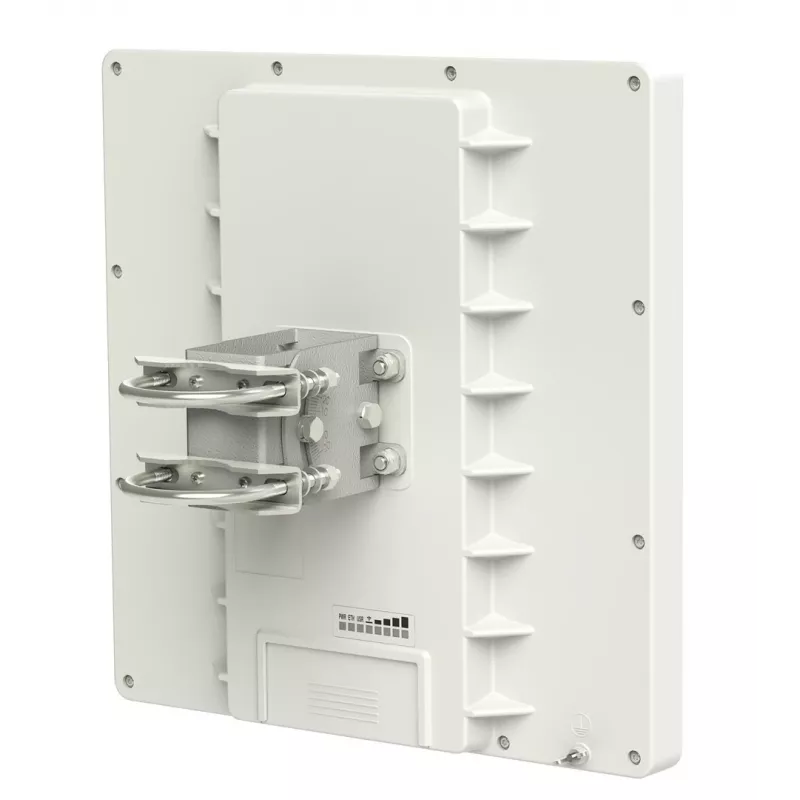

MikroTik QRT 5 branco Power over Ethernet (PoE)

The MikroTik QRT 5 is a high-performance outdoor wireless CPE and bridge device designed for long-range point-to-point and point-to-multipoint links. Operating exclusively in the 5 GHz band with 802.11a/n/ac standards, it delivers reliable connectivity with a powerful 24 dBi dual-polarization antenna. The integrated Gigabit Ethernet port supports Passive PoE (10-30V DC) for flexible powering, making it ideal for ISP backhaul, surveillance, and rural deployments.

Advantages

With a 24 dBi antenna gain and 2x2 MIMO technology, the QRT 5 achieves exceptional range and throughput. The outdoor UV-resistant plastic enclosure ensures durability in harsh environments, while the included pole mounting kit simplifies installation. RouterOS Level 4 provides advanced routing and security features, and the device supports up to 10W power consumption for energy efficiency.

Suitable for

• Wireless Internet Service Providers (WISPs) for last-mile connectivity
• Long-distance point-to-point bridging between buildings
• Surveillance system backhaul for remote cameras
• Rural and remote area network extension

Key specifications

• Wireless Standard: 802.11a/n/ac
• Frequency Band: 5 GHz
• Antenna Gain: 24 dBi (Dual Polarization)
• Ethernet Ports: 1x Gigabit Ethernet (10/100/1000 Mbps)
• PoE Input: Passive PoE (10-30V DC)
• CPU: QCA9557 (720 MHz)
• RAM: 128 MB DDR2
• Storage: 16 MB Flash
• Operating System: RouterOS Level 4
• Max Power Consumption: 10 W
• Wireless Chip Model: QCA9882
• MIMO: 2x2 MIMO
• Beamwidth: 10° (Azimuth and Elevation)
• Operating Temperature: -30°C to 70°C
• Enclosure Type: Outdoor UV Resistant Plastic
• Mounting: Pole Mounting Kit Included

Recommendations

For optimal performance, pair the QRT 5 with a compatible MikroTik router or switch. Ensure proper alignment of the antenna for maximum signal strength. Use shielded CAT5e or higher cable for PoE connections.
