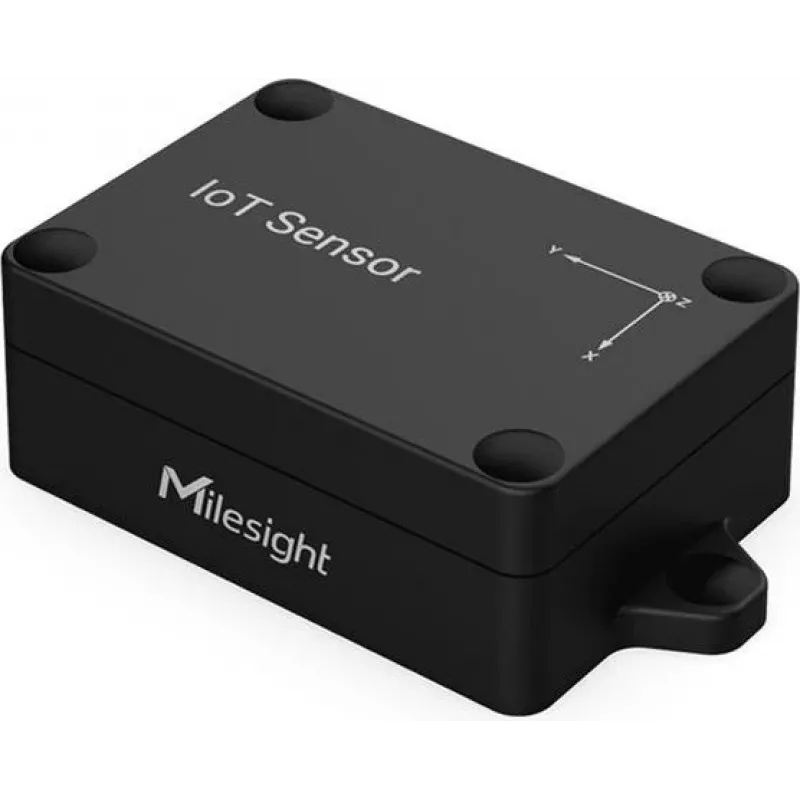

Milesight IoT LoRaWAN sensor de inclinação ultrassónico EM310 (EM310-TILT-868M)

The Milesight IoT EM310-TILT-868M is a professional-grade LoRaWAN sensor combining ultrasonic distance measurement and tilt angle detection in a single, robust device. Designed for industrial and environmental monitoring, it provides accurate, real-time data for applications such as tank level monitoring, waste bin fill-level detection, structural tilt monitoring, and more. With its IP67-rated enclosure and long battery life, the EM310 is built for reliable outdoor and harsh environment use.

Advantages

Dual sensing capability (ultrasonic + tilt) reduces the need for multiple sensors. LoRaWAN connectivity ensures long-range, low-power data transmission. Configurable via NFC or downlink for flexible deployment. IP67 protection and wide operating temperature range (-30°C to +70°C) guarantee durability in extreme conditions. Up to 5 years of battery life minimizes maintenance.

Suitable for

• Industrial tank level monitoring
• Waste bin fill-level detection
• Structural tilt monitoring (e.g., walls, poles)
• Smart agriculture (e.g., water tank levels)
• Environmental monitoring in remote areas

Key specifications

• Sensor Type: Ultrasonic & Tilt
• Connectivity: LoRaWAN (868 MHz)
• Ultrasonic Range: 0.3 - 4.5 m
• Ultrasonic Accuracy: ±(1 cm + 0.3% * F.S)
• Tilt Angle Range: -90° to +90°
• Tilt Accuracy: ±1°
• Power: 2 × ER14505 Li-SOCl2 batteries (2 x 2700 mAh)
• Battery Life: Up to 5 years
• Ingress Protection: IP67
• Operating Temperature: -30°C to +70°C
• Operating Humidity: 0% to 90% RH (non-condensing)
• Configuration: NFC, LoRaWAN Downlink
• Mounting: Wall Mounting
• Material: ABS+PC
• LoRaWAN Class: Class A/C
• D2D Communication: Supported
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, mount the sensor on a stable surface with a clear line of sight to the target. Use the Milesight IoT configuration tool via NFC for easy setup. Ensure the LoRaWAN gateway is within range and configured for 868 MHz operation.
