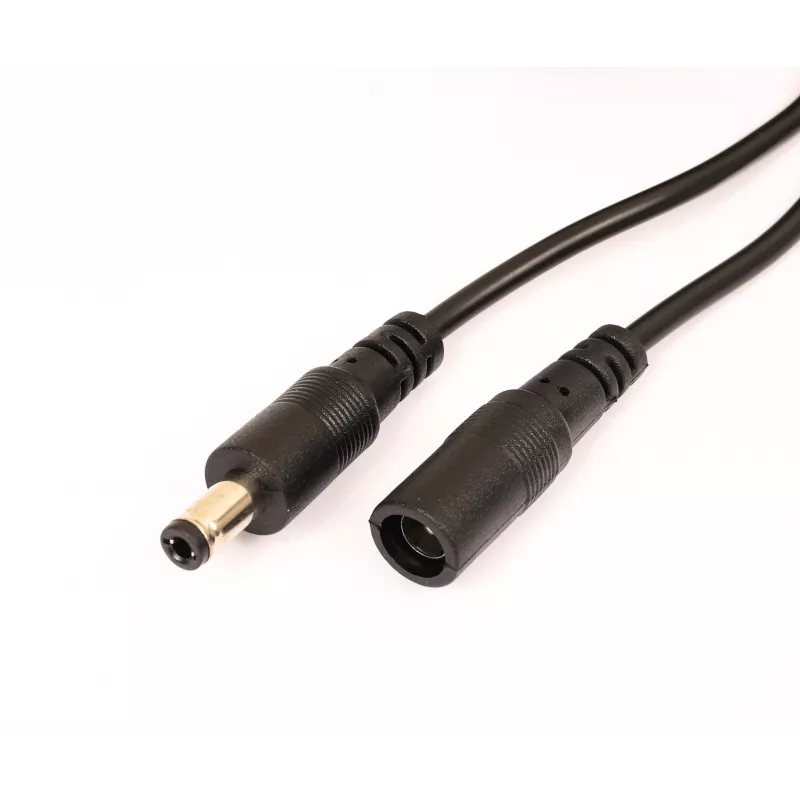

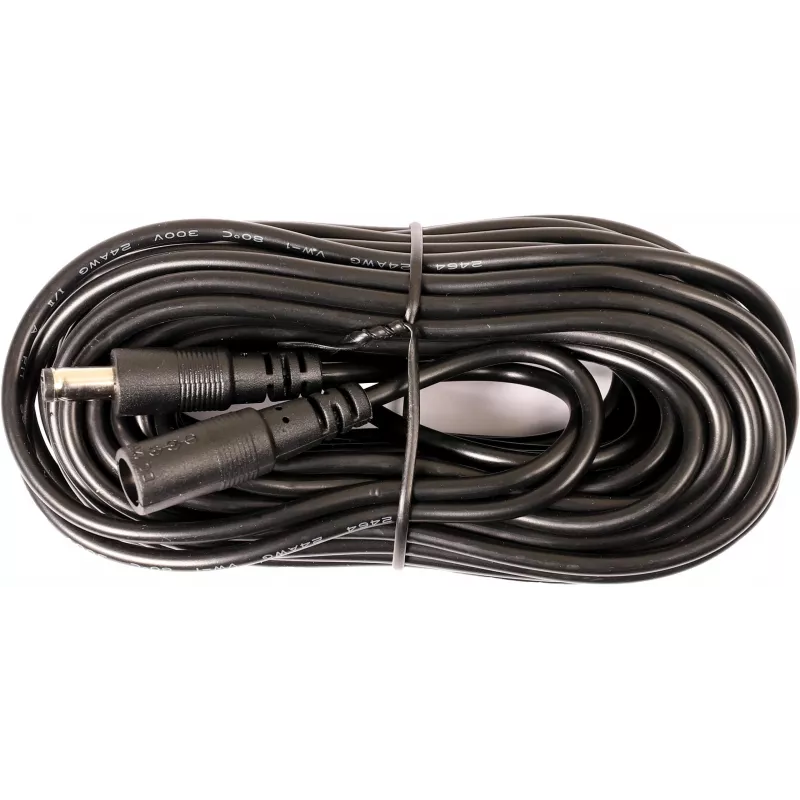

MITON KWG-20DC Cabo de Alimentação DC 2x0,20mm² Branco 50V 1,5A

The MITON KWG-20DC is a high-quality DC power cable designed for low voltage applications. With 2 cores of 0.20 mm² each, stranded copper conductors, and PVC insulation, this cable ensures reliable power transmission for CCTV, LED lighting, alarm systems, and other low voltage devices. Its white PVC outer sheath provides durability and flexibility, making it easy to install in tight spaces. Rated for 50V and 1.5A, it operates in temperatures from -20°C to +70°C and is self-extinguishing for added safety. Compliant with RoHS and CE standards.

Advantages

Flexible and easy to route, this cable offers excellent conductivity with copper conductors. The self-extinguishing PVC jacket enhances safety, while the compact 3.0 mm outer diameter allows for discreet installation. Ideal for both indoor and protected outdoor use.

Suitable for

• Low voltage DC power connections
• CCTV camera systems
• LED lighting installations
• Alarm and security systems
• General low voltage electronics

Key specifications

• Cable type: DC Power Cable
• Number of cores: 2
• Conductor material: Copper (stranded)
• Conductor cross-section: 2 x 0.20 mm²
• Insulation: PVC
• Outer sheath: PVC
• Cable colour: White
• Rated voltage: 50 V
• Max current: 1.5 A
• Operating temperature: -20°C to +70°C
• Outer diameter: approx. 3.0 mm
• Shielding: Unshielded
• Fire resistance: Self-extinguishing
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure the cable is not subjected to mechanical stress beyond its flexibility rating. Suitable for use with compatible DC power supplies and devices. Always verify voltage and current requirements before installation.
