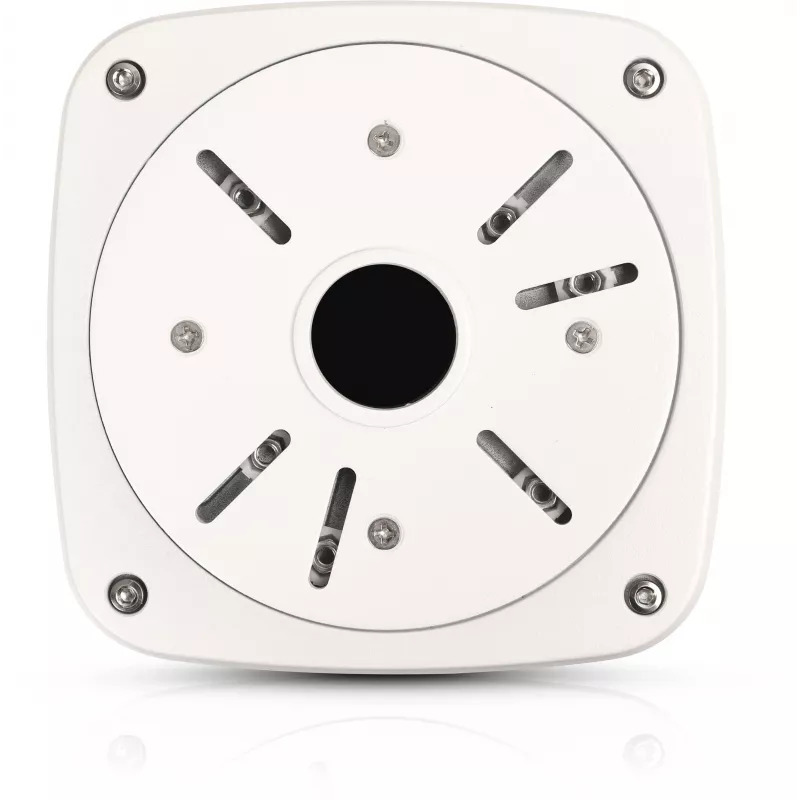

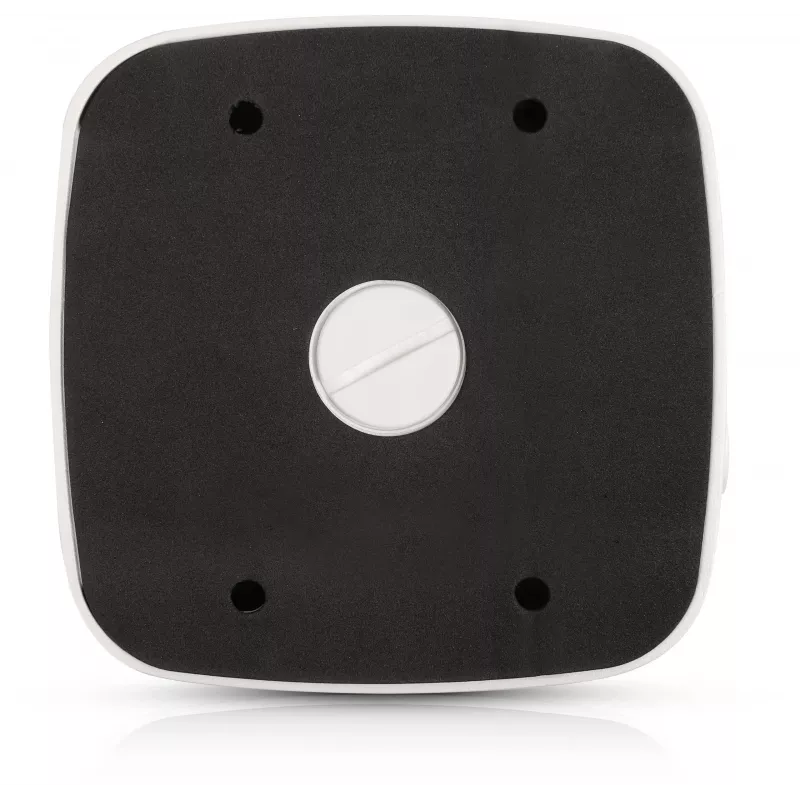

MITON P120U Caixa de Derivação de Sobrepor IP44 Branca 80x80x40mm

The MITON P120U is a high-quality junction box designed for surface mounting, offering reliable protection for electrical connections in indoor and protected outdoor environments. Manufactured from durable polypropylene (PP), this box features an IP44 rating, safeguarding against dust ingress and water splashes. Its compact dimensions of 80 x 80 x 40 mm make it ideal for installations where space is limited.

Advantages

This junction box provides a secure and weather-resistant enclosure for cable joints and terminations. The snap-on lid ensures quick and easy access, while the eight knock-out cable entries offer flexibility for various wiring configurations. The self-extinguishing material and 650°C glow wire test compliance enhance safety, making it suitable for demanding applications.

Suitable for

• Surface-mounted electrical installations in residential and commercial buildings
• Protecting cable connections in garages, basements, and covered outdoor areas
• Use with lighting circuits, power outlets, and low-voltage systems

Key specifications

• Product Type: Junction Box
• Mounting Type: Surface Mount
• Ingress Protection: IP44
• Material: Polypropylene (PP)
• Colour: White
• External Dimensions (L x W x H): 80 x 80 x 40 mm
• Number of Cable Entries: 8 (knock-out)
• Lid Type: Snap-on
• Operating Temperature Range: -25°C to +60°C
• Glow Wire Test Temperature: 650°C
• Halogen-Free: Yes
• Rated Voltage (Max): 400V
• Standard Compliance: PN-EN 60670-1
• Flammability Rating: Self-extinguishing
• Impact Resistance: IK07

Recommendations

For optimal performance, ensure that all cable entries not in use are properly sealed to maintain the IP44 rating. This junction box is compatible with standard cable glands and should be installed by a qualified electrician in accordance with local regulations.
