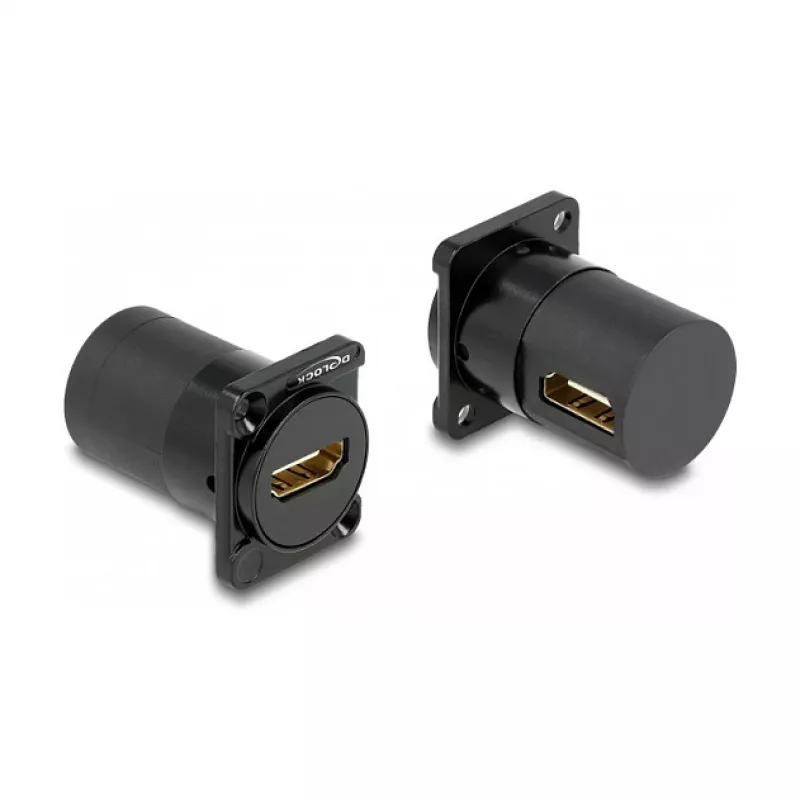

Módulo D-Type DeLOCK HDMI conector fêmea para conector fêmea 90° angular preto

The DeLOCK D-Type Module HDMI female to female 90° angled in black is a compact panel module designed for installation in panels or enclosures with D-type openings. It provides an HDMI female-to-female connection with a 90° angled orientation to save space and allow flexible cable routing in confined installations.

Advantages

This module offers a space-saving 90° angled HDMI coupling that facilitates connections in tight areas and behind equipment. Its D-type module form factor enables secure mounting in panels or cases with D-type cutouts. The black finish ensures a discreet appearance when integrated into professional or consumer setups.

Suitable for

• Integrating HDMI-equipped devices into rack panels and equipment housings
• Space-constrained installations where straight connectors interfere with nearby components
• Custom AV or multimedia enclosures requiring a panel-mounted HDMI extension

Key specifications

• Connector 1: HDMI female
• Connector 2: HDMI female
• Orientation: 90° angled
• Dimensions (W x D x H): 37 mm x 31 mm x 25 mm
• Colour: Black
• Sold as: 1 unit

How to use

Install the module into a compatible D-type panel opening or case cutout and secure it according to the enclosure's mounting method. Connect HDMI cables to each female HDMI port, ensuring the 90° orientation aligns with the desired cable routing. Use with HDMI-capable devices and cables that meet your signal and resolution requirements.

Recommendations

Ensure the panel or case has the correct D-type opening before installation. Use HDMI cables of appropriate length and quality for the required video/audio performance, and avoid excessive mechanical stress on the angled connector to prevent damage.
