Módulo de altifalante Fanvil PA2-KIT

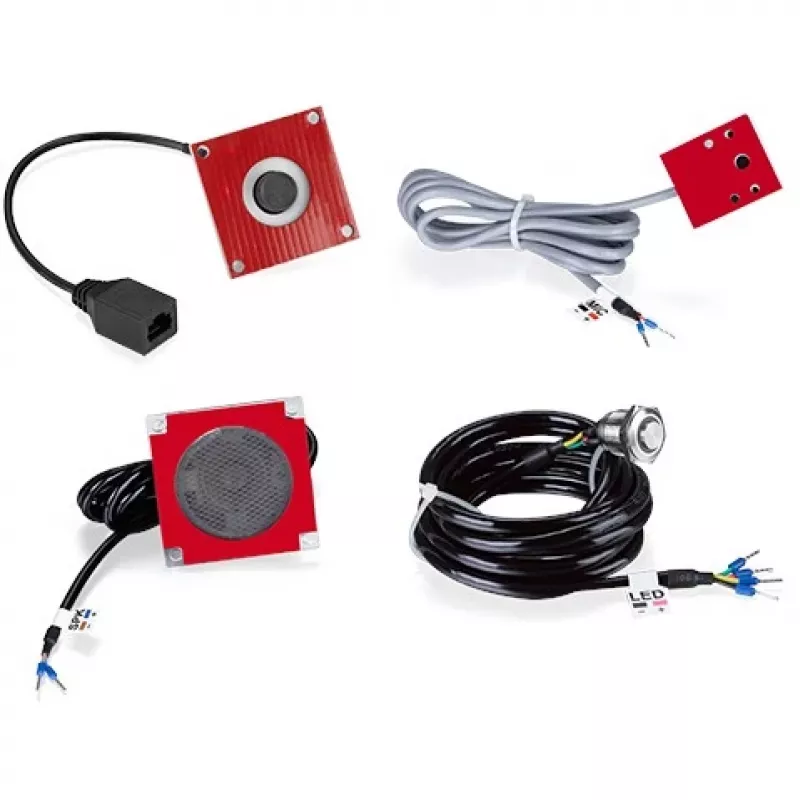

The Fanvil PA2-KIT accessory kit is designed to work with the PA2 gateway and Fanvil SIP intercoms. The kit contains a 720P IP camera, a door open button, a microphone and a speaker. The modules are available in black, grey and red and come in a pack of four units suitable for multiple installations. The kit provides IP-based audio and video for intercom systems and is protected against dust and moisture; it also features an LED status indicator and requires no complicated settings.

Advantages

The PA2-KIT combines camera, audio input and output, and a door control button in a single accessory set compatible with Fanvil PA2 gateway and SIP intercoms. Its IP 720P camera delivers video for visitor identification while the integrated microphone and speaker provide two-way audio. Devices are rated for dust and moisture protection and include an LED indicator for simple status monitoring. The kit comes in a four-unit pack and in three color options to match installation requirements.

Suitable for (tasks / use cases)

• Adding audio and video to Fanvil PA2 gateway and SIP intercom installations
• Small to medium residential or commercial entry points
• Multidwelling or multi-entrance sites requiring multiple accessory modules

Key specifications

• Compatibility: Fanvil PA2 gateway and Fanvil SIP intercoms
• Camera: 720P IP camera included
• Audio: integrated microphone and speaker
• Controls: door open button included
• Protection: dust and moisture resistant
• Indicator: LED status indicator
• Pack contents: 4 units per pack
• Colors: black, grey, red

How to use

Connect each PA2-KIT module to the Fanvil PA2 gateway or compatible SIP intercom following the gateway’s installation manual. Position the 720P camera for clear view of the entry area, mount the microphone and speaker for proper sound pickup and output, and install the door open button within reach of visitors. Power and network can be provided according to the gateway specifications; once connected, LED indicators will show module status. No complex configuration is required beyond standard device registration with the PA2 gateway or SIP system.

Recommendations

Install modules in weather-protected locations when possible, ensure network and power cabling meet the gateway’s requirements, and test audio and video after installation to confirm clear sound and correct camera framing.
