Conector coaxial BNC Microconnect BNC58M cromado 7g

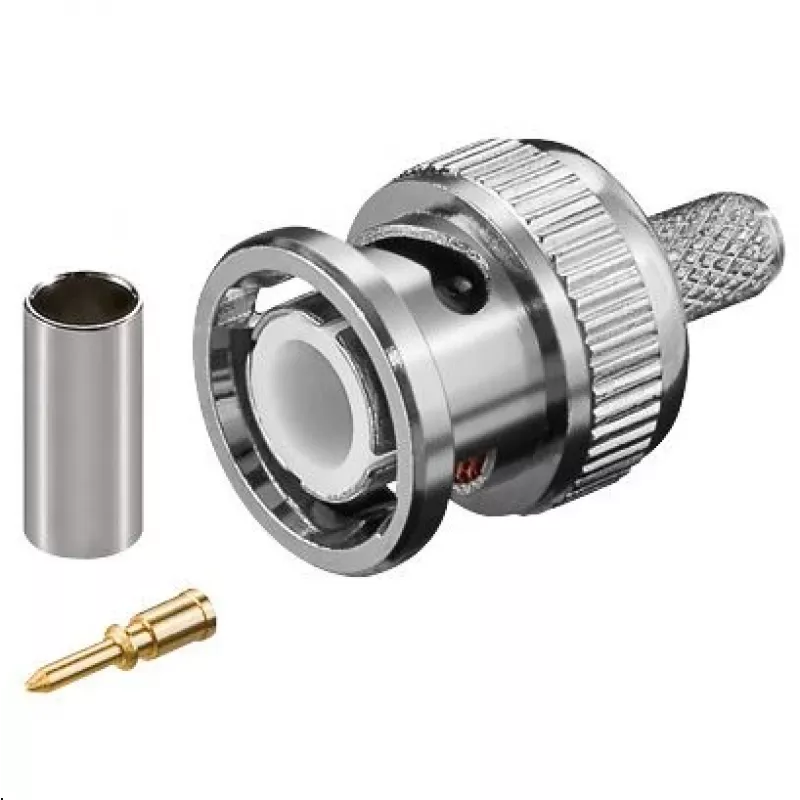

The MicroConnect BNC58M is a BNC crimp plug designed for RG58 coaxial cable. It has a chrome finish and a gold-plated center pin for reliable signal contact. Compact and lightweight at approximately 7 g, this connector is intended for terminating and connecting coaxial cables in audio, video and RF applications.

Advantages

The BNC58M offers a standard BNC interface compatible with RG58 cable and related equipment. Its chrome plating provides corrosion resistance while the gold pin improves conductivity and long-term contact performance. The connector’s small size and low weight make it convenient for installations where space is limited.

Suitable for

• Terminating RG58 coaxial cable
• Audio and video signal connections
• RF test equipment and lab setups
• Broadcast and CCTV installations using RG58

Key specifications

• Type: BNC crimp plug
• Compatible cable: RG58
• Finish: Chrome
• Center pin: Gold-plated
• Weight: 7 g (approx.)
• Manufacturer: MicroConnect
• MPN: BNC58M
• EAN: 5711045232756

How to use

Prepare the RG58 cable by stripping the outer jacket, braid and dielectric according to the connector manufacturer’s recommended dimensions. Insert the cable into the BNC58M so the centre conductor seats in the gold pin and the braid makes contact with the connector body. Crimp the connector using the appropriate crimping die for this BNC crimp plug. Verify mechanical stability and electrical continuity after assembly.

Recommendations

Use a calibrated crimping tool sized for BNC crimp plugs and check that the cable preparation matches the connector’s required strip lengths. Avoid excessive force when crimping to prevent damage to the centre pin and ensure proper signal transmission.
