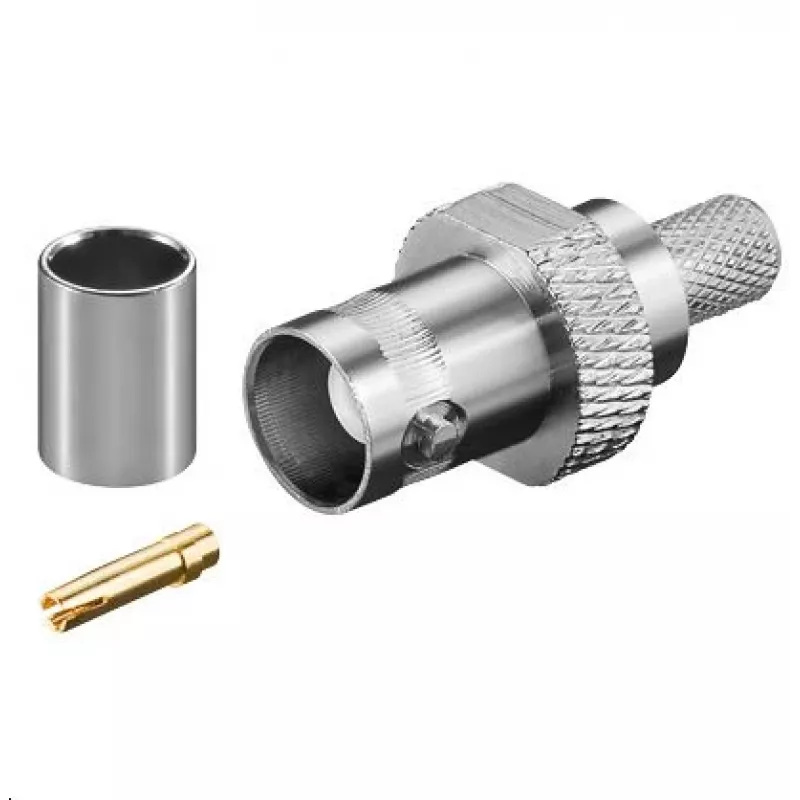

Conector coaxial BNC MicroConnect BNC59F, fêmea, prateado

MicroConnect BNC59F is a female coaxial BNC connector with a silver finish designed for reliable RF and video connections. It provides a bayonet coupling that secures signal lines in CCTV, broadcast, instrumentation and test equipment applications. The connector is compact and built for durability to maintain stable signal transmission where BNC terminations are required.

Advantages

The silver-finished female BNC connector offers a secure bayonet lock for quick mating and unmating, ensuring consistent electrical contact. Its compact design allows installation in space-constrained setups, and the durable construction reduces the risk of mechanical wear during repeated use.

Suitable for

• CCTV camera connections
• Broadcast and video equipment
• RF signal cabling
• Instrumentation and test measurement devices

Key specifications

• Connector type: Female BNC (bayonet coupling)
• Finish: Silver
• Intended signals: RF and composite video
• Form factor: Compact coaxial connector

How to use

Align the male BNC plug with the female bayonet slots, push the connector together and rotate until the bayonet lugs lock. Ensure proper cable termination and shielding before mating to maintain signal integrity. For removal, pull back, rotate and disengage the bayonet coupling.

Recommendations

Use the connector with compatible coaxial cables and properly matched impedance systems to avoid signal reflections. Inspect contacts periodically for corrosion or damage and replace the connector if mechanical wear affects connection stability.
