Conector coaxial Microconnect BNC-HDSDI-PLUG BNC HDSDI macho

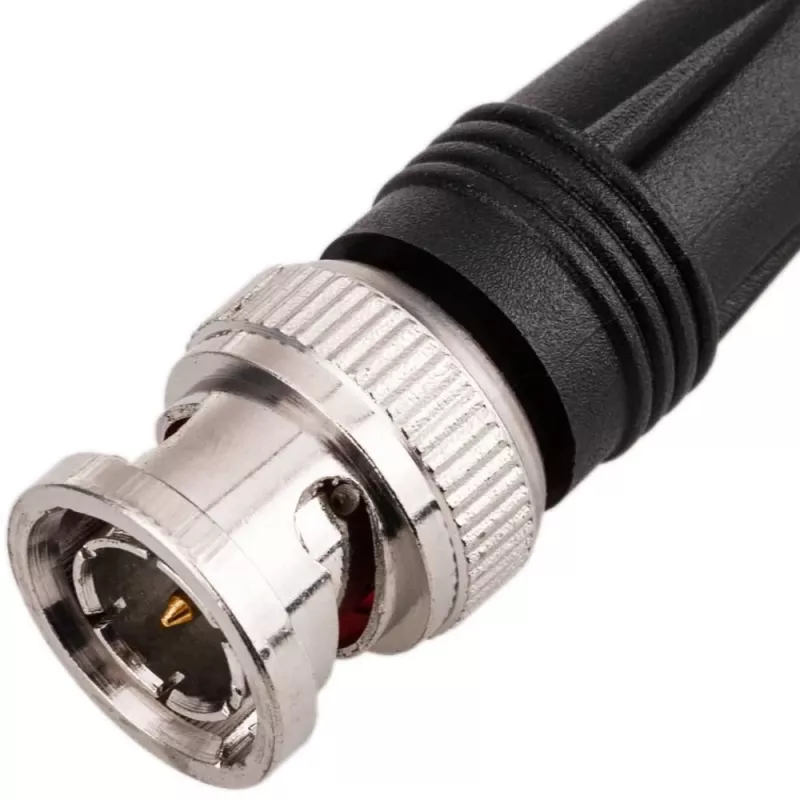

The MicroConnect BNC-HDSDI-PLUG is a high-quality BNC 12G male crimp connector designed for HD-SDI coaxial applications. It provides reliable signal transmission for professional video equipment and is suitable for both studio and field use thanks to its robust construction and durable materials.

Advantages

This BNC 12G male crimp connector delivers stable high-definition signal transfer with low loss and good shielding. The connector is built for repeated use in professional environments and offers compatibility with standard HD-SDI cabling formats. Its crimp-style termination ensures a secure mechanical and electrical connection.

Suitable for

• Professional video cameras and HD-SDI monitors
• Broadcast and studio signal routing
• Field production and ENG/EFP setups
• Installation and repair of coaxial HD-SDI cabling

Key specifications

• Type: BNC 12G male crimp connector
• Model: MicroConnect BNC-HDSDI-PLUG (MPN: BNC-HDSDI-PLUG)
• Application: HD-SDI coaxial signal transmission
• EAN: 5715063475416

How to use

Prepare the coaxial cable by stripping the outer jacket, braid, dielectric, and inner conductor to the recommended lengths for the crimp connector. Insert the cable into the connector body so the center conductor seats in the pin and the braid makes contact with the body. Use the appropriate crimp tool and die for the connector size to crimp the ferrule and secure the assembly. Verify electrical continuity and mechanical stability after crimping.

Recommendations

Use the connector with cable types and impedances specified for HD-SDI systems (typically 75 Ω). Select a compatible crimp tool and dies, and perform a continuity/shield test after installation. Replace connectors showing corrosion or mechanical damage to maintain signal integrity.
