Módulo de botão de chamada Ritto 1840120

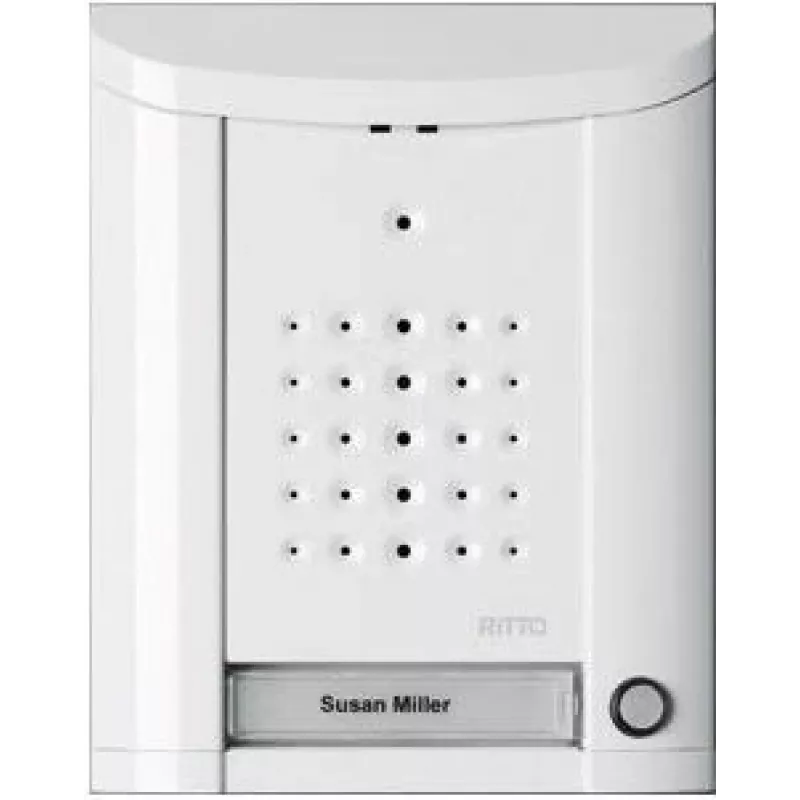

The Call button module Ritto 1840120 by Schneider Electric is a metal accessory designed for integration with compatible intercom systems. Finished in white and built to fit into a variety of wall-mounted panels, this module provides a tactile push-button interface for initiating calls and alerts. Its compact dimensions — 141 mm wide, 22 mm deep and 178 mm high — make it suitable for vertical installations where a slim profile and durable construction are required.

Advantages

The metal construction offers mechanical robustness and long-term resistance to wear in frequent-use environments. The white surface provides a neutral aesthetic that blends with most residential and commercial entrance panels. The module’s narrow depth allows installation in slim housings without protruding significantly from the mounting surface. Designed for clear actuation, the button supports reliable user interaction in everyday use.

Suitable for

Key specifications

How to use

Mount the call button module into the compatible intercom frame according to the intercom system’s installation instructions. Ensure power to the intercom is switched off before fitting the module. Connect the module’s wiring following the system’s terminal layout, secure it within the frame, and restore power to verify correct operation. Press the button to initiate a call or signal as defined by the connected intercom unit.

Recommendations

For reliable operation, use the module within the environmental conditions specified by your intercom system and avoid exposure to direct water ingress. When replacing an existing module, match the mechanical dimensions and mounting points to ensure proper fit. Periodically check the button for mechanical wear and clean the surface with a soft, dry cloth; avoid abrasive cleaners or solvents.
