Módulo de botões de chamada Ritto 1875470

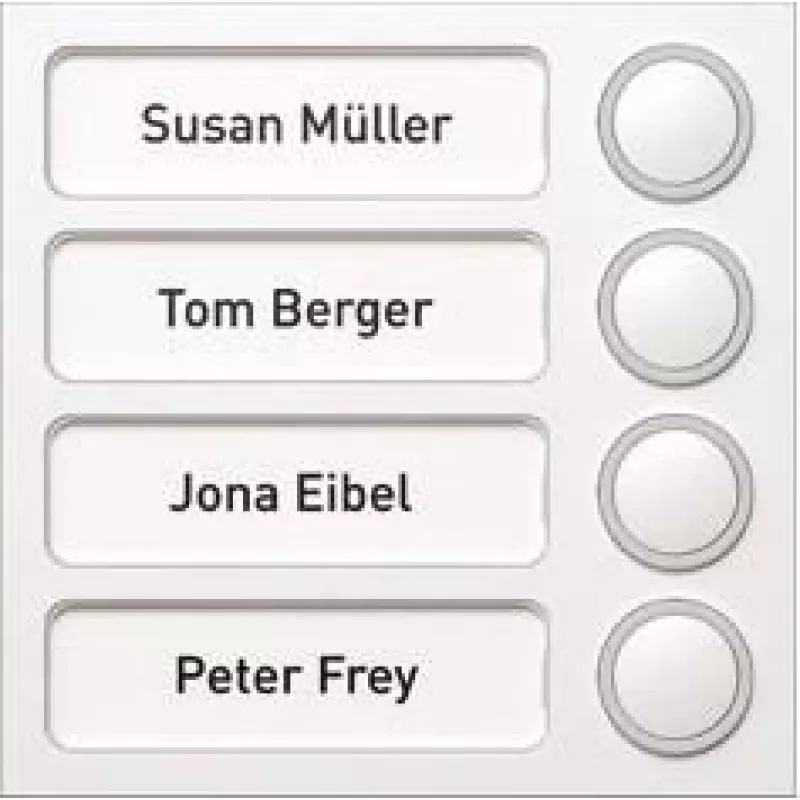

The Ritto 1875470 call button module is a compact component intended for use in intercom and door communication systems. Finished in white with a minimalist aesthetic, the module measures 95 mm wide, 95 mm high and 33 mm deep, offering a slim profile that fits into many entrance panel layouts. It provides a tactile call button interface to initiate visitor calls and integrates with compatible Ritto systems to deliver reliable signaling and straightforward wiring during installation.

Advantages

The module combines a slim form factor with clear mechanical operation, allowing it to blend with modern entrance panels without protruding excessively. Its neutral white finish facilitates visual integration into residential and commercial installations. Designed for compatibility with Ritto intercom environments, the unit supports consistent tactile feedback and dependable switching action to signal the connected audio/video or door entry control equipment.

Suitable for

Key specifications

How to use

Install the call button module into the designated position in the entrance panel frame according to the intercom system's installation guide. Connect the module wiring to the corresponding terminals of the Ritto intercom unit or control board, ensuring power is disconnected while making connections. Once mounted and wired, restore power and test the button to confirm it sends a call signal to indoor stations and that indicators or chimes on the system respond correctly.

Recommendations

For reliable operation, verify compatibility with your specific Ritto intercom model before installation and follow the manufacturer's wiring diagram. Use appropriate tools for mounting to avoid damaging the housing, and perform an operational test after installation to ensure successful integration with door release and indoor stations.
