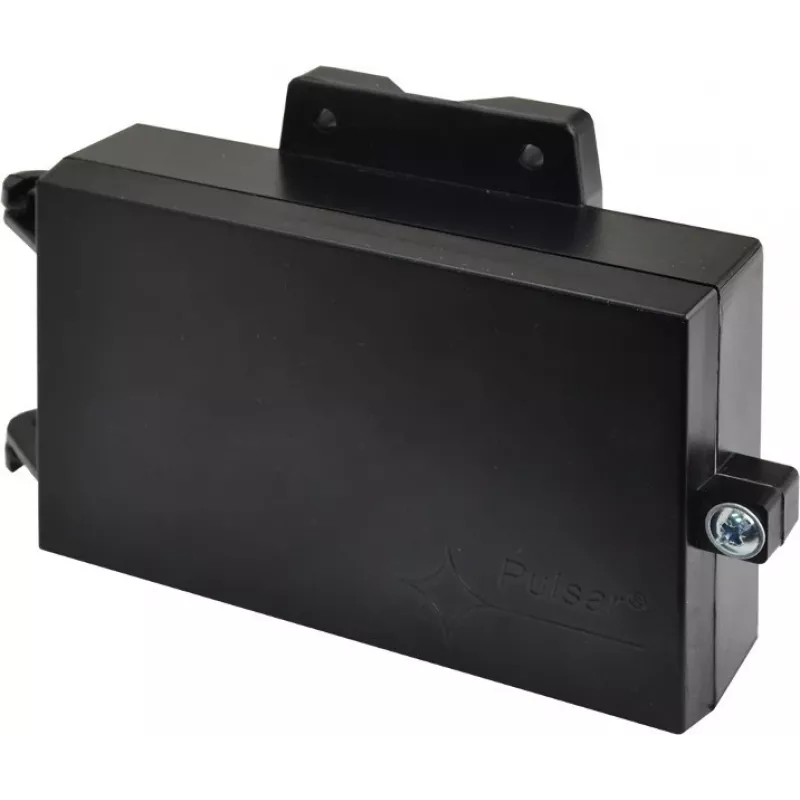

Módulo de fusíveis PULSAR AWZ592 em caixa, 8 canais, 10A

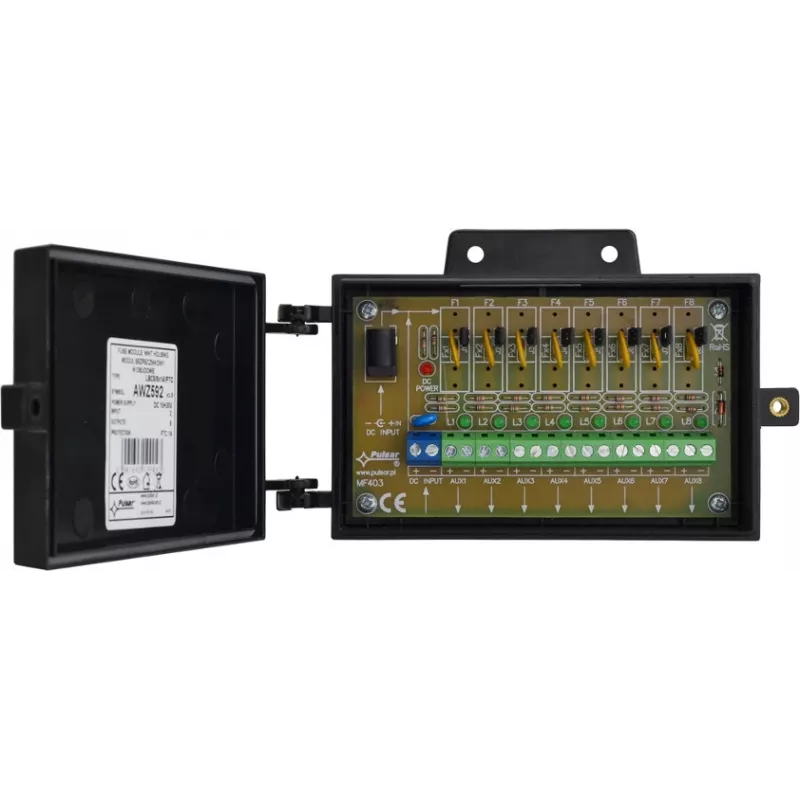

The PULSAR AWZ592 is a professional-grade fuse module housed in a robust metal enclosure, designed for reliable overcurrent protection in CCTV, access control, and alarm systems. With 8 individually fused outputs, it ensures safe power distribution for your security and automation devices.

Advantages

• 8 independent channels with 1A glass fuses per channel for precise protection
• Total output current up to 10A, suitable for multiple devices
• Wide input voltage range (10-30V DC) accommodates various power supplies
• Durable steel sheet enclosure with powder coating for long-lasting performance
• Surface-mountable design simplifies installation on walls or flat surfaces

Suitable for

• CCTV systems requiring multiple camera power feeds
• Access control systems with electric locks and readers
• Alarm and security panels needing distributed power
• Any low-voltage DC application needing fused protection

Key specifications

• Number of Outputs: 8 channels
• Input Voltage: 10-30V DC
• Output Voltage: Equal to input voltage (Vout = Vin)
• Max Individual Output Current: 1A per channel
• Max Total Output Current: 10A
• Fuse Type: Glass fuse 5x20mm, 1A default
• Protection: Short-circuit, overload (via fuses)
• Enclosure Material: Steel sheet, powder coated
• Mounting: Surface mount (wall)
• Connectors: Screw terminals
• IP Rating: IP20
• Operating Temperature: -10°C to +40°C

Recommendations

For optimal performance, use with a regulated DC power supply within the specified voltage range. Ensure total load does not exceed 10A. Replace blown fuses with identical 5x20mm 1A glass fuses only.
