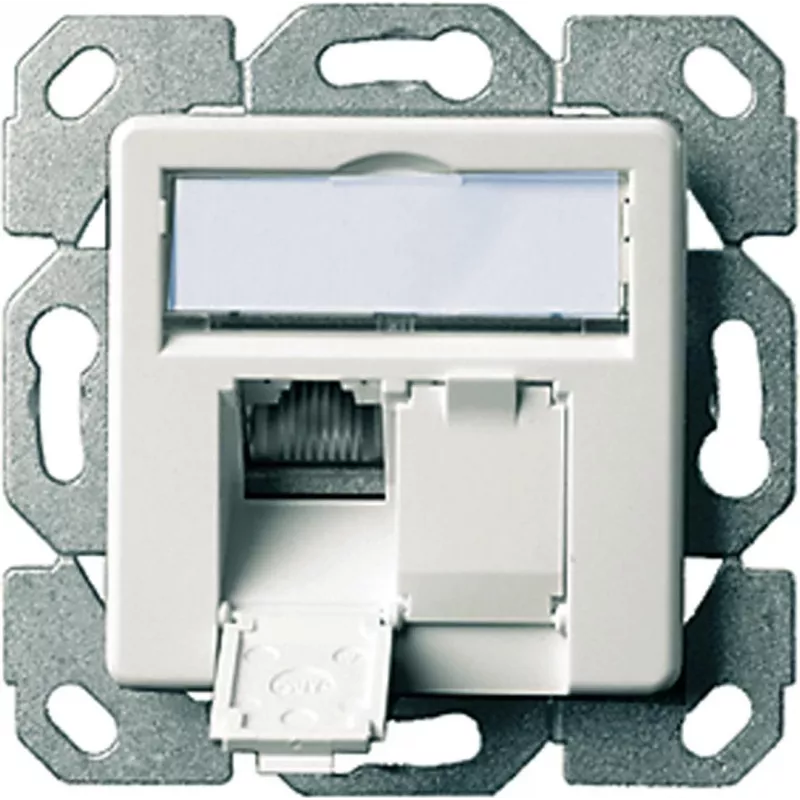

Módulo de ligação de dados Telegärtner AMJ45 Cat5e 2xRJ45 blindado branco

The Telegärtner AMJ45 data outlet module is a high-performance, shielded Cat.5e flush-mount module with two RJ45 ports. Designed for professional network installations, it offers reliable Gigabit Ethernet transmission and supports PoE/PoE+ for powering devices such as IP cameras and access points. The die-cast zinc housing ensures robust shielding and durability, while LSA-Plus IDC terminals simplify fast and secure termination.

Advantages

Fully shielded die-cast zinc housing for excellent EMI protection; supports PoE and PoE+ (IEEE 802.3af/at); compatible with TIA/EIA 568A and 568B wiring schemes; gold-plated contacts for reliable connectivity; suitable for solid and stranded wires (AWG 24/1–22/1 solid, AWG 26/7–22/7 stranded); high insertion cycle life (>750 cycles).

Suitable for

• Structured cabling in offices, data centers, and industrial environments
• Wall outlets for Gigabit Ethernet networks
• Power over Ethernet applications (IP cameras, VoIP phones, wireless access points)
• Flush-mount installations using UPk compatible frames

Key specifications

• Product Type: Data Outlet Module
• Network Category: Cat.5e
• Number of Ports: 2
• Connector Type: RJ45
• Shielding: Shielded (die-cast zinc housing)
• Mounting Type: Flush-mount (UPk compatible)
• Termination Type: LSA-Plus (IDC terminals)
• Wiring Scheme: TIA/EIA 568A/B
• Transmission Performance: Up to 100 MHz (Gigabit Ethernet compatible)
• PoE Support: PoE, PoE+ (IEEE 802.3af/at)
• Housing Material: Die-cast zinc
• Contact Material: Phosphor bronze
• Contact Plating: Gold over nickel
• Wire Gauge Support: AWG 24/1–22/1 (solid), AWG 26/7–22/7 (stranded)
• Insertion Cycles: > 750
• Operating Temperature: -40°C to +70°C
• Certifications: ISO/IEC 11801, EN 50173, ANSI/TIA-568-C.2

Recommendations

For optimal performance, use with Cat.5e or higher twisted-pair cable and ensure proper grounding of the shielded module. Pair with a compatible flush-mount frame (e.g., Telegärtner AMJ45 series) for a professional finish.
