Módulo Keystone DeLOCK 86308

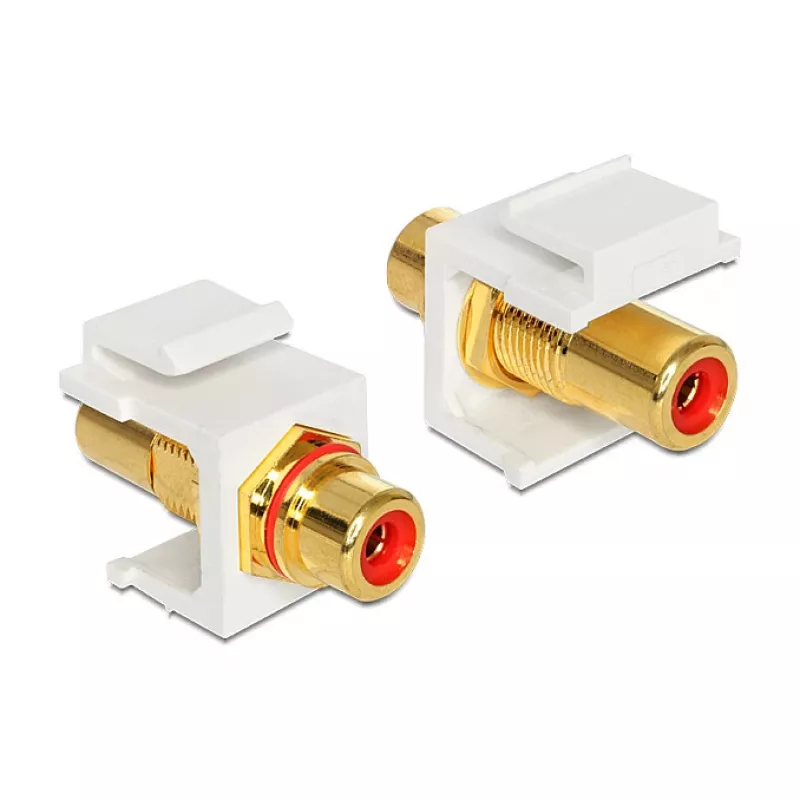

The DeLOCK 86308 keystone module provides two RCA connectors in a compact standardized keystone housing, allowing extension or connection of coaxial audio/video cables. Its small dimensions (16.3 mm width, 33 mm depth, 22.3 mm height) and snap-in compatible shape make it suitable for installation in keystone patch panels, faceplates or surface-mount boxes. The module is finished in red and is intended for reliable audio and video signal connections in home or professional setups.

Advantages

The module uses standardized keystone dimensions for easy snap-in mounting and replacement. Two RCA connectors offer a simple, widely compatible interface for analog audio and composite video. Its compact form factor saves space in panels and wall plates while providing a colour-coded connector for quick identification.

Suitable for

• Extending or joining coaxial/RCA audio and composite video cables
• Installation in keystone patch panels and faceplates
• Home theater and professional audio/video setups

Key specifications

• Brand: DELOCK
• Model / MPN: 86308
• EAN: 4043619863082
• Connector 1: RCA
• Connector 2: RCA
• Product colour: Red
• Dimensions (W × D × H): 16.3 mm × 33 mm × 22.3 mm

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect RCA plugs from cables or devices to the front and back RCA sockets as required. Ensure connections are secure and, when installing into panels or wall plates, fasten the panel or plate according to the enclosure manufacturer’s instructions.

Recommendations

Use this keystone module indoors in dry environments and avoid excessive bending or strain on connected cables. Match cable types (RCA/coaxial) and signal formats (analog audio or composite video) for correct operation.
