Módulo Keystone DeLOCK 86309

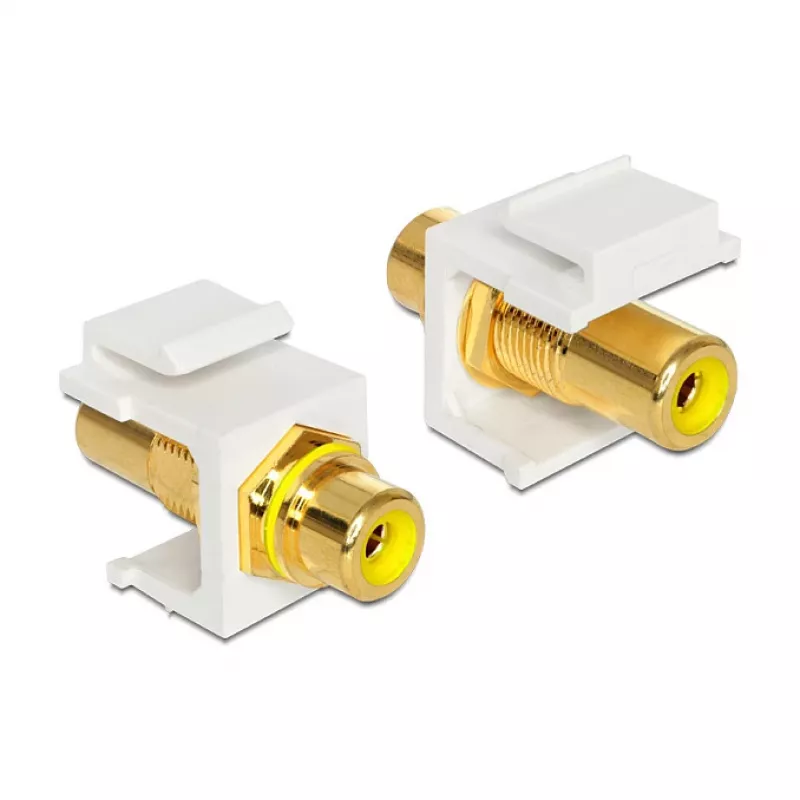

The DeLOCK 86309 keystone module provides RCA connectors for audio and video signal extension. Its standardized keystone dimensions allow snap-in mounting in keystone patch panels, face plates or surface-mount boxes. The module is compact and designed for installation in standard keystone wall plates; its yellow colour improves visibility and identification.

Advantages

The module uses standard RCA connectors for reliable analogue audio and video transmission. Its compact, standardized keystone form factor enables tool-free snap-in mounting in compatible faceplates and patch panels. The bright yellow housing makes ports easy to identify during installation and maintenance.

Suitable for

• Home theatre RCA audio/video connections
• AV installations in patch panels and wall plates
• Signal extension where standard keystone modules are used

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 86309
• EAN: 4043619863099
• Connector 1: RCA
• Connector 2: RCA
• Colour: Yellow
• Dimensions (W × D × H): 16.3 mm × 33 mm × 22.3 mm

How to use

Insert the module into a compatible keystone aperture until it snaps into place. Connect RCA cables to the front and rear RCA jacks to extend or route analogue audio/video signals. To remove, press the retaining clips and pull the module out of the plate or panel.

Recommendations

Use in dry, indoor environments and in compatible keystone panels or wall plates. Ensure cables are properly seated in the RCA connectors and avoid excessive force when inserting or removing the module to prevent damage to the retaining clips.
