Módulo Keystone DeLOCK 86331

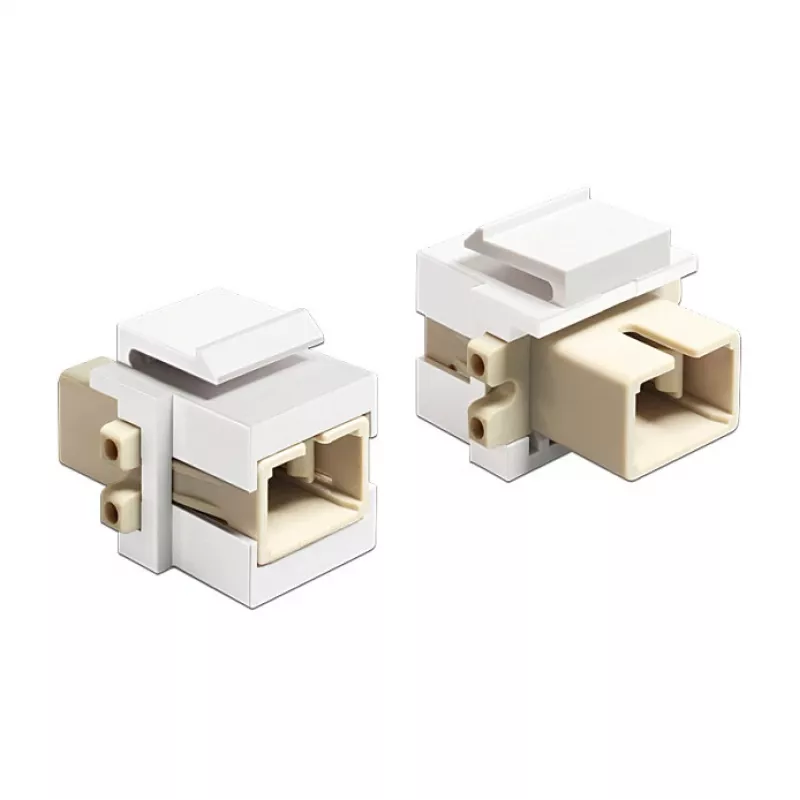

The DeLOCK 86331 keystone module provides a compact solution to extend optical fiber connections. It is fitted with SC connectors and comes in beige. With standardised keystone dimensions (27.6 mm width, 17.8 mm depth, 22.1 mm height), the module is intended for snap-in mounting in keystone patch panels, faceplates or surface-mount boxes and facilitates orderly integration into network installations.

Advantages

The module offers a standardised form factor for easy installation in common keystone mounts and ensures compatibility with SC fibre connectors. Its compact size allows tidy cable routing within panels and enclosures while the rigid housing supports secure mechanical connection points for optical links.

Suitable for

• Extending single-mode or multi-mode fibre lines using SC connectors
• Mounting in keystone patch panels
• Installation in faceplates and surface-mount boxes
• Organising fibre terminations in network cabinets and enclosures

Key specifications

• Brand: DELOCK
• Model / MPN: 86331
• EAN: 4043619863310
• Connector type: SC (fibre)
• Colour: Beige
• Dimensions (W × D × H): 27.6 mm × 17.8 mm × 22.1 mm
• Category: Accessories for networks

How to use

Align the keystone module with the opening of the patch panel, faceplate or surface-mount box and press until it snaps into place. Connect optical fibre patch cords with SC connectors to the module’s ports, ensuring proper seating of the connectors. Route and secure fibre cables to prevent stress on the connector interface and maintain appropriate bend radii according to fibre type.

Recommendations

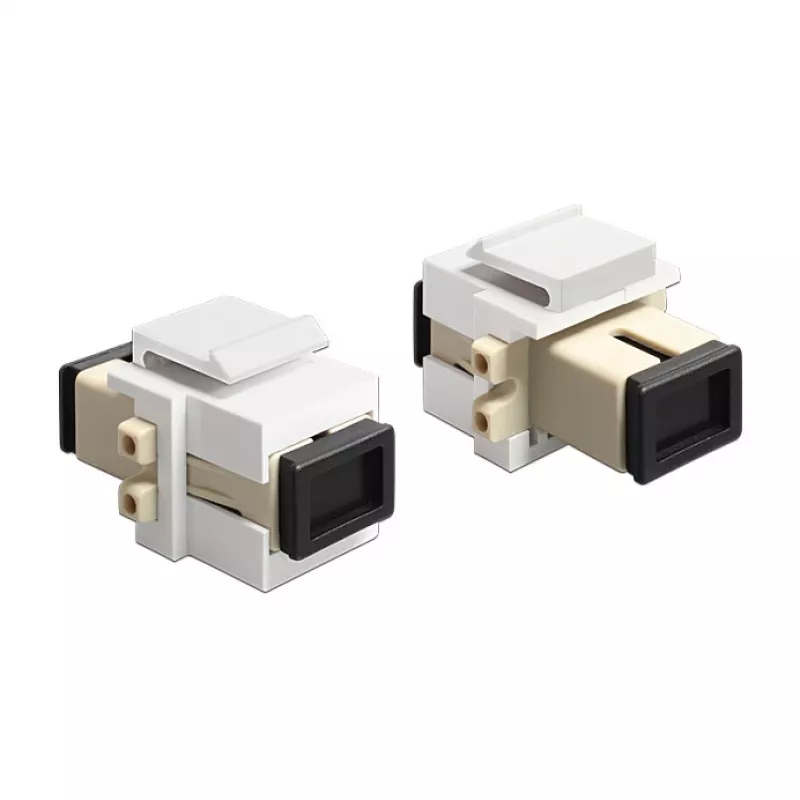

Use appropriate dust caps on unused SC ports to protect connectors from contamination. Perform visual inspection and cleaning of fibre endfaces before connection and avoid sharp bends or mechanical strain on the fibre to maintain signal integrity.
