Módulo Keystone DeLOCK 86704

The DeLOCK 86704 keystone module is a slim, black VGA (D-Sub) insert designed for mounting into panels or enclosures with D-type openings. Its flat construction and compact dimensions (25 mm width × 31 mm depth × 18 mm height) make it suitable for integrating video connections into professional and consumer AV or serial/parallel installations. The module is supplied individually and manufactured in China.

Advantages

The module provides a space-saving VGA (D-Sub) interface in a keystone form factor, allowing easy integration into standard keystone panels or custom enclosures. Its flat profile and compact size simplify installation where depth is limited, and the black finish ensures a discreet appearance in most racks and panels.

Suitable for

• Integrating VGA video connections into keystone patch panels

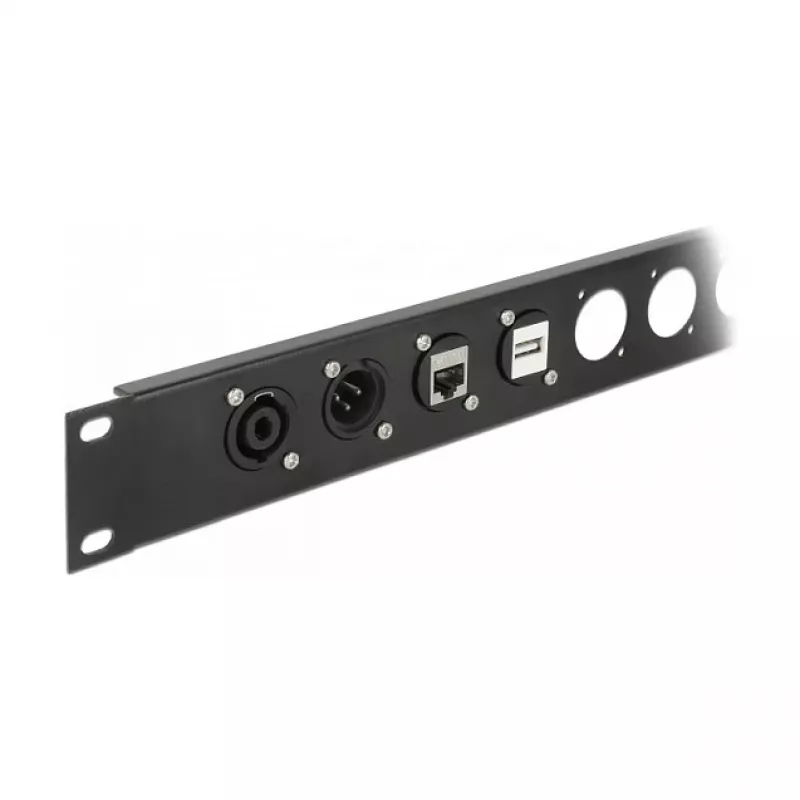

• Mounting in instrument panels or cases with D-type openings
• Use in AV installations, conference rooms, and control cabinets

Key specifications

• Brand: DELOCK
• Model / MPN: 86704
• EAN: 4043619867042
• Connector: VGA (D-Sub)
• Color: Black
• Dimensions: 25 mm (W) × 31 mm (D) × 18 mm (H)
• Pack: Single unit
• Country of manufacture: China

How to use

Install the DeLOCK 86704 keystone module into a compatible keystone panel or an enclosure with a D-type opening by snapping or securing it into the module slot. Connect a standard VGA cable to the D-Sub connector for video signal transfer. Ensure the module is seated firmly in the panel to maintain reliable mechanical and electrical connections.

Recommendations

Use the module in panels and enclosures designed for keystone inserts and verify that the panel opening matches the module dimensions. For reliable signal quality, use good-quality VGA cables and avoid excessive bending or strain on the connector.
