Módulo Keystone DeLOCK 86741 angular preto Cinch

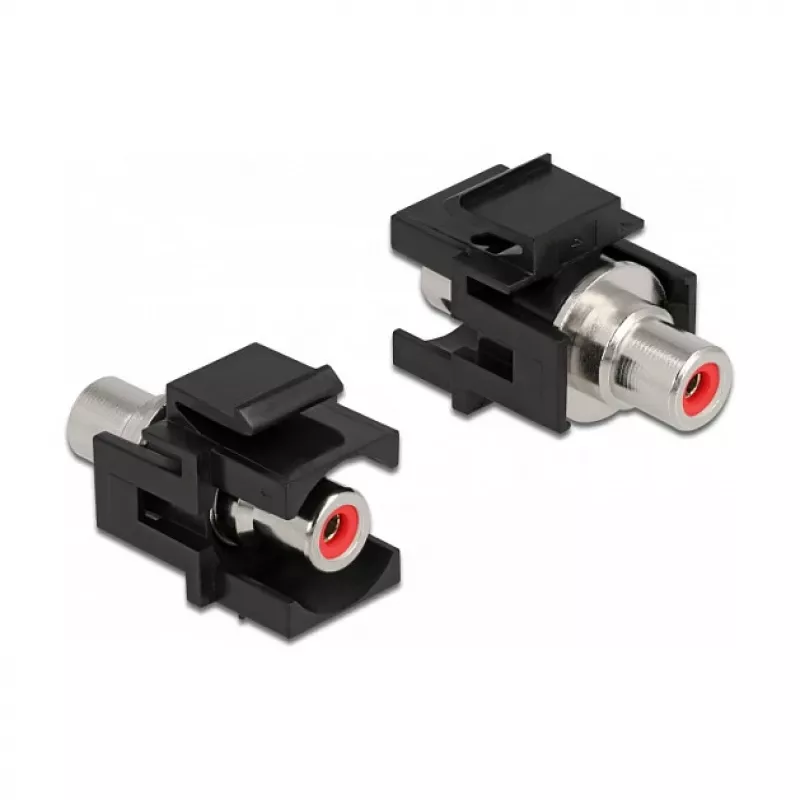

The DeLOCK 86741 Keystone Module is an angled, black RCA insert designed for simple installation in keystone panels, faceplates or surface-mount boxes. It provides a standard-sized RCA female connector to extend or terminate audio/video stereo cabling and is supplied as a single unit with compact dimensions (18 mm × 33.2 mm × 22.3 mm).

Advantages

The angled RCA keystone module offers a space-saving connection with a standardised housing for snap-in mounting. Its black finish blends with typical faceplate and panel installations, and the single RCA interface supports common audio and composite video signals. The compact size simplifies custom installations and upgrades without requiring additional adapters.

Suitable for

• Extending or terminating stereo audio cables
• Connecting composite video (RCA) in AV installations
• Snap-in mounting in keystone patch panels and faceplates
• Home theatre, multimedia furniture and custom AV panels

Key specifications

• Brand: DELOCK
• Model / MPN: 86741
• EAN: 4043619867417
• Connector: RCA (female)
• Orientation: Angled
• Colour: Black
• Dimensions (W × D × H): 18 mm × 33.2 mm × 22.3 mm
• Packaging: Single unit

How to use

Push the keystone module into a compatible keystone opening on a patch panel, faceplate or surface-mount box until it snaps into place. Connect the RCA cable or plug to the module’s RCA female connector. For panel wiring, terminate the cable on the rear side of the module according to standard RCA solder or crimp procedures, then install the module into the faceplate.

Recommendations

Use the module with standard RCA plugs and follow proper wiring techniques for audio/video signals. Ensure the keystone opening matches standard keystone dimensions before mounting. Avoid forcing the module into non-compatible housings to prevent damage.
