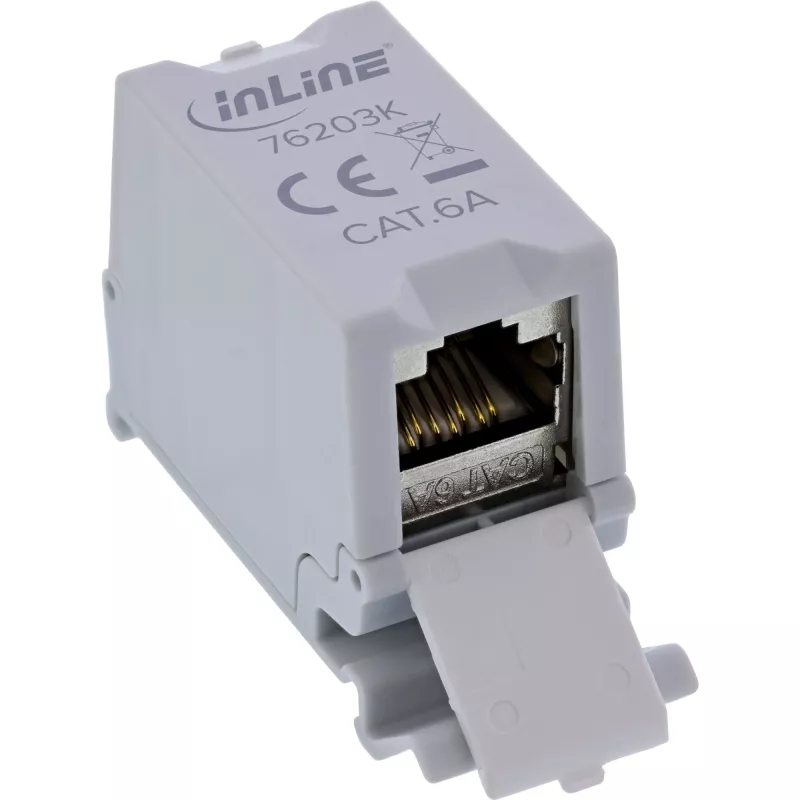

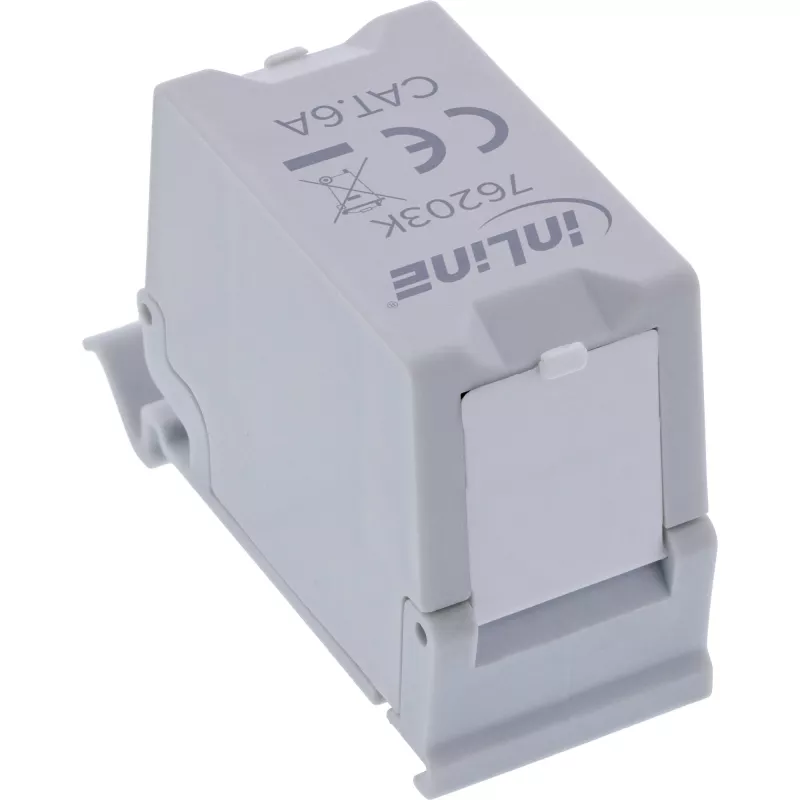

Módulo keystone InLine 76203K

Robust Cat.6A double coupling for industrial network installations
Fully shielded zinc die-cast housing with earthing spring for reliable potential equalization
10 Gb/s Ethernet-capable, supports PoE and PoE+

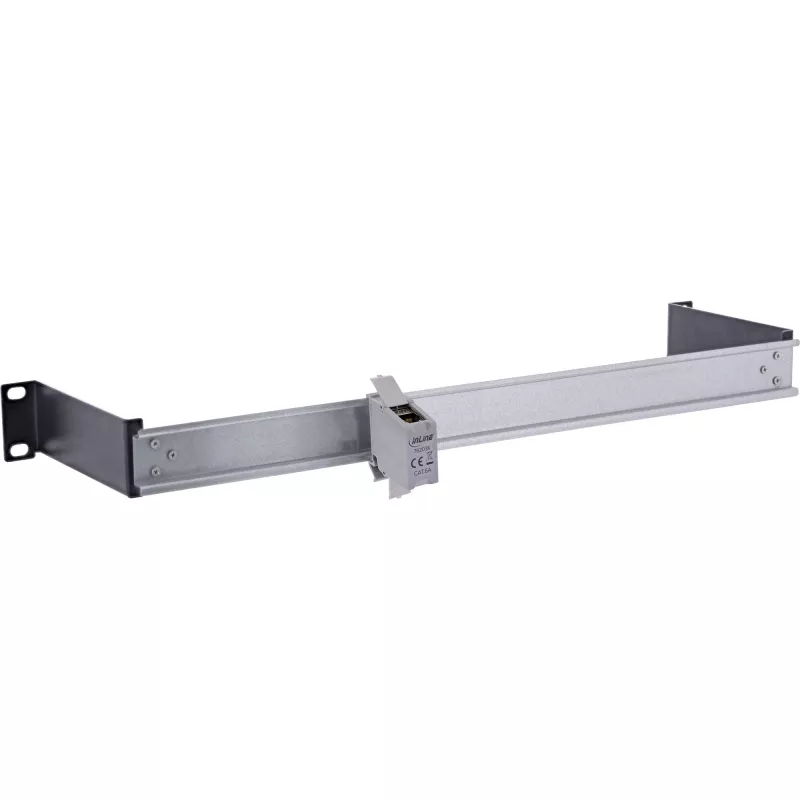

Compatible with standard TH35 top-hat rails - tool-free installation by simply clicking in
Compact design saves space in the control cabinet

The InLine® Cat.6A RJ45 double coupler for DIN rail mounting offers a reliable and space-saving solution for professional network cabling in distribution cabinets or industrial environments. The coupler has an RJ45 socket on both sides with 1:1 assignment and is ideal for connecting two network cables without active components.
The inner, fully shielded die-cast zinc housing provides effective protection against electromagnetic interference and, together with the integrated earthing spring, ensures potential equalization - ideal for use in demanding industrial or professional installations.

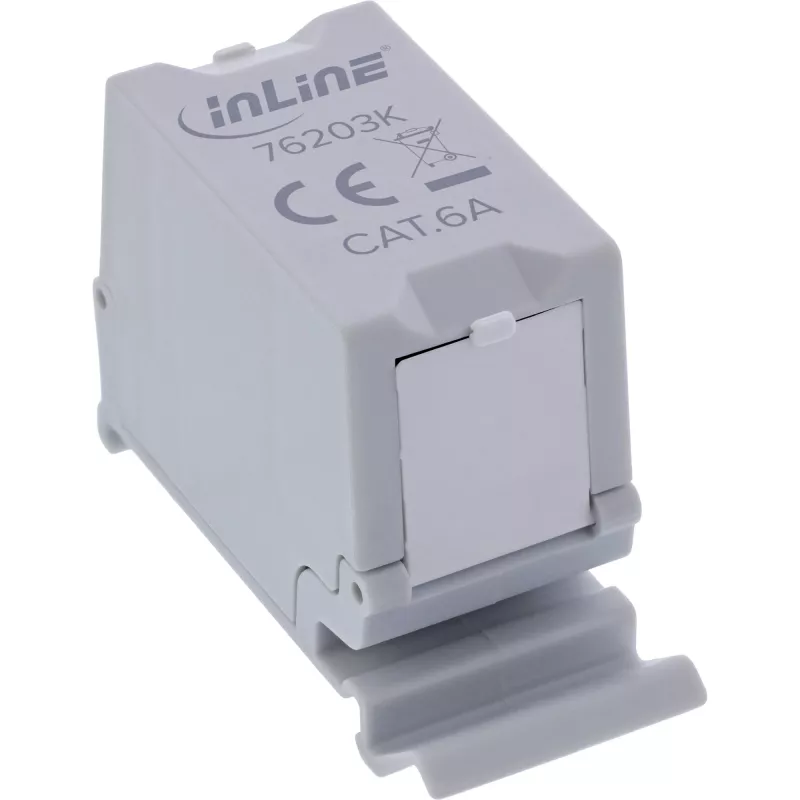

Thanks to its compact design and tool-free, one-click installation on standard TH35 top-hat rails, the coupling is particularly easy to install. Support for 10 Gb/s Ethernet as well as PoE and PoE+ enables use in modern high-speed networks. Dust caps protect the contacts during installation or when not in use.

Material: ABS plastic
Dimensions: 46.6 × 31.3 × 19.5 mm

InLine 76203K. Construction type: Flat, Product colour: Grey, Connector 1: RJ-45. Width: 20 mm, Depth: 46 mm, Height: 30 mm. Package volume: 400 cm³, Package type: Polybag, Package width: 72 mm. Quantity per pack: 1 pc(s)
