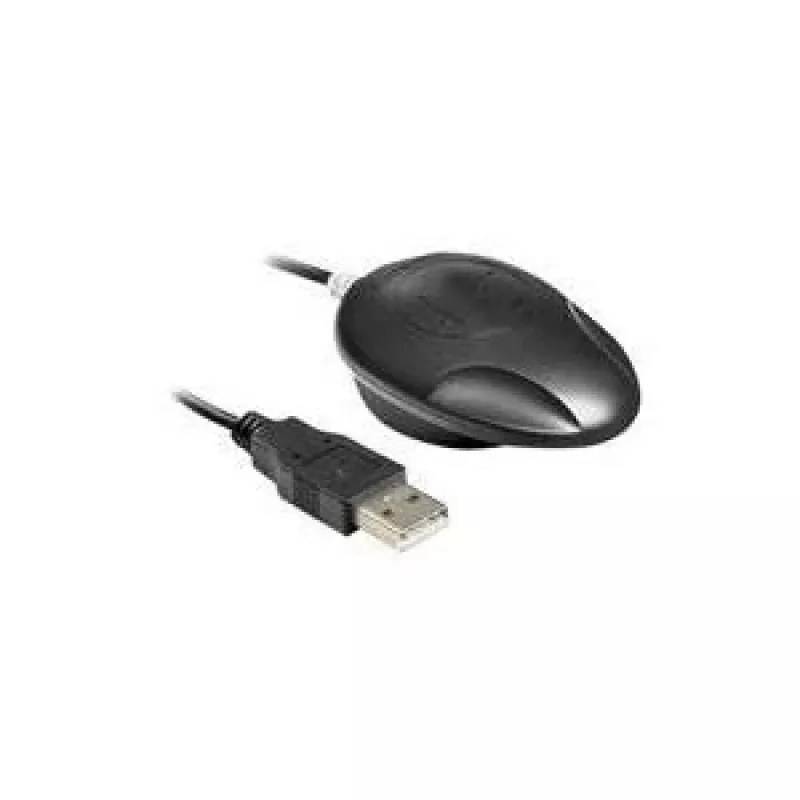

Módulo recetor GPS USB Navilock NL-8012U

The Navilock NL-8012U USB GPS receiver module is a compact GNSS device based on the u‑blox 8 chipset with a built‑in antenna for high sensitivity. It supports L1 navigation signals at 1575.42 MHz and connects via a USB Type‑A plug, making it suitable for use with notebooks and navigation or routing software for accurate positioning in outdoor applications.

Advantages

The NL-8012U offers a slim, low‑profile design that is easy to carry and connect. Its integrated antenna and u‑blox 8 receiver provide reliable satellite tracking and fast time‑to‑first‑fix. The USB Type‑A interface ensures plug‑and‑play compatibility with many laptops and devices running compatible navigation software.

Suitable for

• Notebook navigation with routing software
• Portable outdoor positioning
• Applications that require external USB GNSS input

Key specifications

• Model: Navilock NL-8012U
• Chipset: u‑blox 8
• Signal: L1 (1575.42 MHz)
• Interface: USB Type‑A (USB 2.0)
• Dimensions: 65 mm × 45 mm × 2 mm
• EAN: 4043619625246

How to use

Connect the NL-8012U to a computer using the USB Type‑A plug. Install any required drivers if prompted by the operating system, then launch compatible navigation or routing software. Configure the software to use the external GNSS receiver as the position source. Allow the receiver clear view of the sky for best satellite reception and wait for the device to acquire a fix.

Recommendations

For reliable positioning, use the receiver outdoors or near a window with a clear view of the sky. Keep the device away from large metal objects and sources of radio interference. If signal acquisition is slow, confirm drivers and software settings and restart the application or computer.
