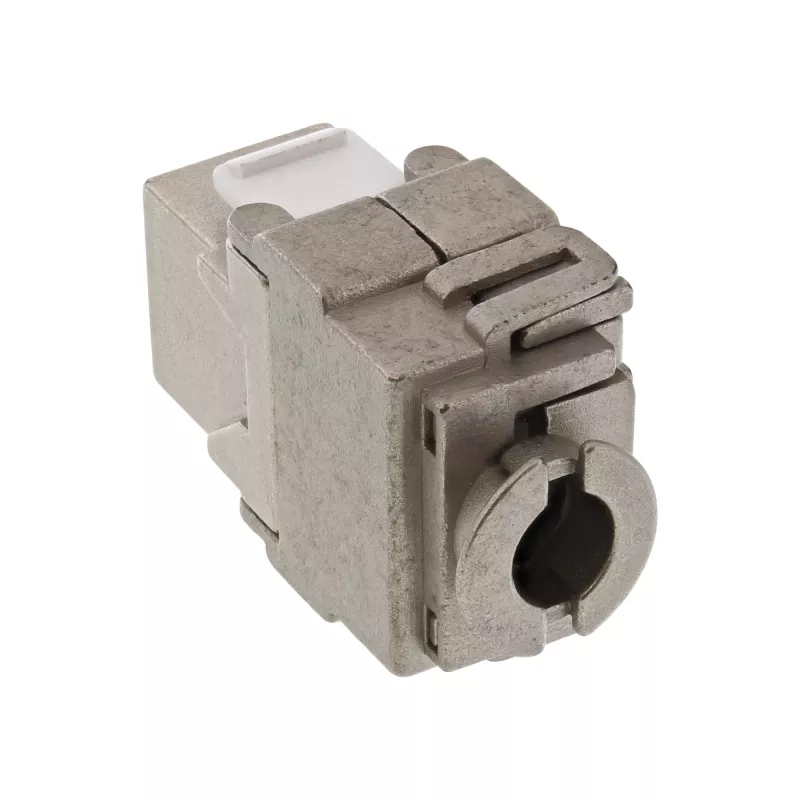

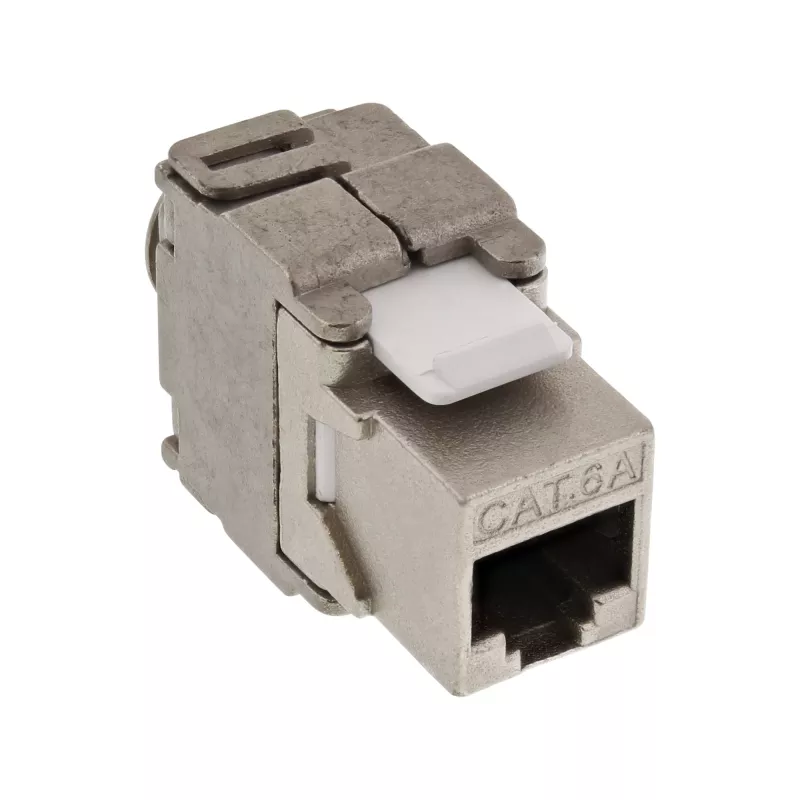

Módulo Snap-In RJ45 Keystone Jack InLine Cat.6a 76201A

The InLine RJ45 Keystone Jack Snap-In module Cat.6a (model 76201A) is a single-port keystone insert designed for reliable Ethernet connections. It uses standard RJ45 interfaces and meets Cat6a cabling requirements to support high-speed data transmission. The module is finished in grey and is intended for installation into compatible keystone wall plates, patch panels or surface-mount boxes; it is supplied individually.

Advantages

This snap-in Cat.6a keystone jack provides a compact, standardized interface for copper Ethernet cabling, ensuring compatibility with RJ45-terminated cables and supporting the performance levels associated with Cat6a. The snap-in design simplifies installation and replacement in keystone wall plates and panels. The product’s individual packaging allows flexible use for both single-point and distributed network installations.

Suitable for

Key specifications

How to use

Terminate the Ethernet cable to the keystone jack according to the chosen wiring scheme (TIA/EIA 568A or 568B) following the color code markings on the module. Insert the wired keystone into a compatible keystone opening until it snaps into place. Mount the wall plate, patch panel or surface box as required, and test the link with a network tester to verify continuity and performance.

Recommendations

Use appropriate cable type and shielding consistent with Cat6a performance requirements, maintain correct cable bend radius during installation, and perform post-installation testing to confirm link speed and pair integrity.
