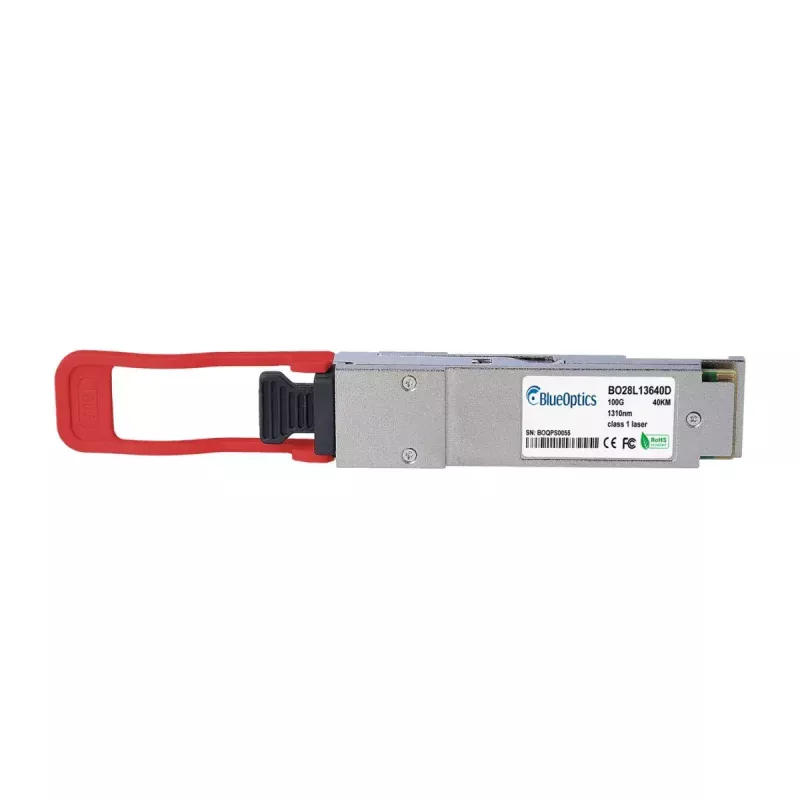

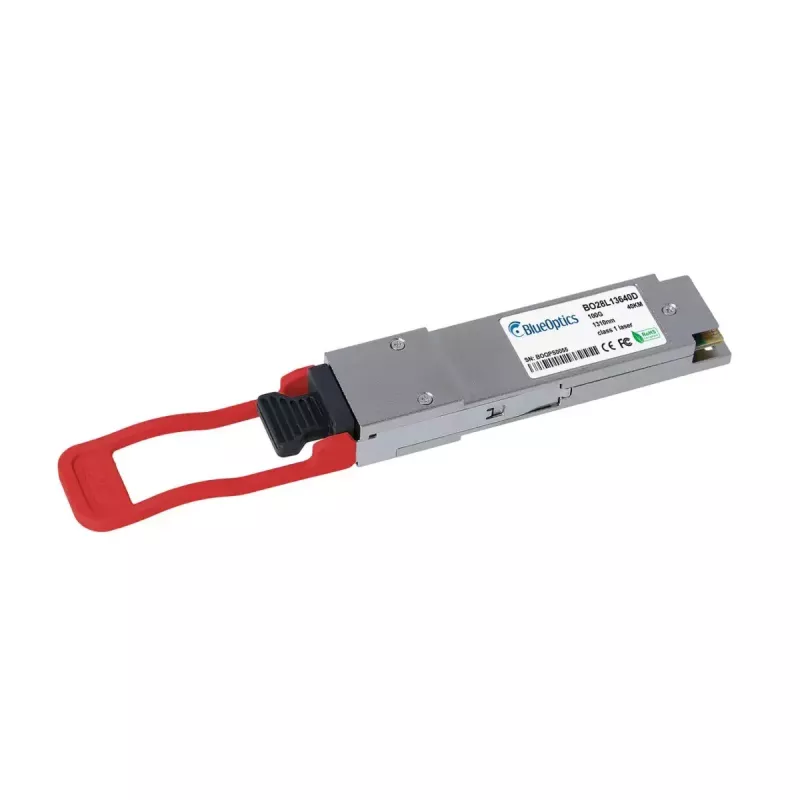

Módulo transceptor de fibra ótica BlueOptics 02312QTL-BO QSFP28 100000 Mbit/s

The BlueOptics 02312QTL-BO QSFP28 fiber optic transceiver module supports high-speed data transmission up to 100000 Mbit/s in a compact QSFP28 form factor. Designed for use in data center and enterprise networking equipment, this module has a silver housing, a lightweight construction of approximately 40 g and an MTBF of 1,000,000 hours to meet continuous operation requirements. The transceiver implements the QSFP28 interface standard to provide four lanes of 25 Gbit/s operation aggregated to 100 Gbit/s where supported by the host system.

Advantages

The module offers a standardized QSFP28 interface for compatibility with modern 100GbE ports and multiplexed lane operation. Its small QSFP28 form factor and low weight simplify installation and hot-swap replacement in switches and routers. A high MTBF rating indicates long-term reliability under normal operating conditions, reducing the need for frequent replacements. The silver metal housing provides mechanical protection and thermal conduction suitable for rack-mounted network equipment.

Suitable for

• Aggregation links and spine-leaf fabrics in data centers
• High-performance network switches and routers with QSFP28 ports
• Server interconnects and storage network connections requiring 100 Gbit/s throughput
• Environments where compact, hot-pluggable transceivers are required

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100 Gbit/s)
• Form factor: QSFP28 compact transceiver
• Weight: 0.04 kg (approx. 40 g)
• Housing colour: Silver
• Reliability (MTBF): 1,000,000 hours

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 port on a switch, router or server according to the host equipment manufacturer’s instructions. Ensure the link settings on the host are configured for 100 Gbit/s operation or for the supported lane configuration. Connect appropriate fiber-optic cables and verify optical connectors and polarity. Monitor link status and signal diagnostics through the host device management interface to confirm proper operation.

Recommendations

Handle the transceiver carefully to avoid contamination of optical connectors; always replace dust caps when the module is not in use. Verify compatibility with the host device firmware and supported transceiver lists before deployment. Operate the module within the equipment manufacturer’s temperature and humidity ranges and follow ESD precautions during handling and installation.
