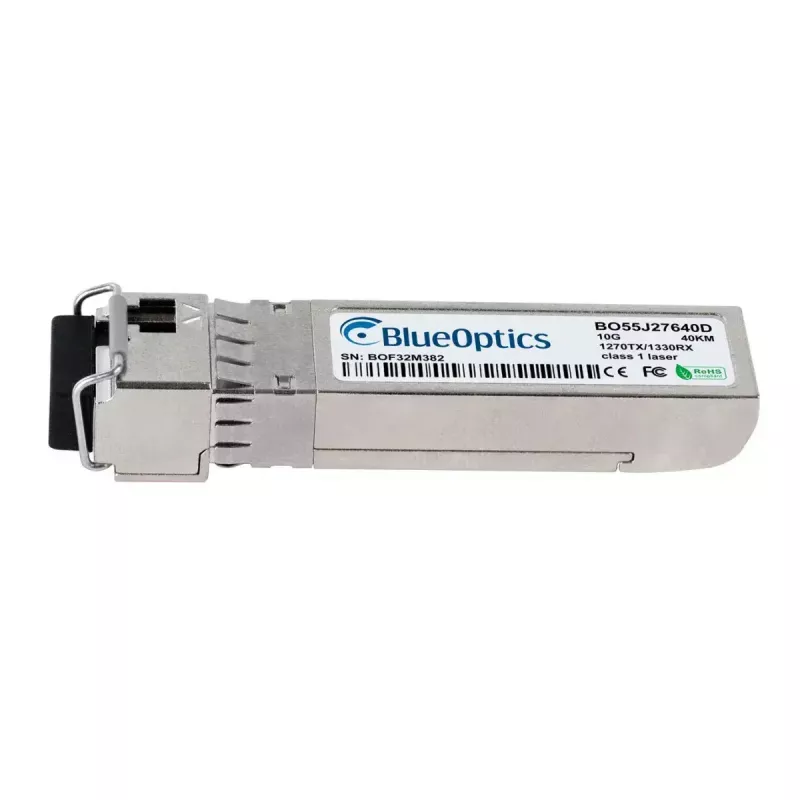

Módulo transceptor de fibra ótica BlueOptics JNP-SFP-10G-BX40U-BO SFP+ LC alumínio 20g

The BlueOptics JNP-SFP-10G-BX40U-BO is a fiber optic SFP+ transceiver module designed for high-speed single-mode links. It uses an LC simplex connector, supports 10GBASE-BX-U transmission with separate transmit and receive wavelengths, and is housed in an aluminium enclosure weighing approximately 20 g. The module follows MSA-compatible mechanical and electrical specifications and is suitable for use in network equipment that accepts SFP+ 10G modules.

Advantages

This SFP+ transceiver enables 10 Gbit/s optical connectivity over long distances using single-mode fiber and provides separate transmit (1330 nm) and receive (1270 nm) channels for bidirectional operation on one fiber. Its aluminium housing offers mechanical durability while keeping weight low, and the module supports digital diagnostics (DDM/DOM) for real-time monitoring of supply voltage, laser bias current, transmit power, receive power and temperature. The design adheres to MSA standards to ensure interoperability with compatible network platforms.

Suitable for

• 10 Gigabit Ethernet uplinks between switches and routers
• Long-distance single-mode fiber links up to the module's supported reach
• Carrier and data center interconnects requiring bidirectional single-fiber transmission
• Systems that support SFP+ transceivers with LC simplex connectors

Key specifications

• Form factor: SFP+ (10 Gbit/s)
• Connector: LC simplex
• Transmission type: 10GBASE-BX-U bidirectional over single-mode fiber
• Transmit wavelength: 1330 nm
• Receive wavelength: 1270 nm
• Housing material: aluminium
• Weight: approx. 0.02 kg
• Digital diagnostics: DDM/DOM (MSA SFF-8472 compliant)

How to use

Insert the SFP+ module into a compatible SFP+ port according to the host device instructions and secure it until it seats properly. Connect an LC simplex single-mode patch cable, making sure transmit and receive ends are correctly mated for bidirectional operation. Verify the host device recognizes the module and, if available, enable DDM/DOM monitoring to check link parameters. Follow standard ESD precautions when handling the module and keep dust caps in place until connection to protect fiber interfaces.

Recommendations

Use high-quality single-mode LC patch cables and, where possible, patch panels or jumper assemblies rated for 10 Gbit/s to achieve optimal reach and signal quality. Confirm host compatibility with 10GBASE-BX-U modules and enable digital diagnostics for proactive link monitoring. Store the transceiver in a dry, dust-free environment and avoid mechanical stress to the fibre connectors.
