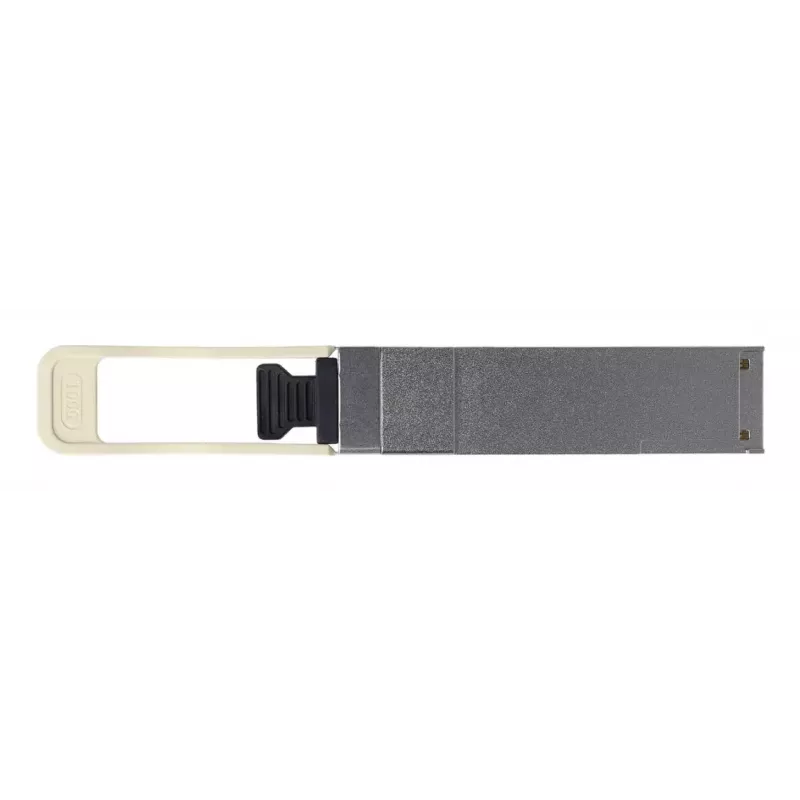

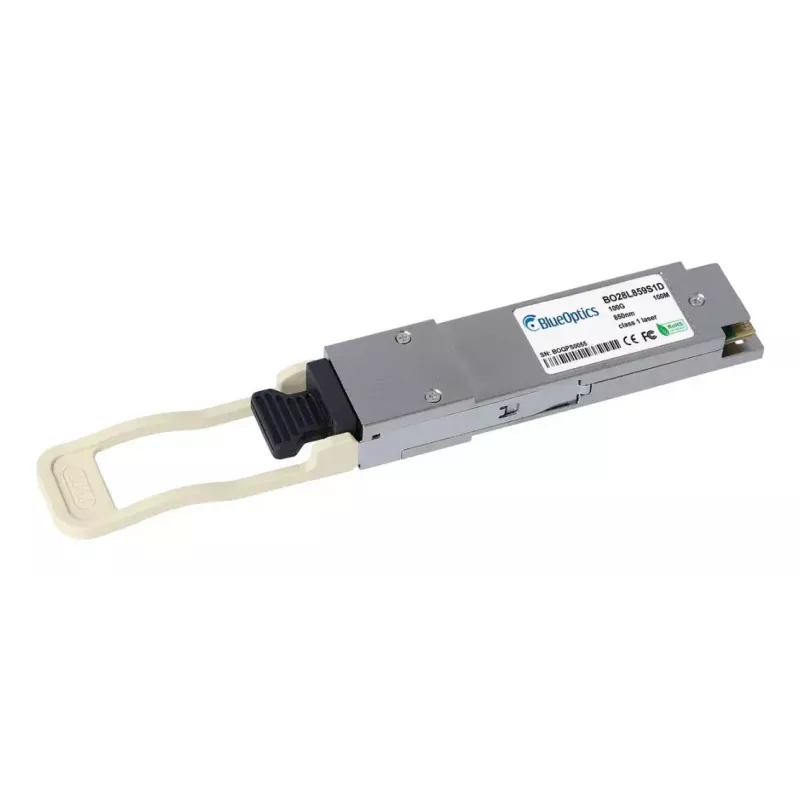

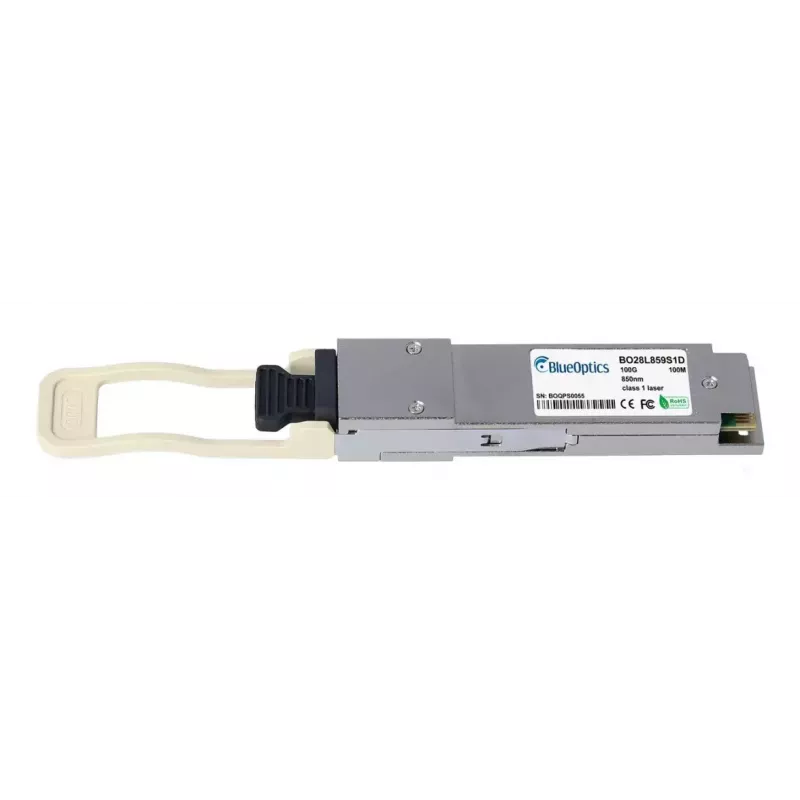

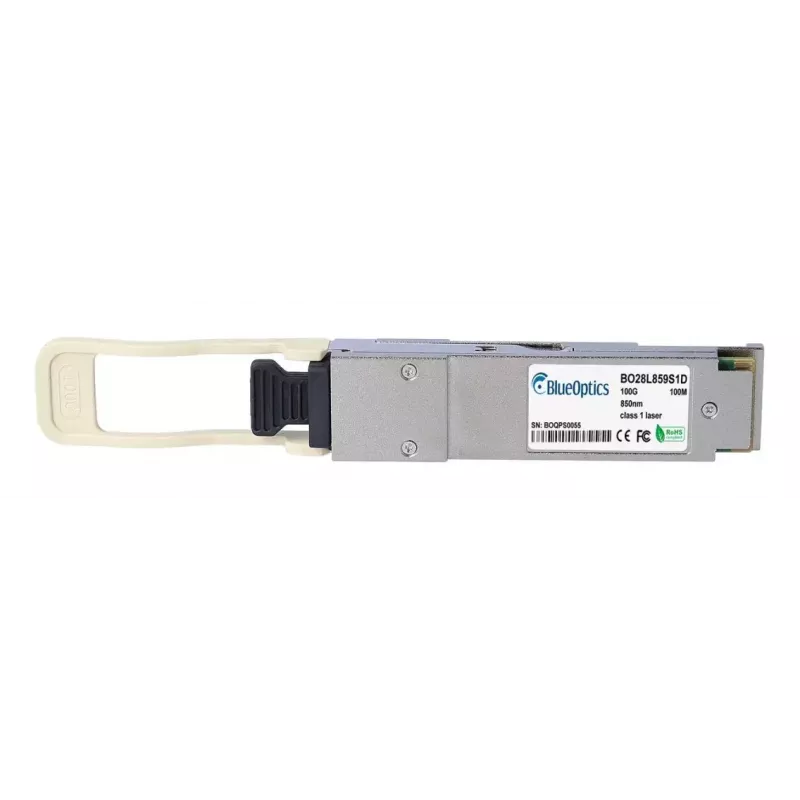

Módulo transceptor de fibra ótica BlueOptics 2X15K-BO QSFP28 MTP/MPO

The BlueOptics 2X15K-BO QSFP28 MTP/MPO is a fiber optic transceiver module engineered for high-speed 100G data transmission over multimode fiber. Housed in an aluminium enclosure and weighing approximately 40 g, this QSFP28 module uses an MTP/MPO connector and implements 100GBASE-SR4 optical signalling with 850 nm transmit and receive wavelengths. It follows MSA-compliant form factors for compatibility with major network hardware that supports 100G QSFP28 SR4 modules.

Advantages

The module provides a compact QSFP28 interface for aggregating four 25 G channels into a single 100 G link, enabling high-density, short-reach connections in data center and enterprise networks. Constructed with durable aluminium and selected optical and electronic components, it offers stable optical performance, built-in digital diagnostics monitoring (DDM/DOM) for real-time voltage, temperature and optical power metrics, and wide compatibility with hardware platforms that accept MSA-compliant 100GBASE-SR4 QSFP28 modules.

Suitable for

• Short-reach 100G Ethernet links in data centers (up to ~100 m on multimode fiber)
• High-capacity aggregation between switches and routers
• Interconnects for storage systems and network appliances
• Patch panel and fiber backbone connections using MTP/MPO cabling

Key specifications

• Interface type: QSFP28 supporting 100GBASE-SR4
• Connector: MTP/MPO multimode fiber
• Wavelength: 850 nm transmit and receive
• Form factor: QSFP28, MSA-compliant
• Material and colour: aluminium housing (aluminium colour)
• Weight: approx. 0.04 kg
• Maximum supported reach: typical up to 100 m on OM3/OM4 multimode fiber (depends on fiber type and link conditions)
• Digital diagnostics: DDM/DOM support for optical power, bias current, supply voltage and temperature

How to use

Install the QSFP28 module into a compatible QSFP28 port on a switch, router or other network device that supports 100GBASE-SR4 MSA-compliant transceivers. Connect the module to an MTP/MPO multimode fiber cable, ensuring correct polarity and that the patch cord and fiber type (OM3/OM4) meet the distance requirements. Verify link status in the hosting device and, if available, read real-time diagnostics through the DDM/DOM interface to confirm optical power and module temperature. Follow the host hardware vendor's procedures for hot-plugging to avoid disruption.

Recommendations

For optimal performance, pair this BlueOptics QSFP28 MTP/MPO module with high-quality OM3 or OM4 MTP/MPO multimode patch cords and ensure clean connector endfaces before insertion. Confirm that the target hardware supports DDM/DOM if you intend to monitor diagnostic parameters, and test interoperability in your specific platform and firmware environment prior to deployment.
