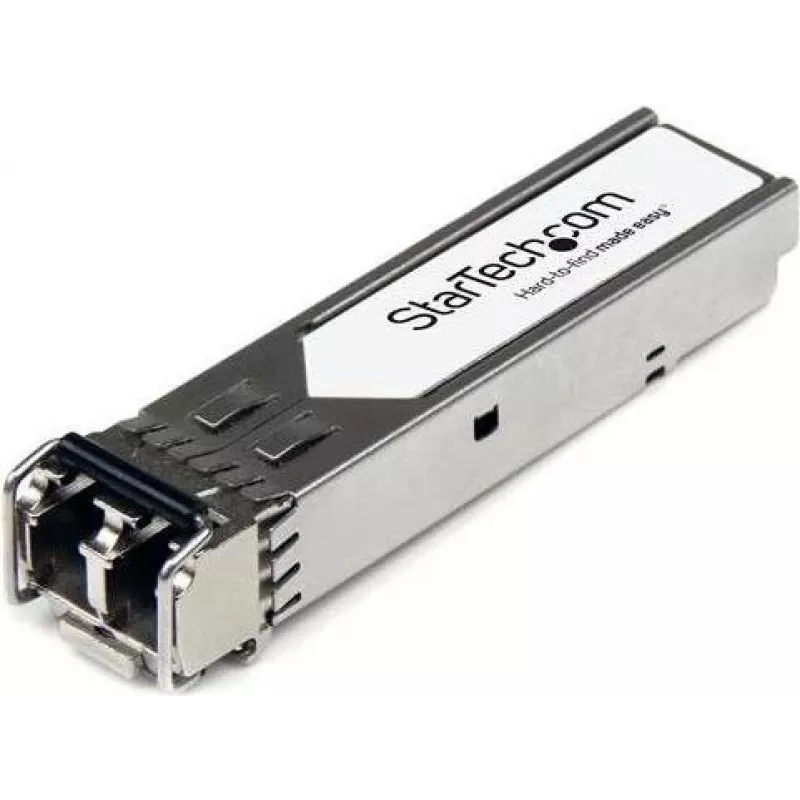

Módulo transceptor StarTech J9152A-ST SFP+ 10GBASE-LRM - compatível com HP, 1310 nm, LC duplex, fibra multimodo, 220 m, DDM

In enterprise data centers and campus networks, network administrators often need to extend 10 Gigabit Ethernet over existing multimode fiber infrastructure. The StarTech J9152A-ST SFP+ transceiver module delivers reliable 10GBASE-LRM connectivity, enabling high-speed links up to 220 meters over legacy multimode fiber. It is fully compatible with HP J9152A equipment and supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking.

Key specifications

• Transceiver type: SFP+ (enhanced small form-factor pluggable)
• Data rate: 10 Gbps
• Interface: 10GBASE-LRM (Long Reach Multimode)
• Wavelength: 1310 nm
• Connector: LC duplex
• Fiber type: Multimode (MMF)
• Maximum transfer distance: 220 m (721 ft)
• DDM support: Yes
• Hot-swappable: Yes
• Compatibility: HP J9152A equivalent
• Operating temperature: 0°C to 70°C (32°F to 158°F)
• Power consumption: < 1.0 W
• Housing: Metal, silver

Why choose it

This transceiver is an ideal choice for upgrading existing multimode fiber plants to 10 Gigabit Ethernet without the cost of installing new single-mode cabling. Its 1310nm wavelength and LRM technology overcome modal dispersion limitations, allowing longer reach on legacy OM1, OM2, and OM3 fibers. The integrated DDM provides real-time monitoring of temperature, voltage, laser bias current, and optical power, simplifying network management and troubleshooting.

Ideal use cases

• Connecting switches and routers in enterprise campus backbones over existing multimode fiber.
• Extending 10GbE links between buildings or floors up to 220 meters.
• Upgrading legacy 1GbE multimode links to 10GbE without recabling.
• Deploying in HP networking environments requiring J9152A-compatible optics.

Good to know

The StarTech J9152A-ST is hot-swappable, allowing installation or removal without powering down the network device. It complies with IEEE 802.3ae 10GBASE-LRM standards and MSA specifications, ensuring interoperability with a wide range of HP and other compatible equipment. The metal housing provides durability and efficient heat dissipation, contributing to reliable long-term operation.
