Moldura de montagem Axagon RHD-125B para 1x 2,5 polegadas em baía de 3,5 polegadas - metal preto

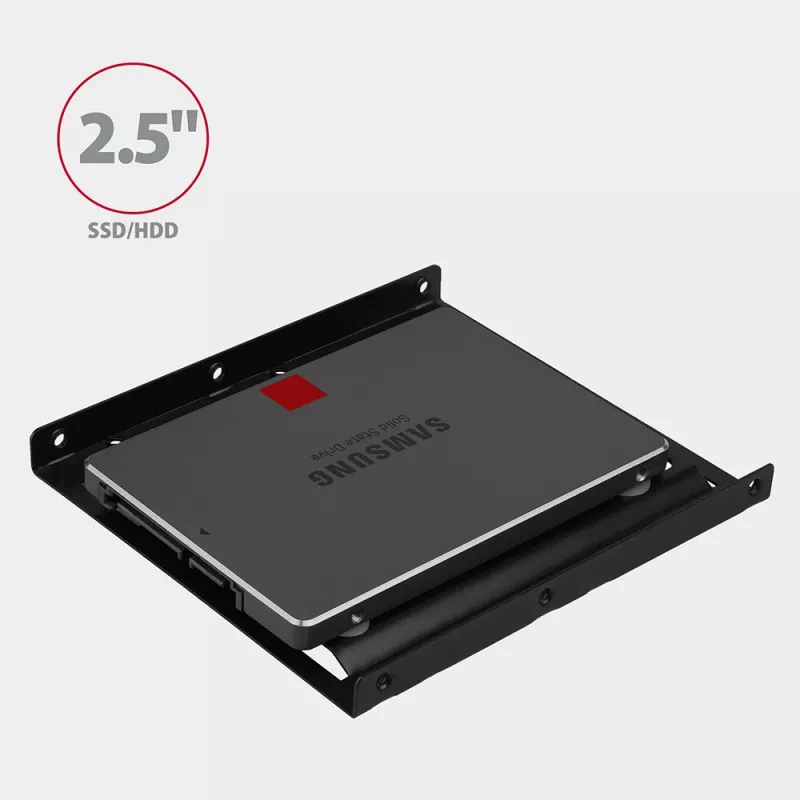

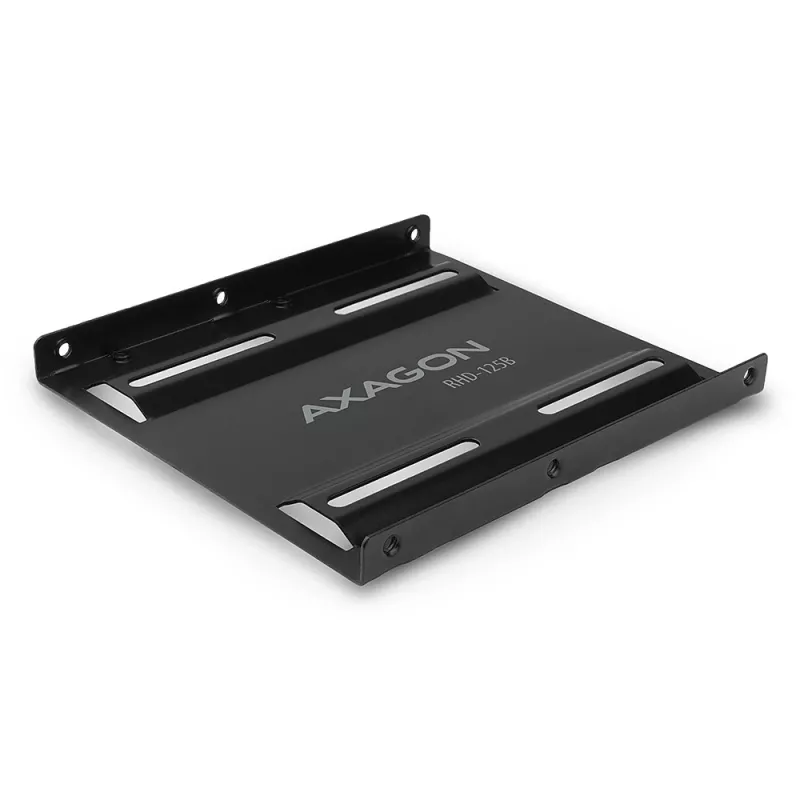

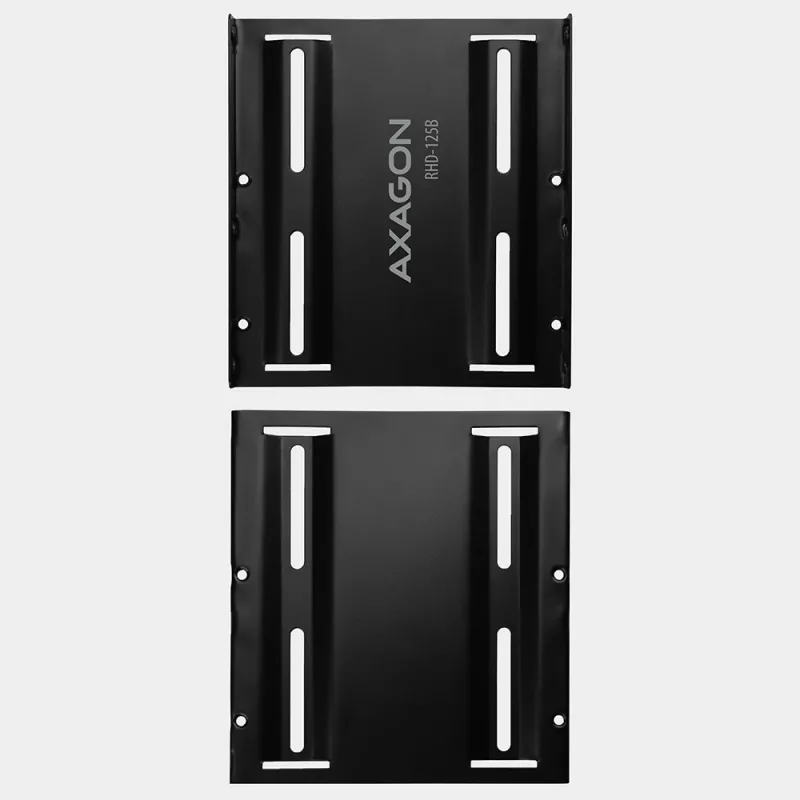

The AXAGON RHD-125B metal frame allows mounting a 2.5" HDD or SSD into a standard 3.5" bay of a PC case. The adapter accepts drives of any height, so both slim and thicker 2.5" hard drives and SSDs can be installed. The steel construction is painted black and provides stable fixation and improved heat dissipation from the drive.

Advantages

The frame supports 2.5" drives without height limitation and fits standard 3.5" mounting holes in PC cases. Precise hole placement and included screws simplify installation, while the metal profile increases mechanical stability and helps dissipate heat. The adapter is lightweight and compact, with outside dimensions of 102 x 114 x 10 mm and a weight of 80 g.

Suitable for

• Installing 2.5" SSD into a desktop PC 3.5" bay
• Mounting 2.5" HDD of various heights (7 mm, 9.5 mm, 12.5 mm, 15 mm, etc.)
• Replacing or adding storage in desktop computers

Key specifications

• Model: AXAGON RHD-125B
• Supported drive size: 2.5" HDD / SSD (no height limitation)
• Fits into: 3.5" drive bay (standard PC case)
• Material: steel (black painted)

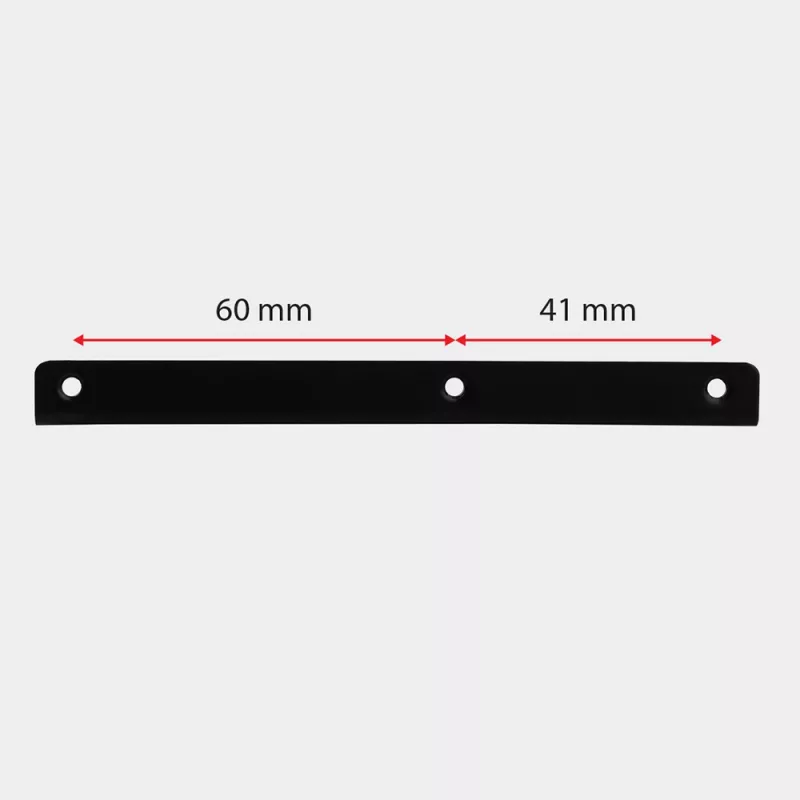

• Outside dimensions: 102 x 114 x 10 mm
• Weight: 0.08 kg

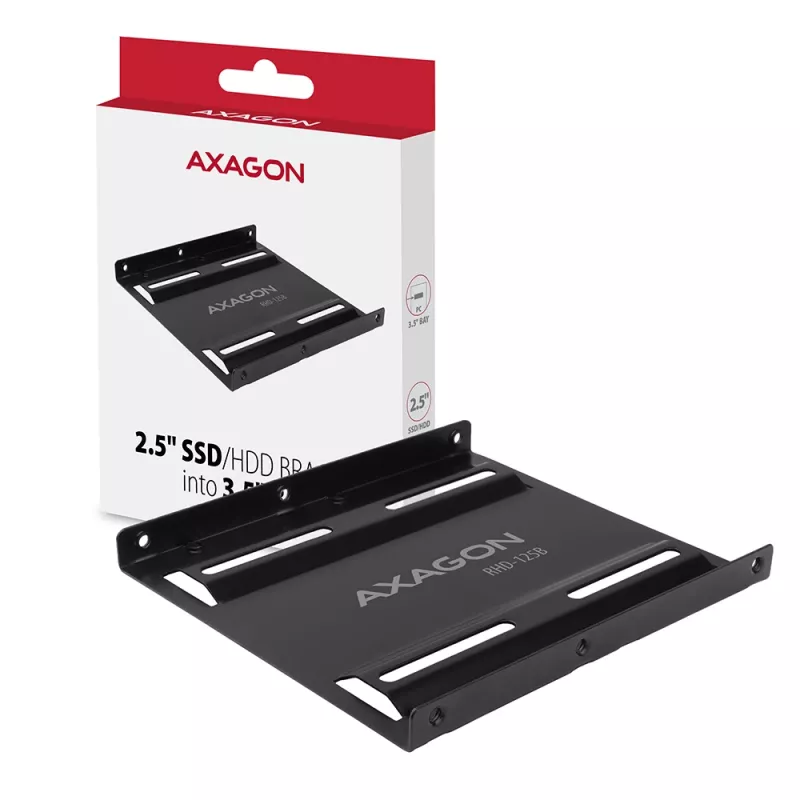

• Package contents: frame, screws and mounting materials, printed multi-language manual, cardboard box with hanging hole

How to use

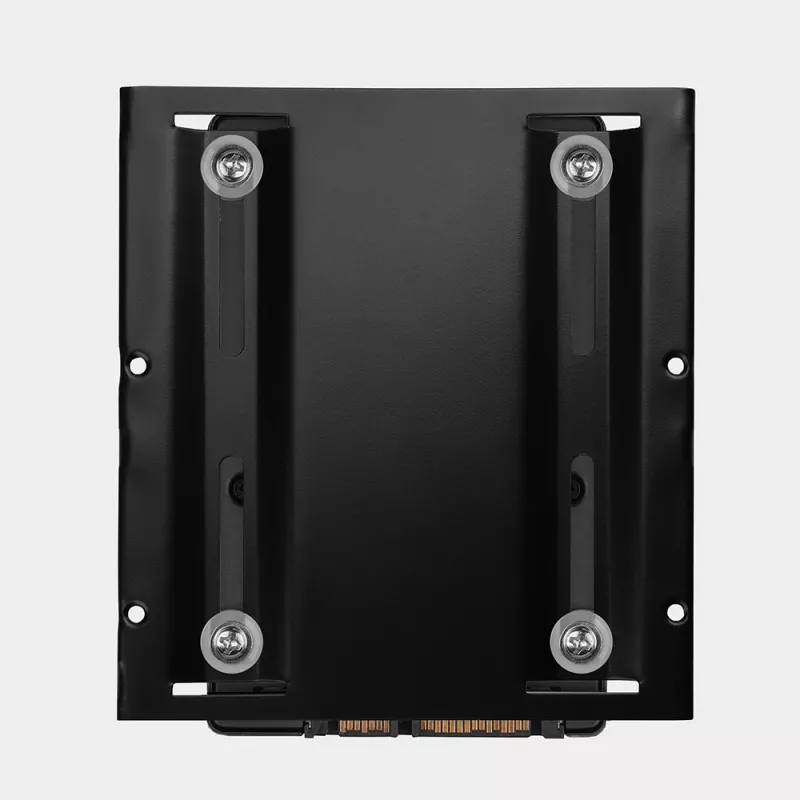

Place the 2.5" drive into the adapter frame aligning the screw holes, secure the drive with the supplied screws, then insert the assembled adapter into a 3.5" bay of the PC case and fasten it using the case's mounting screws. Connect the drive to the motherboard and power supply using appropriate SATA cables and power connectors. Follow the printed manual if needed for additional guidance.

Recommendations

Ensure the drive is firmly fixed in the frame and that airflow inside the case is adequate for cooling. Use the supplied screws only and avoid overtightening to prevent damage to the drive or adapter.
