Monitor AG Neovo MX-24 60,5 cm (23,8") 1920 x 1080 píxeis Full HD LCD branco

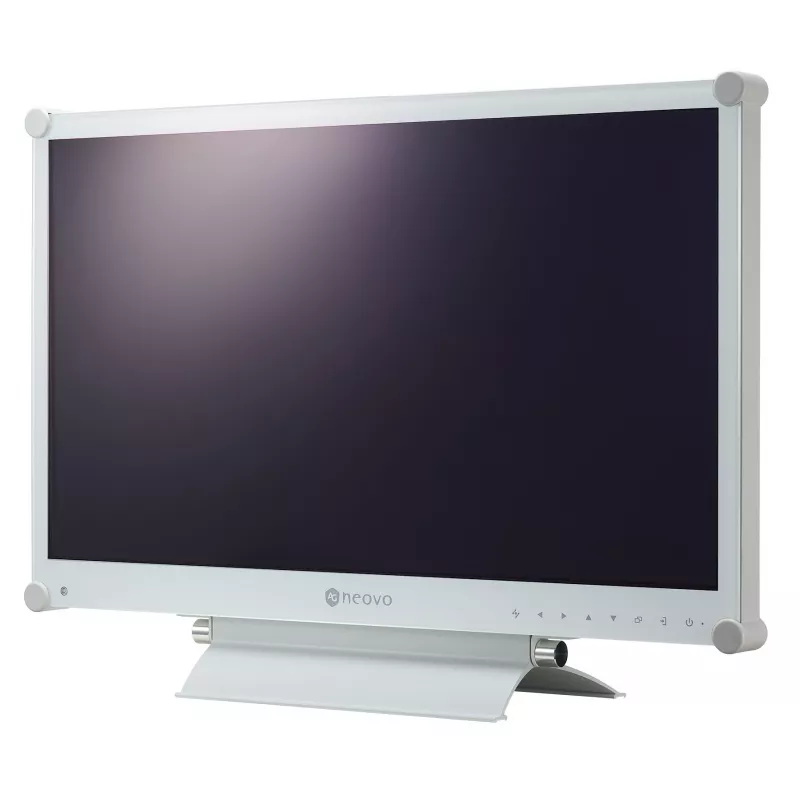

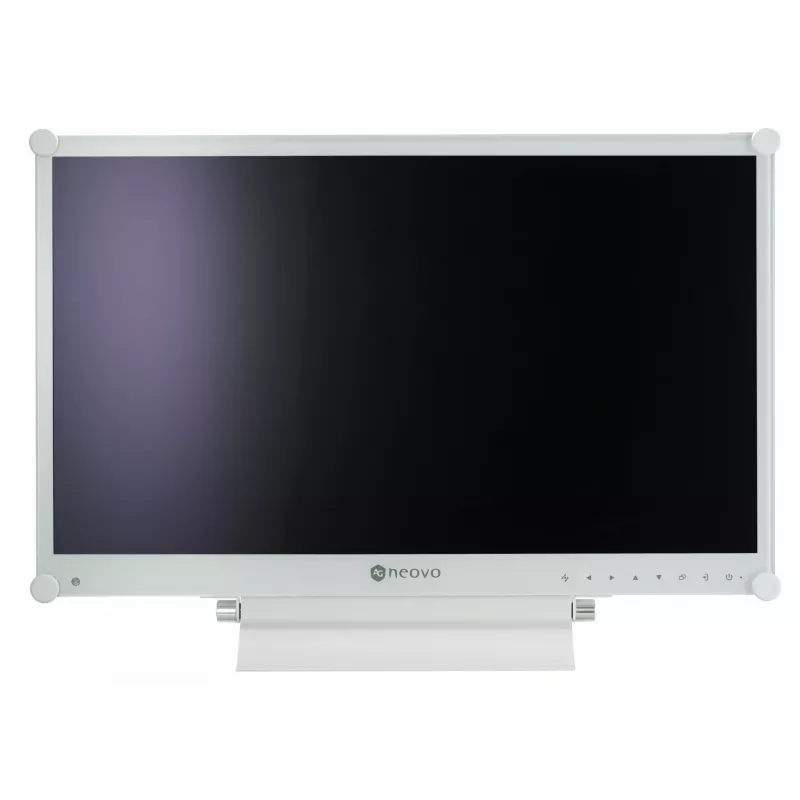

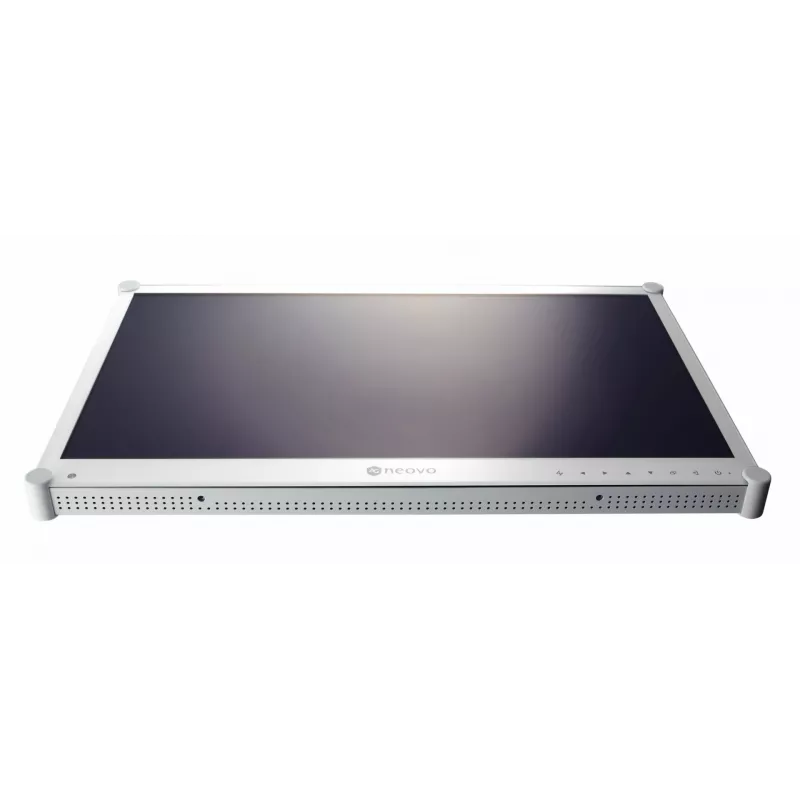

The AG Neovo MX-24 is a 23.6" Full HD (1920 x 1080) LCD monitor designed for consistent image clarity and professional environments. It uses DICOM Part 14 compliant calibration to correct gamma and luminance for smooth grayscale rendering, and it includes built-in speakers, VESA mounting, and multiple input options such as HDMI and DisplayPort 1.2 for flexible connectivity.

Advantages

The MX-24 provides consistent grayscale performance through DICOM Part 14 calibration, ensuring accurate and repeatable image appearance for clinical review and other applications. NeoV Optical Glass with anti-acid and anti-alkali coating improves resistance to alcohol and common cleaning solutions, while a metal casing increases durability and scratch protection. Multiple signal inputs and PIP/PBP support enable simultaneous viewing of different sources, and a low-voltage medical-grade power supply with EN/IEC 60601-1 compliance offers safety and reliability in medical settings.

Suitable for

• Medical image review and clinical workstations where DICOM grayscale consistency is required
• Multitasking setups needing PIP/PBP to compare images and records
• Office or reception areas that require a durable, easy-to-clean display
• Mounting on arms or walls using VESA-compatible mounts

Key specifications

• Display diagonal: 23.6"
• Resolution: 1920 x 1080 (Full HD)
• Panel type: TFT LCD
• Response time: 5 ms
• Contrast ratio (typical): 1000:1
• Brightness (typical): 300 cd/m²
• Viewing angles: 170° horizontal / 160° vertical
• Pixel pitch: 0.272 x 0.272 mm

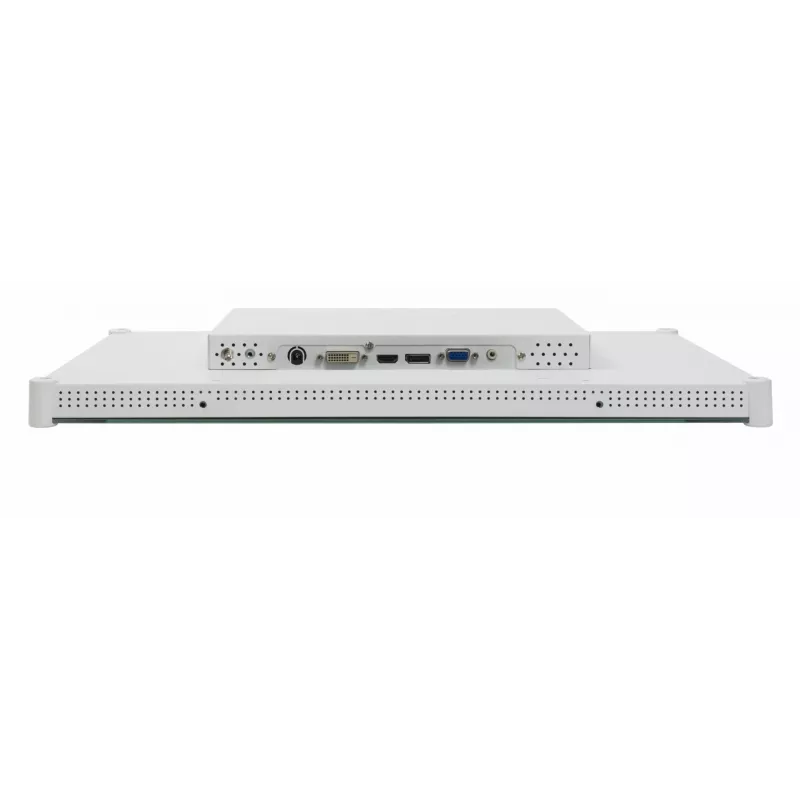

• Inputs: HDMI, DisplayPort 1.2 (multiple source support)
• Built-in speakers: Yes
• VESA mounting: Yes
• Colour: White

How to use

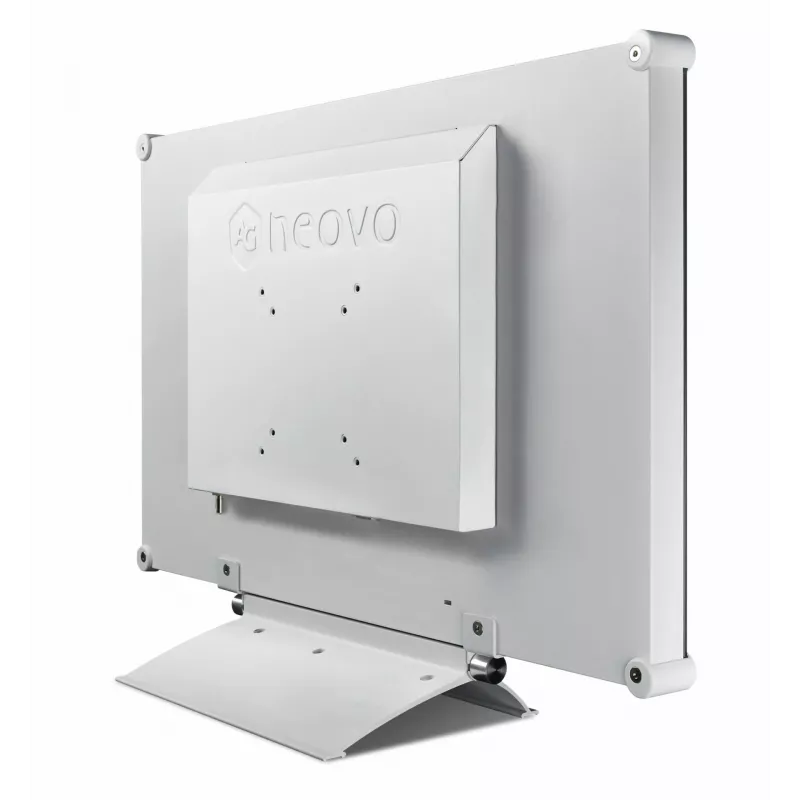

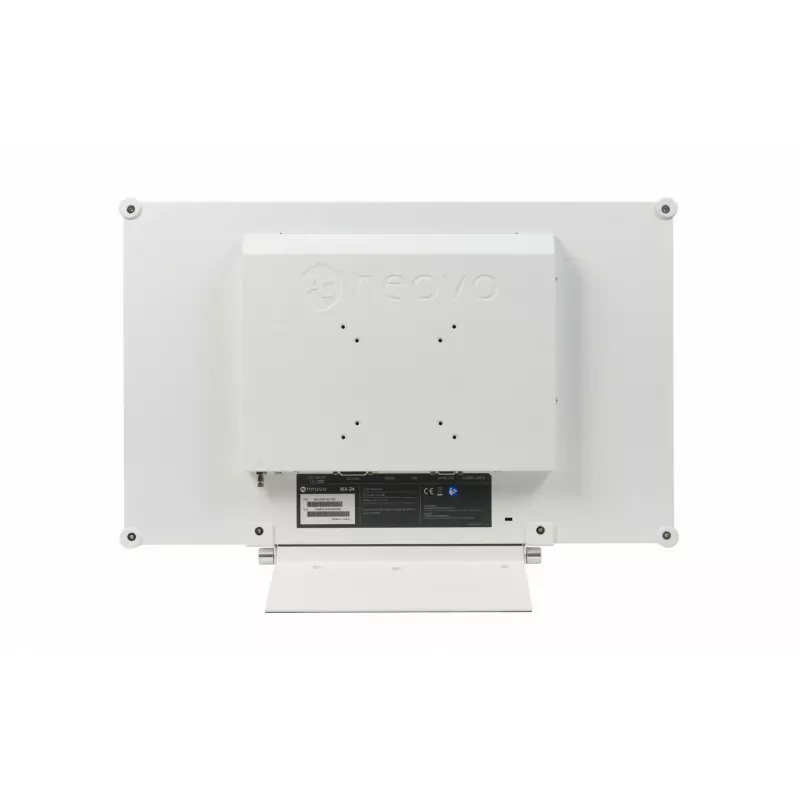

Install the MX-24 on a VESA-compatible mount or place it on a stable desk surface. Connect a video source using HDMI or DisplayPort 1.2 and configure input settings on the monitor menu. Use the PIP/PBP functions to view multiple sources simultaneously when comparing images or patient data. For clinical use, run the DICOM Part 14 calibration routine as required by your imaging workflow to maintain accurate grayscale rendering.

Recommendations

Clean the display surface with alcohol-based or standard medical cleaning solutions as needed; the NeoV Optical Glass coating is treated for acid and alkali resistance. Follow facility protocols for periodic DICOM calibration and use the supplied medical-grade power supply to ensure EN/IEC 60601-1 compliance and safe operation.
