Montagem Keystone 1 porta DeLOCK 86745

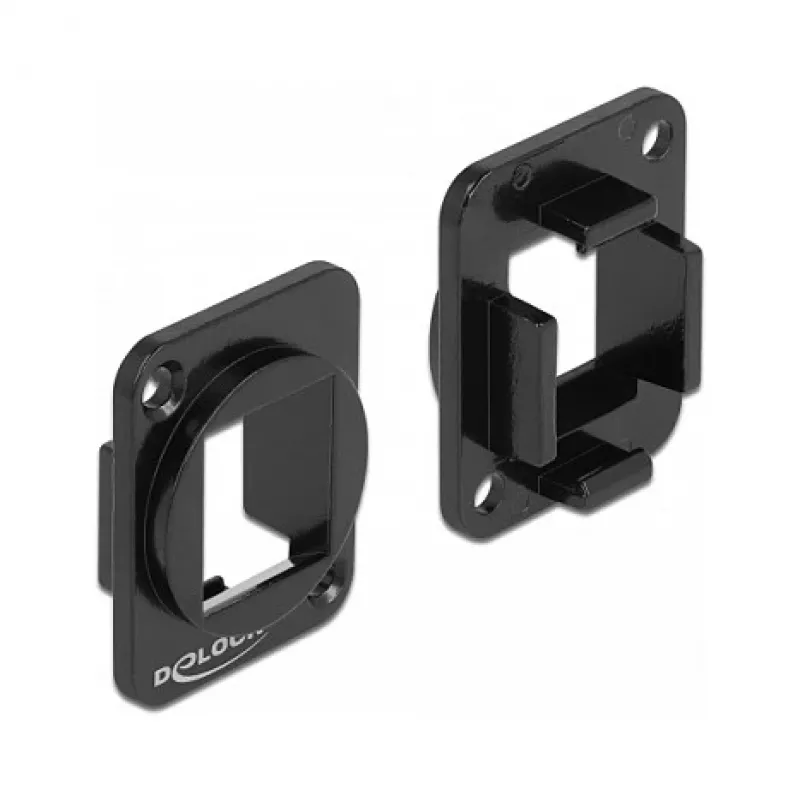

The DeLOCK Keystone Mounting 1 Port (model 86745) is a metal mounting adapter intended for panels or enclosures with D-type openings, commonly used for XLR connectors and keystone jacks. Constructed from durable metal with a black finish, it provides a standardized one-port opening that accepts a single keystone module for secure snap-in installation.

Advantages

This keystone holder offers a compact, standardized frame for one keystone module, ensuring consistent fit in D-type panel cutouts. The metal construction enhances mechanical strength and longevity, while the black finish delivers a neutral appearance that integrates with professional and home installations. The snap-in design simplifies installation and replacement of keystone modules without tools.

Suitable for

• Mounting a single keystone jack in panels or cases with D-type openings
• Organizing audio/video connectors such as XLR in control racks or equipment enclosures
• Replacing or adding one-port keystone modules in custom panels

Key specifications

• Brand: DELOCK
• Model / MPN: 86745
• EAN: 4043619867455
• Material: Metal
• Colour: Black
• Ports: 1 keystone opening (standard size for keystone modules)

How to use

Install the DeLOCK Keystone Mounting into a panel or enclosure with a compatible D-type cutout. Push a standard keystone module into the opening until it snaps into place. To remove or replace the module, press the retention tabs as required and pull the module out. Ensure the panel thickness and cutout match the keystone holder’s standardized dimensions before installation.

Recommendations

For reliable results, verify compatibility of the keystone module and the panel cutout dimensions prior to mounting. Use in indoor environments or protected installations to prevent corrosion and mechanical damage.
