Motor de rotação Eurolite MD-1015 preto

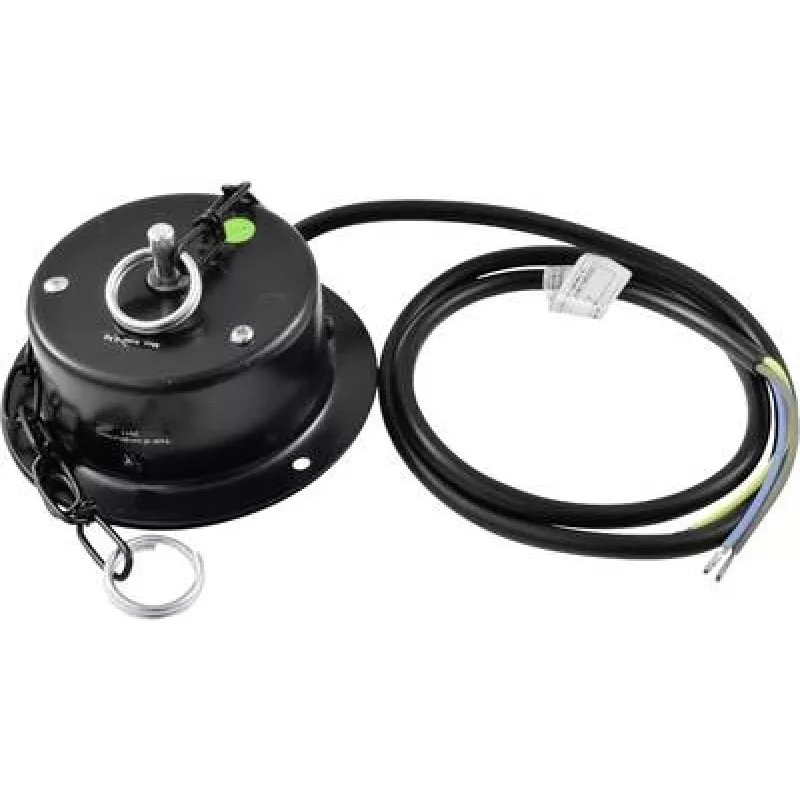

The Eurolite MD-1015 Rotary motor in black is a compact drive unit designed to rotate mirror balls and similar suspended decorative items. It operates at 230 V, 50 Hz, and is intended for fixed installation where slow, continuous rotation is required. The motor weighs 300 g and has dimensions of 113 x 133 x 58 mm. It is supplied with open cable ends and delivers 1.5 rotations per minute. The specified maximum load is 3 kg including chains and fixation material, which corresponds to Eurolite mirror balls up to 30 cm diameter.

Advantages

The MD-1015 provides a steady, low-speed rotation (1.5 RPM) suitable for mirror ball effects and similar applications. Its compact size and low weight simplify mounting and integration into existing rigging. Supplied with open cable ends for flexible electrical connection, the motor supports professional installations when used together with appropriate safety fittings and secondary attachments.

Suitable for

Key specifications

How to use

Mount the MD-1015 on a suitable overhead support capable of taking the combined load and dynamic forces. Attach the mirror ball with its chain and fixation material, ensuring the total weight does not exceed 3 kg. Connect the motor to a 230 V, 50 Hz supply using appropriate cable terminations and secure electrical connections. Ensure the unit is oriented and fastened so the rotating mirror ball has sufficient clearance to rotate freely without obstruction.

Recommendations

For professional use in public venues and discotheques, comply with EN DIN 15560 standards. The motor must always be installed with a secondary safety attachment and the installation should be inspected and approved by a qualified expert before first operation.
