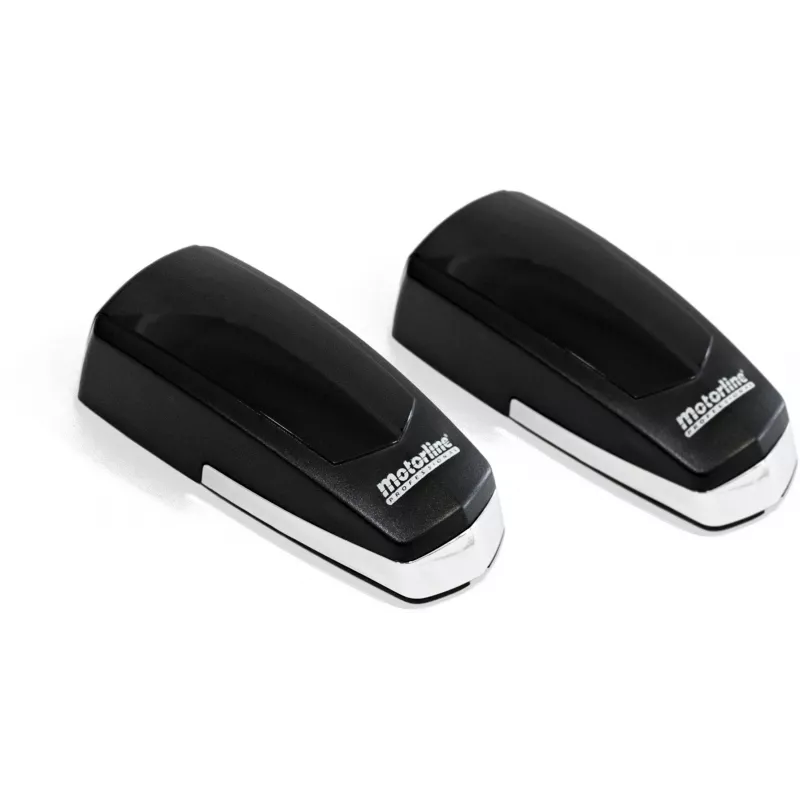

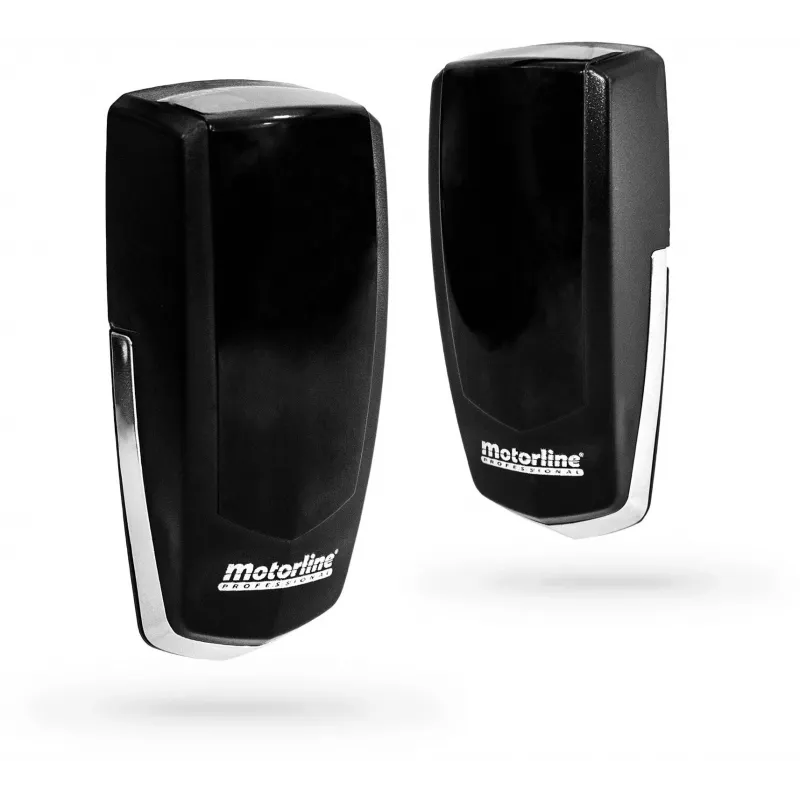

Motorline MF30 Barreiras de luz de relé (001PLM10217017)

The Motorline MF30 relay photocells are high-performance photoelectric safety sensors designed for gate automation, garage doors, and access control systems. Featuring modulated infrared technology with a detection range of up to 30 meters, these photocells ensure reliable obstacle detection and safety compliance. The relay output (NO/NC selectable) allows easy integration with various control panels.

Advantages

Robust IP54-rated housing for outdoor use; anti-interference synchronization for stable operation; LED status indicators for easy alignment; low power consumption (30 mA per pair); wide operating temperature range (-20°C to +60°C).

Suitable for

• Gate automation systems
• Garage door safety
• Access control entrances
• Industrial door safety

Key specifications

• Technology: Modulated Infrared
• Detection Range: Up to 30 meters
• Output: Relay (NO/NC selectable)
• Power Supply: 12-24V AC/DC
• Current Consumption: 30 mA (per pair)
• Relay Contact Rating: Max 1A / 30V DC
• Response Time: < 20 ms
• Ingress Protection: IP54
• Operating Temperature: -20°C to +60°C
• Synchronization: Yes (anti-interference)
• Mounting: Surface Mount
• Housing Material: ABS Plastic
• Beam Type: Single Beam
• Status Indicators: LED

Recommendations

For optimal performance, ensure proper alignment during installation and use within specified voltage and temperature ranges. Suitable for both indoor and outdoor applications with adequate weather protection.
