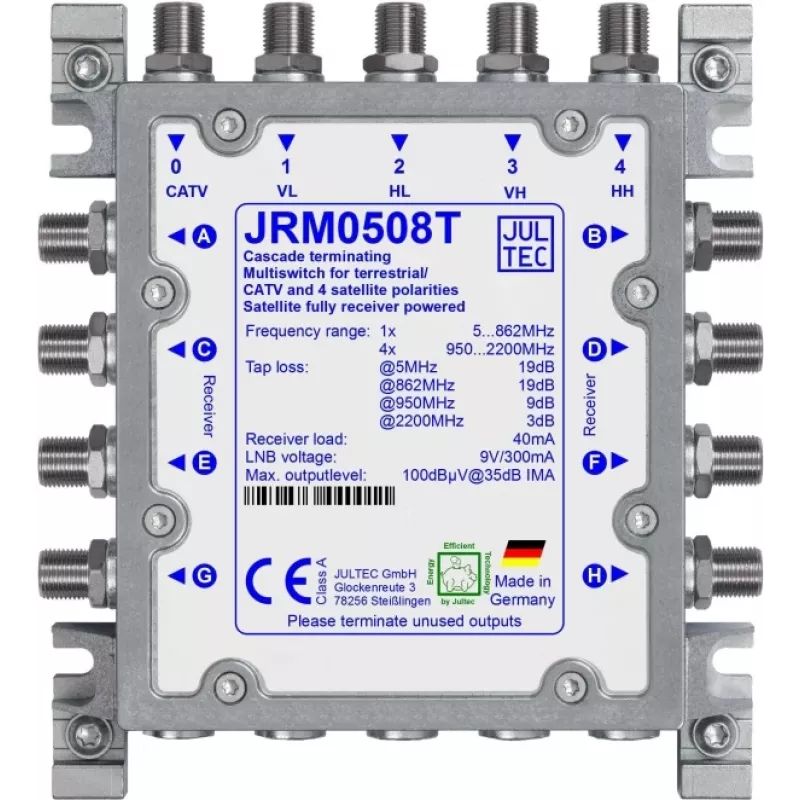

Multiswitch JULTEC JRM0508T 5/8

The JULTEC JRM0508T is a professional 5/8 multiswitch designed for distributing satellite and terrestrial TV signals to up to 8 receivers. It combines 4 SAT inputs and 1 terrestrial input, making it ideal for multi-room installations in residential or commercial buildings. The unit is receiver-powered and supports DiSEqC 2.0 for advanced switching control.

Advantages

Compact and reliable indoor multiswitch with passive terrestrial path and return path capability (5-65 MHz). Easy to install with receiver-powered operation, eliminating the need for an external power supply. High isolation between inputs and outputs ensures minimal signal interference.

Suitable for

• Multi-room satellite TV distribution
• Single-cable systems with up to 8 receivers
• Combined SAT and terrestrial signal distribution

Key specifications

• Number of SAT Inputs: 4
• Number of Terrestrial Inputs: 1
• Number of Receiver Outputs: 8
• SAT Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 5 - 862 MHz
• SAT Attenuation/Gain: 0 dB (Unity Gain)
• Terrestrial Path Type: Passive
• Power Supply Type: Receiver Powered
• DiSEqC Compatibility: DiSEqC 2.0
• LNB Power Supply: 18V / 22kHz (from receivers)
• Return Path Capability: Yes (5-65 MHz)
• Input Isolation (SAT-SAT): >30 dB
• Input Isolation (SAT-Terrestrial): >30 dB
• Output Isolation (SAT-SAT): >25 dB
• Max. Output Level SAT: 90 dBµV
• Max. Output Level Terrestrial: 80 dBµV
• Power Consumption: < 30 mA per receiver
• Mounting Type: Indoor

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper grounding. Compatible with all standard satellite receivers supporting DiSEqC 1.0/2.0.
