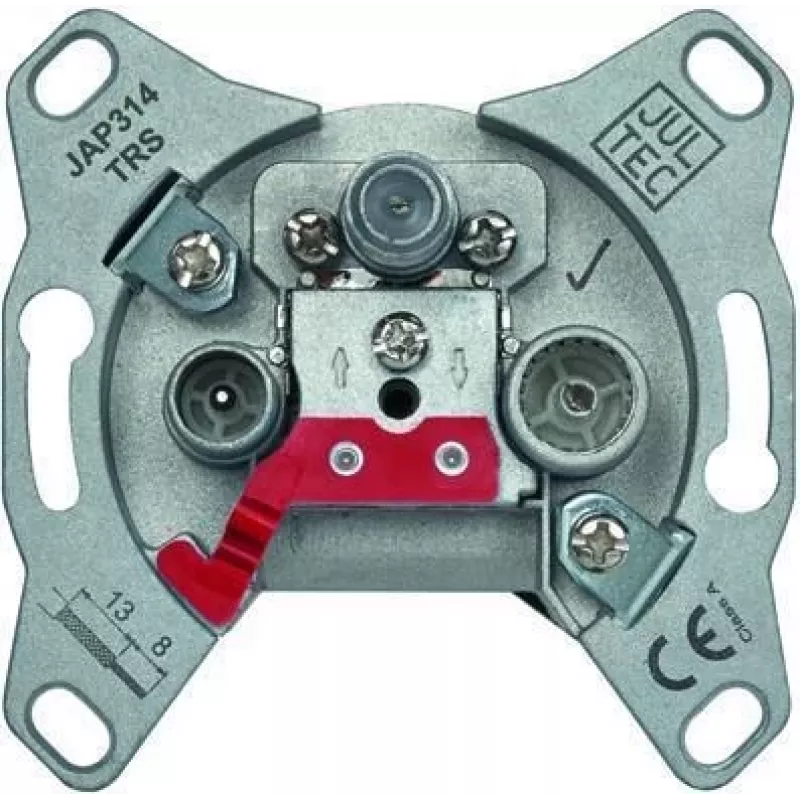

Jultec JAP314TRS tomada de antena de passagem, 3 saídas (TV, rádio, SAT), atenuação de derivação 14 dB, encastrada, branco

The Jultec JAP314TRS is a pass-through antenna socket that stands out with its triple output configuration, delivering TV, Radio, and SAT signals simultaneously from a single wall plate. Unlike basic splitters, it maintains a low pass-through attenuation of just 1.5 dB, ensuring downstream devices receive a strong signal. The 14 dB tap attenuation balances signal levels for connected receivers, while DC pass-through for SAT simplifies satellite system setups by allowing remote powering of LNBs.

Highlights

• Three outputs: TV (IEC male), Radio (IEC female), SAT (F-type female)
• Wide frequency coverage: 5–862 MHz for TV/Radio, 950–2400 MHz for SAT
• Low pass-through attenuation: 1.5 dB for both TV/Radio and SAT
• DC pass-through for SAT up to 500 mA, enabling LNB powering
• Class A shielding for superior interference rejection
• Flush-mounted design for a clean, professional finish

In daily use

Installation is straightforward: the JAP314TRS fits standard flush-mounted back boxes, and its 75 Ohm impedance ensures compatibility with common coaxial cabling. The return loss of >10 dB minimizes signal reflections, preserving signal integrity across the entire frequency range. Whether you're setting up a home entertainment system or a small distribution network, this socket provides reliable performance with minimal signal loss.

Full specifications

• Product type: Pass-through antenna socket
• Number of outputs: 3 (TV, Radio, SAT)
• Connector types: TV – IEC male, Radio – IEC female, SAT – F-type female
• Frequency range TV/Radio: 5–862 MHz
• Frequency range SAT: 950–2400 MHz
• Tap attenuation TV/Radio: 14 dB
• Tap attenuation SAT: 14 dB
• Pass-through attenuation TV/Radio: 1.5 dB
• Pass-through attenuation SAT: 1.5 dB
• DC pass-through for SAT: Yes, max 500 mA
• Impedance: 75 Ohm
• Shielding class: Class A
• Return loss: >10 dB
• Installation type: Flush-mounted

Final note

The Jultec JAP314TRS is a robust solution for distributing terrestrial and satellite signals with minimal loss, making it a dependable choice for both residential and commercial installations.
