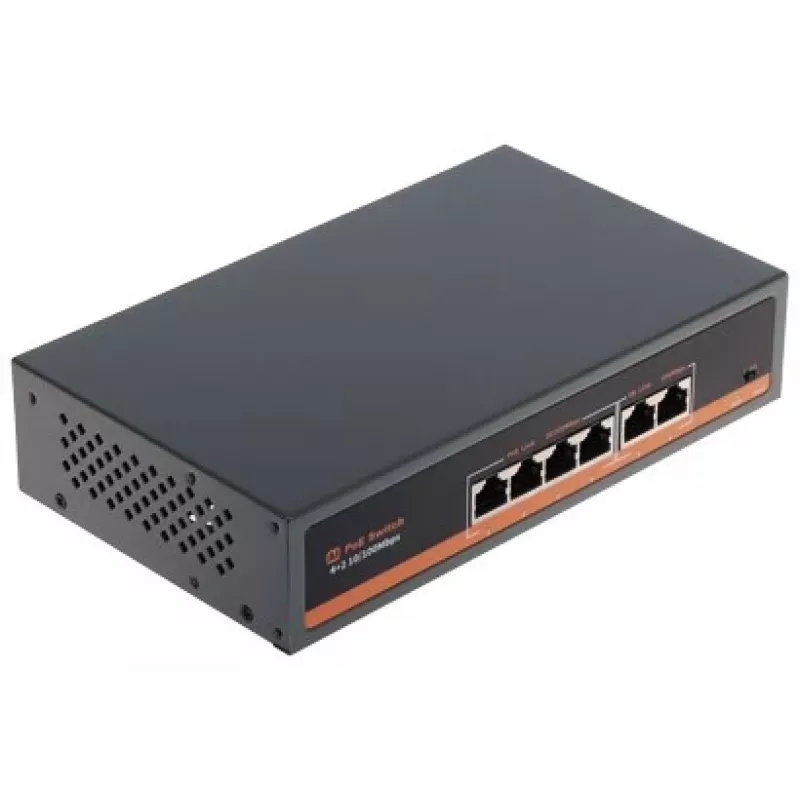

NO NAME APTI-POE0402-60W-V2 switch PoE de 4 portas com 2 portas uplink, 60W de orçamento, IEEE 802.3af/at, caixa metálica

Deliver up to 30W per port across 4 PoE ports with a total 60W power budget, enabling IP cameras, VoIP phones, and wireless access points to operate without separate power injectors. The APTI-POE0402-60W-V2 pairs four 10/100 Mbps PoE ports with two 10/100 Mbps uplink ports, giving you a compact, metal-housed switch that mounts on a desk or wall and handles -10°C to 55°C operating temperatures.

Overview

This unmanaged PoE switch follows IEEE 802.3af/at standards and automatically detects powered devices, negotiating the right voltage and current for each connection. With a 1.2 Gbps switching capacity and 0.89 Mpps forwarding rate, it moves traffic efficiently for small surveillance or office networks. The 1K MAC address table supports up to 1024 devices, while 2K jumbo frames help reduce overhead on large transfers.

What stands out

• Extend Mode pushes PoE and data up to 250 m at 10 Mbps, far beyond the standard 100 m limit—ideal for long camera runs.
• VLAN Isolation mode separates ports to stop broadcast storms and improve security in multi-tenant or camera-only setups.
• LED indicators for Power, Link/Act, and PoE status give instant visual confirmation of port activity and power delivery.
• External 52V DC power adapter included, so the switch is ready to deploy out of the box.

Technical details

• 4 × 10/100 Mbps PoE ports (IEEE 802.3af/at, up to 30W each)
• 2 × 10/100 Mbps uplink ports
• Total PoE power budget: 60W
• Switching capacity: 1.2 Gbps
• Packet forwarding rate: 0.89 Mpps
• MAC address table: 1K entries
• Jumbo frame support: 2K bytes
• Network standards: IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
• Operating temperature: -10°C to 55°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 5% to 95% non-condensing
• Metal housing, desktop or wall-mountable
• External DC 52V power adapter included

Our verdict

For small PoE deployments that need long-distance reach or port isolation, the APTI-POE0402-60W-V2 delivers 60W across four ports in a rugged metal chassis. Extend Mode and VLAN Isolation set it apart from basic unmanaged switches, making it a practical choice for IP camera networks and edge installations.
