Bomba PMC 5/N (MARINA) - bomba centrífuga 0,5 PS 230V com 20 m de altura de elevação máx.

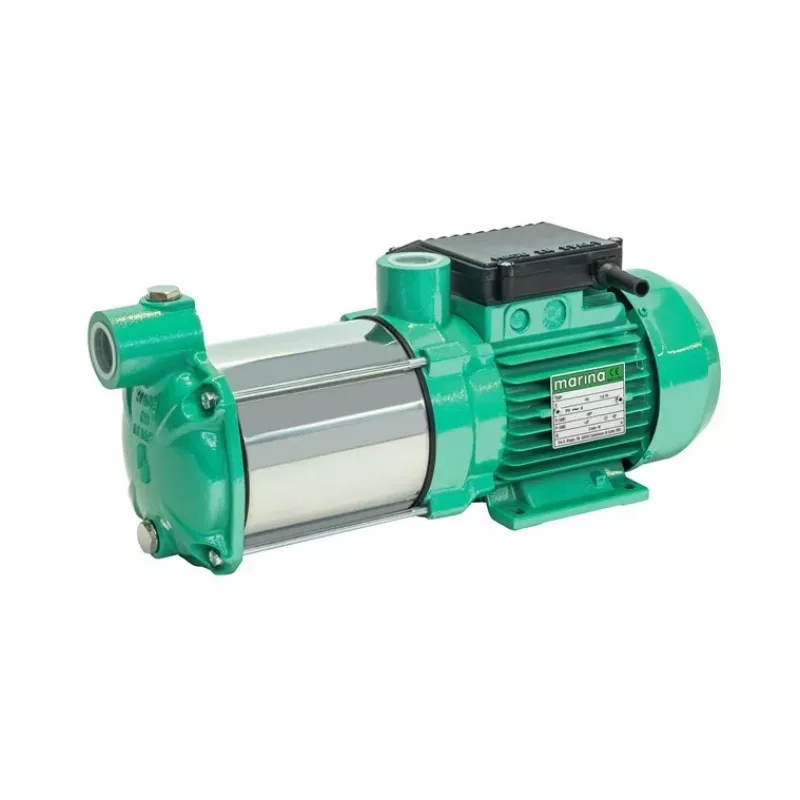

The Pump PMC 5/N from MARINA stands out with its robust cast iron body and efficient Noryl impeller, delivering reliable water transfer for domestic and light commercial applications. Unlike many pumps in its class, it offers a balanced combination of solid flow rate and high head, making it suitable for a wide range of tasks from garden irrigation to pressure boosting.

Highlights

• Powerful 0.37 kW (0.5 HP) single-phase motor for dependable performance
• Maximum flow rate of 40 L/min (2.4 m³/h) ensures quick water movement
• Impressive maximum head of 20 m for high-pressure delivery
• Durable cast iron pump body with corrosion-resistant Noryl impeller
• Stainless steel motor shaft (AISI 303) and ceramic/graphite mechanical seal for long service life
• IP44 protection rating allows safe operation in dusty or damp environments

In daily use

This centrifugal pump is ideal for clean water applications such as filling tanks, garden irrigation, and boosting water pressure in residential systems. Its 1-inch inlet and outlet connections allow easy integration with standard piping, while the 7 m suction lift provides flexibility in installation. The pump operates quietly and efficiently, with a maximum liquid temperature of 35°C and ambient temperature up to 40°C, making it suitable for various climates.

Full specifications

• Brand: MARINA
• Model: Pump PMC 5/N
• MPN: 102194160
• EAN: 8006414105067
• Pump type: Centrifugal pump
• Motor power: 0.37 kW (0.5 HP)
• Voltage: 230V, single-phase, 50 Hz
• Max flow rate: 40 L/min (2.4 m³/h)
• Max head: 20 m
• Max suction lift: 7 m
• Inlet/outlet diameter: 1 inch (DN25)
• Pump body material: Cast iron
• Impeller material: Noryl
• Motor shaft material: Stainless steel (AISI 303)
• Mechanical seal: Ceramic/Graphite/NBR
• Insulation class: F
• Protection rating: IP44
• Max liquid temperature: 35°C
• Max ambient temperature: 40°C
• Motor type: 2-pole asynchronous

Final note

With its durable construction and reliable performance, the Pump PMC 5/N is a smart choice for anyone needing a versatile and efficient water pump for everyday use.
