Conjunto de machos de roscar manuais de rosca esquerda DIN 352 6H HSS EL-CUT M16 x 2.0

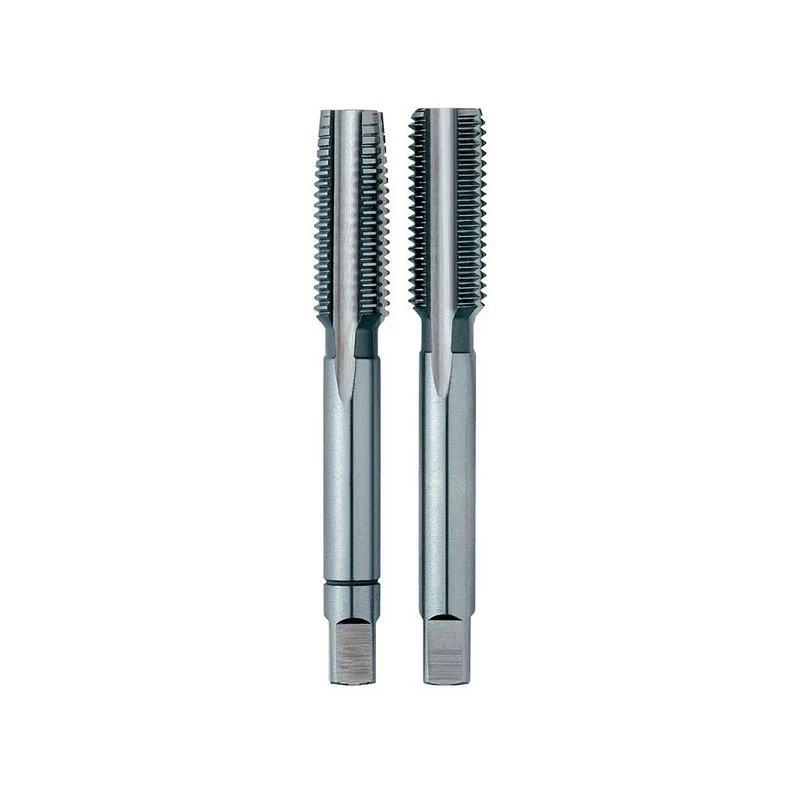

Hand tap for cutting M16 metric coarse left-hand threads with a 2.0 mm pitch. The EL-CUT treatment on high-speed steel reduces friction, improves chip evacuation, and extends tool life when threading steel, non-ferrous metals, and cast iron.

Advantages

Precision ground to DIN 352 tolerance class 6H, this tap produces threads that meet international standards. Four straight flutes provide efficient chip removal, while the 3–5 thread chamfer eases starting and reduces cutting pressure. The left-hand orientation is ideal for reverse-thread applications such as rotating shafts, turnbuckles, and certain automotive components.

Suitable for

• General purpose internal threading in steel, non-ferrous metals, and cast iron
• Left-hand thread requirements on rotating shafts and assemblies
• Maintenance, repair, and production environments
• Use with a tap wrench or machine holder

Key specifications

• Thread: M16 x 2.0 metric coarse, left hand
• Standard: DIN 352, tolerance 6H
• Material: High-speed steel (HSS) with EL-CUT treatment
• Overall length: 95 mm; thread length: 30 mm
• Shank diameter: 12 mm; square drive: 9 mm
• Four straight flutes; chamfer: 3–5 threads

Recommendations

Use a suitable cutting fluid to maximize tool life and thread quality. For through holes, consider following with a bottoming tap from the same set to complete threads near the bottom.
