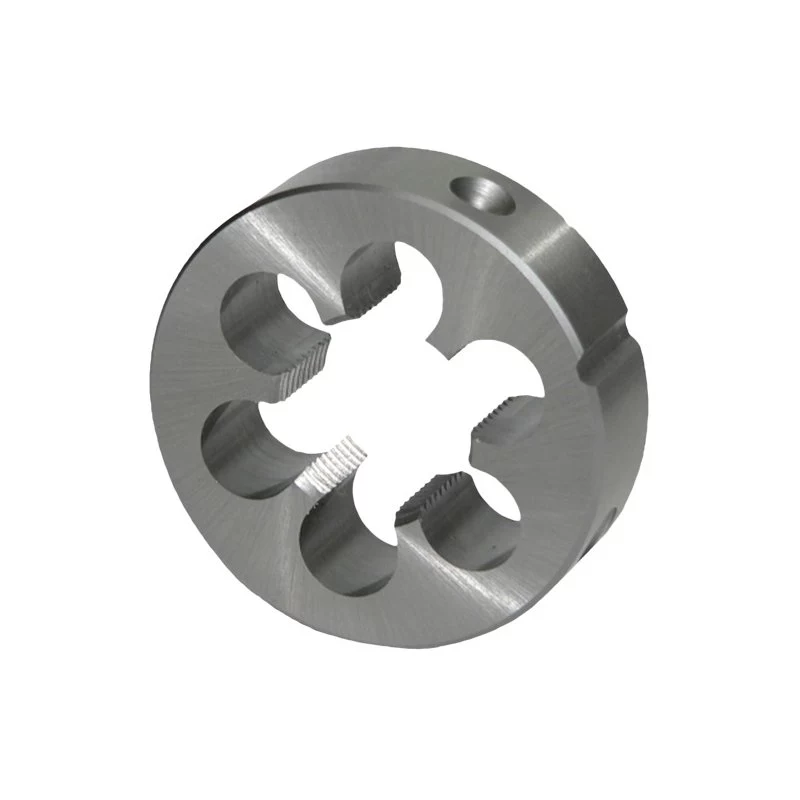

Cossinetes de rosca fina M24x1,5 redondos, HSS, DIN 22568, tolerância 6g

Cutting precise external threads on a 24 mm fine-pitch bolt can be slow and inaccurate with a worn or low-quality die. This round die solves that problem by pairing high-speed steel with a ground thread profile for clean, repeatable M24x1.5 threads.

Who is it for

Machinists, metalworkers, and maintenance technicians who need a dependable die for hand or machine threading on steel, cast iron, non-ferrous metals, or plastics.

Main features

• ISO metric fine thread, M24x1.5, right-hand cutting direction
• High-speed steel (HSS) construction with bright finish
• DIN 22568 round die form, 55 mm outer diameter, 16 mm thickness
• Thread tolerance class 6g for standard external threads
• Ground thread profile for accurate, long-lasting cutting edges

Specifications

• Thread standard: ISO Metric
• Nominal thread diameter: 24 mm
• Thread pitch: 1.5 mm
• Thread type: Fine pitch
• Material: High-speed steel (HSS)
• Die standard: DIN 22568
• Thread tolerance class: 6g
• Die form: Round die
• Cutting direction: Right-hand thread
• Outer diameter: 55 mm
• Thickness: 16 mm
• Application: External threading
• Suitable materials: Steel, cast iron, non-ferrous metals, plastics
• Usage: Hand and machine use
• Surface finish: Bright
• Manufacturing method: Ground
• Thread angle: 60 degrees

Tips

Use a suitable die stock and cutting fluid when threading steel or cast iron. For best results, chamfer the workpiece end before starting the thread.
