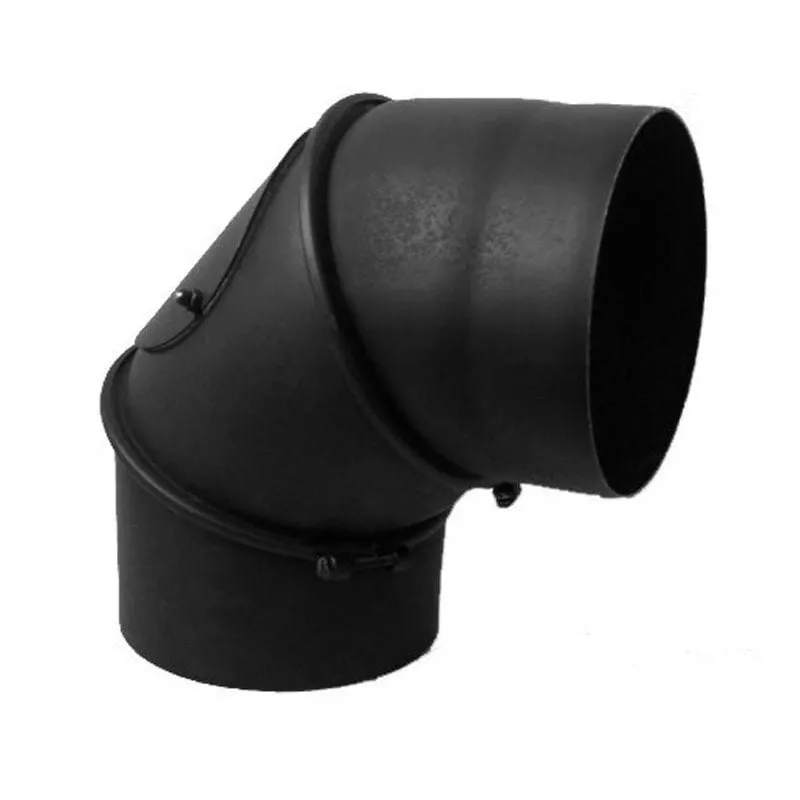

Cotovelo de chaminé 45/90° com abertura de limpeza diâmetro 150 mm, aço preto, EN 1856-2

Connecting flue pipes around obstacles or changing direction in a chimney system often requires multiple fixed-angle elbows, which can be costly and inconvenient. This adjustable elbow solves that problem by allowing on-site adjustment from 45° to 90°, ensuring a perfect fit for your installation. The integrated cleanout opening provides easy access for inspection and removal of soot or debris, maintaining optimal draft and safety.

Who is it for

This chimney elbow is intended for installers and homeowners who need a reliable, adjustable connection in solid fuel flue systems. It is suitable for wood stoves, coal boilers, and pellet heaters, and is designed for dry operating conditions in internal flue systems. Whether you are replacing an old elbow or planning a new installation, this component offers flexibility and compliance with European standards.

Main features

• Adjustable angle from 45° to 90° for versatile routing
• Integrated cleanout/inspection opening for easy maintenance
• Nominal diameter 150 mm, compatible with standard flue pipes
• Made from 1.2 mm black steel with high-temperature resistant paint
• Push-fit spigot and socket connection for quick assembly
• CE certified and compliant with EN 1856-2 for solid fuel applications
• Maximum operating temperature 600°C

Specifications

• Product type: Chimney flue elbow
• Angle adjustment range: 45° to 90°
• Nominal diameter: 150 mm
• Material: Black steel
• Material thickness: 1.2 mm
• Connection type: Spigot and socket (push-fit)
• Fuel type compatibility: Solid fuels (wood, coal, pellets)
• Maximum operating temperature: 600°C
• Finish: High-temperature resistant black paint
• Compliance: CE Certified, EN 1856-2
• Application: Connecting flue pipes to chimneys or other components
• Installation conditions: Dry operating conditions
• Corrosion resistance: Standard (for black steel)
• Number of segments: 2
• Usage: Internal flue system

Tips

For optimal performance, ensure the elbow is installed with the cleanout opening accessible for regular maintenance. Use appropriate sealing materials compatible with high temperatures and solid fuel combustion. Always follow local building regulations and the manufacturer's instructions for flue system installation. The adjustable angle allows for fine-tuning during installation, reducing the need for additional fittings.
