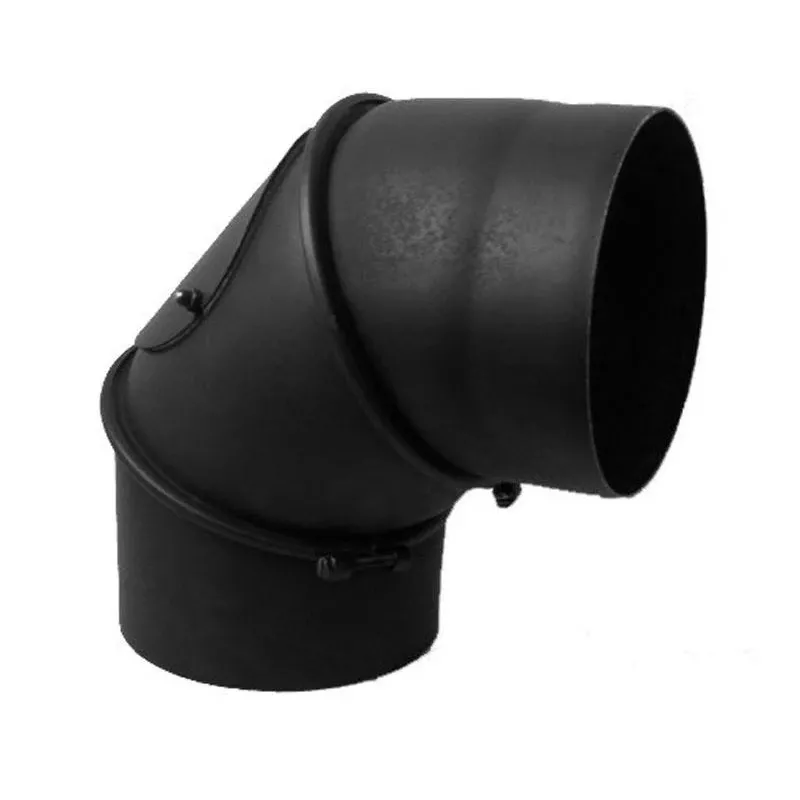

Curva para tubo de chaminé 45/90° com T de revisão, 150 mm, aço preto

This chimney flue elbow stands apart from ordinary fixed-angle connectors by combining a 45° and 90° bend in one adjustable component, plus a built-in inspection tee for easy cleaning access. Made from 1.2 mm DC01 black steel and coated with high-temperature paint, it handles flue gas temperatures up to 600°C, making it suitable for wood, coal, and peat burning appliances. The push-fit spigot and socket ends ensure a quick, secure installation without special tools, while the 0-90° adjustment range lets you route the flue precisely around obstacles or through tight spaces. Compliant with EN 1856-2 and CE certified, this elbow is a reliable choice for solid fuel flue systems.

Highlights

• Adjustable angle from 0° to 90° for flexible routing
• Integrated inspection/cleanout port simplifies maintenance
• Durable 1.2 mm DC01 black steel with high-temperature paint
• Push-fit spigot and socket connection for tool-free assembly
• Rated for flue gas temperatures up to 600°C
• EN 1856-2 compliant and CE certified

In daily use

Installation is straightforward: measure the required angle, adjust the elbow, and push the spigot end into the mating socket of the adjacent flue pipe. The integrated tee allows you to remove soot and debris without dismantling the entire flue run, reducing maintenance time. The black finish resists corrosion and blends with standard flue components. For best results, ensure the flue system is properly supported and sealed according to local building codes.

Full specifications

• Product type: Chimney flue elbow
• Nominal diameter: 150 mm
• Material: DC01 black steel
• Wall thickness: 1.2 mm
• Angle adjustment range: 0-90°
• Special feature: Integrated inspection/cleanout port
• Color: Black
• Maximum operating temperature: 600°C
• Application: Solid fuel appliance flue systems
• Standard compliance: EN 1856-2
• Connection type: Spigot and socket
• Finish: High-temperature resistant paint
• Fuel compatibility: Wood, coal, peat
• Certification: CE Certified
• Installation method: Push-fit

Final note

For a dependable, adjustable flue elbow that simplifies both installation and maintenance, this 150 mm model delivers the performance and compliance required for solid fuel heating systems.
