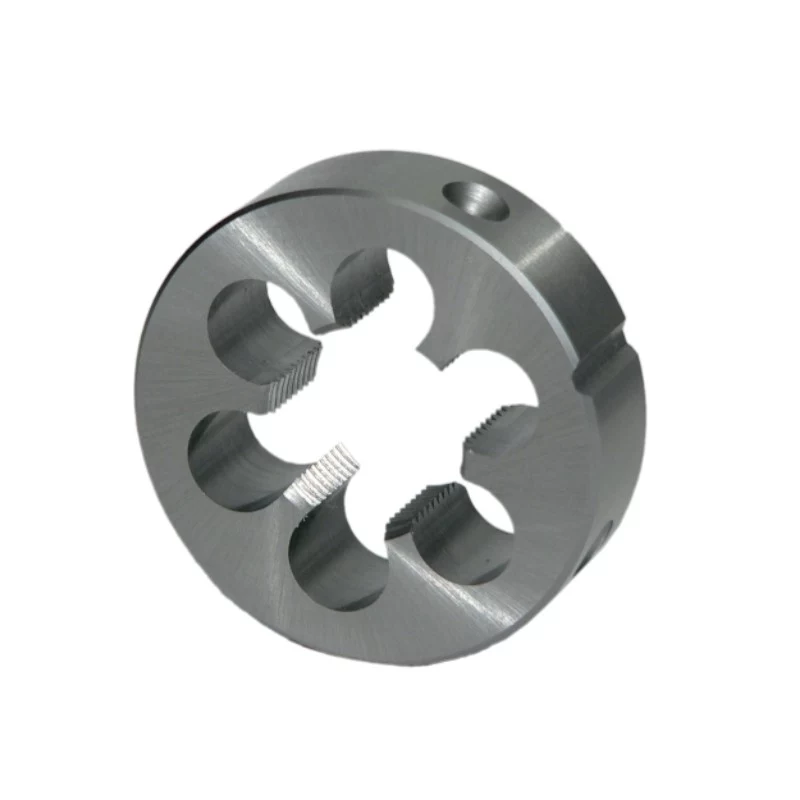

NO NAME FANAR DIE M16 LEFT THREAD Cossinete redondo de roscar, HSS, DIN 223, 6g, métrico M16 x 2,0 mm, esquerdo

This round threading die cuts precise left-hand external threads on M16 bolts and rods. Made from high-speed steel with a bright finish, it delivers clean, accurate threads in general-purpose steels and non-ferrous metals. The M16 x 2.0 mm coarse pitch and 6g tolerance class ensure reliable, standard-compliant results.

Advantages

High-speed steel construction offers excellent wear resistance and long tool life. The left-hand thread direction is essential for applications requiring reverse-threaded fasteners, such as rotating shafts or turnbuckles. The straight flute design efficiently evacuates chips, reducing clogging and improving thread quality. The bright finish resists corrosion and facilitates smooth cutting. The die conforms to DIN 223 (EN 22568), guaranteeing dimensional accuracy and interchangeability with standard die stocks.

Suitable for

• Creating left-hand M16 threads on bolts, studs, and rods
• Repairing damaged left-hand threads
• General maintenance and fabrication in workshops
• Working with mild steel, alloy steel, and non-ferrous metals like aluminum and brass
• Use with a manual die stock or die holder

Key specifications

• Thread size: M16 x 2.0 mm (coarse pitch)
• Thread direction: Left hand (LH)
• Die type: Round threading die
• Material: High-speed steel (HSS)

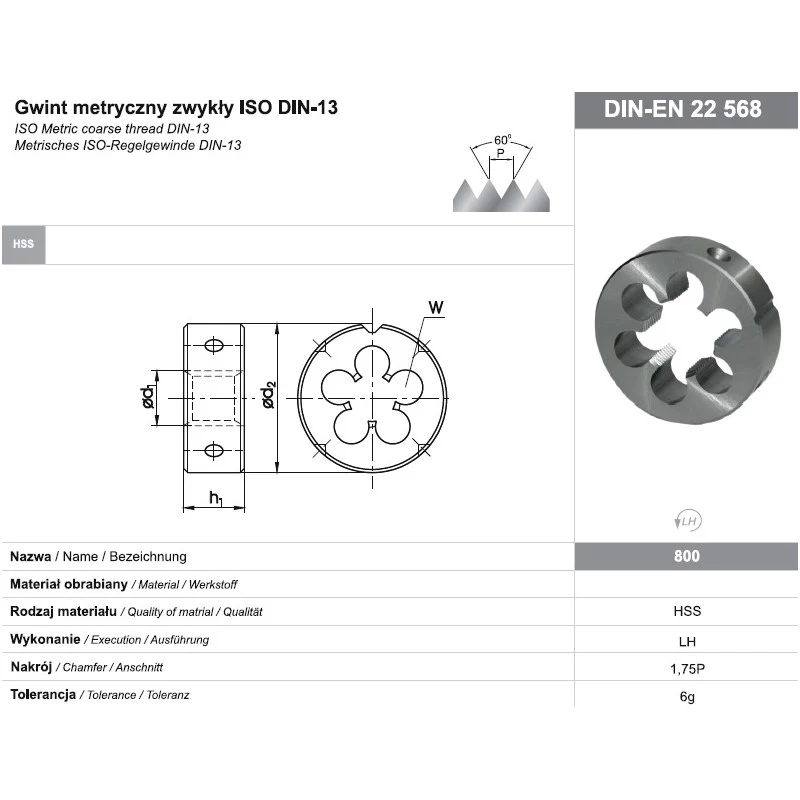

• Standard: DIN 223 (EN 22568)
• Tolerance class: 6g
• Outer diameter: 38 mm
• Thickness: 10 mm
• Number of flutes: 3
• Cutting edge geometry: Straight flute
• Finish: Bright

Recommendations

For best results, use a quality die stock that securely holds the die and apply appropriate cutting fluid. Ensure the workpiece is properly chamfered before starting the thread.
