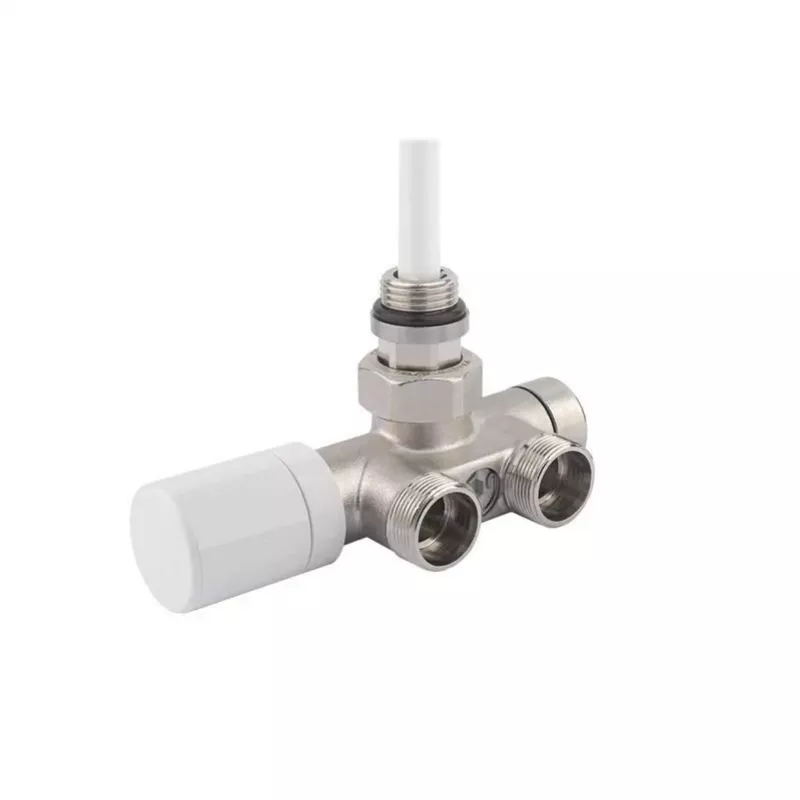

Giacomini V81112Q corpo de válvula termostática para radiador 1/2" x 3/4" eurocone angular, latão niquelado

Thermostatic radiator valve body engineered for precise flow control in hydronic heating systems. The angle pattern with 1/2" male radiator connection and 3/4" Eurokonus pipe connection delivers reliable performance in tight spaces, while the nickel-plated brass body ensures durability and corrosion resistance.

Advantages

This valve body combines robust construction with versatile compatibility. The nickel-plated brass resists corrosion and maintains a clean appearance over time. Its angle design simplifies installation in corner radiator connections, and the Eurokonus fitting provides a secure, leak-free seal without additional adapters. Suitable for both flow and return sides, it offers flexibility in system design. The valve supports water and glycol solutions up to 30%, making it ideal for modern heating systems.

Suitable for

• Hydronic radiator heating systems in residential and commercial buildings
• Installations requiring a compact angle valve for space-constrained areas
• Systems using thermostatic heads from Giacomini R460 or R470 series
• Heating circuits with water or glycol mixtures up to 30%
• Flow or return piping configurations

Key specifications

• Valve type: Thermostatic Radiator Valve (TRV) body
• Pattern: Angle (corner)
• Radiator connection: 1/2" male thread (ISO 228/1)
• Pipe connection: 3/4" Eurokonus (EK)
• Body material: Nickel-plated brass
• Max operating pressure: 10 bar (145 psi)
• Max operating temperature: 110 °C (230 °F)
• Flow coefficient (Kv): 0.7 m³/h
• Compatible actuators: Giacomini thermostatic heads (R460, R470 series)
• Fluid: Water, glycol solutions up to 30%
• Standard compliance: EN 215

Recommendations

Pair this valve body with a Giacomini thermostatic head for automatic room temperature control. For optimal performance, install on the flow side of the radiator and ensure proper system flushing before commissioning. Regular maintenance of the Eurokonus connection will extend service life.
