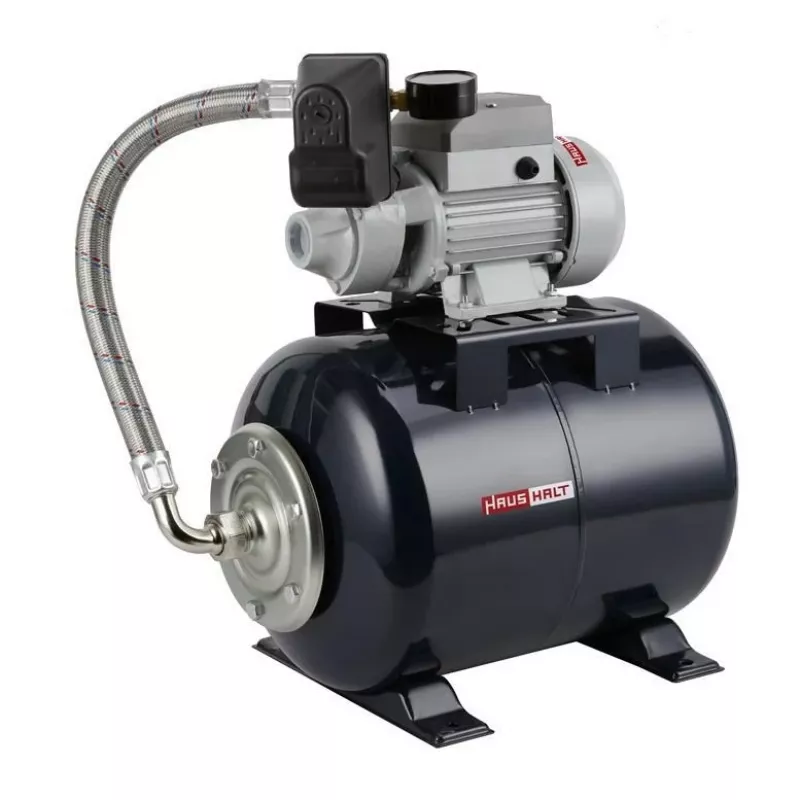

Hidróforo HF-370 QB 370W 24L bomba periférica com depósito de 24L

With a maximum flow rate of 2100 L/h and a 35 m head, this hydrophore delivers powerful water pressure for domestic and light commercial use. The 370 W peripheral pump is paired with a 24 L tank to maintain stable pressure and reduce pump cycling.

Overview

The Hydrophore HF-370 QB combines a robust cast iron pump body with a brass impeller and stainless steel shaft for durability. It is designed for clean water supply, garden irrigation, and pressure boosting in residential systems. The 24 L tank stores pressurized water, ensuring consistent flow and extending pump life by minimizing frequent starts.

What stands out

• High flow rate of 2100 L/h for efficient water delivery
• Maximum head of 35 m supports multi-storey buildings
• 24 L tank reduces pump cycling and maintains steady pressure
• Durable construction: cast iron body, brass impeller, stainless steel shaft
• Pressure switch range 1.5–3.0 bar for automatic operation
• IP44 protection class suitable for outdoor installation

Technical details

• Motor power: 370 W
• Voltage: 230 V, 50 Hz
• Max flow rate: 2100 L/h (35 L/min)
• Max head: 35 m
• Max suction lift: 8 m
• Inlet/outlet diameter: 1 inch (DN25)
• Pump type: Peripheral
• Pump body material: Cast iron
• Impeller material: Brass
• Shaft material: Stainless steel
• Max liquid temperature: 35 °C
• Pressure switch range: 1.5–3.0 bar
• Protection class: IP44
• Insulation class: B
• Cable length: 1.5 m

Our verdict

A reliable and efficient hydrophore for consistent water pressure in homes and small commercial applications. The combination of a powerful peripheral pump and a 24 L tank ensures smooth operation and long service life.
