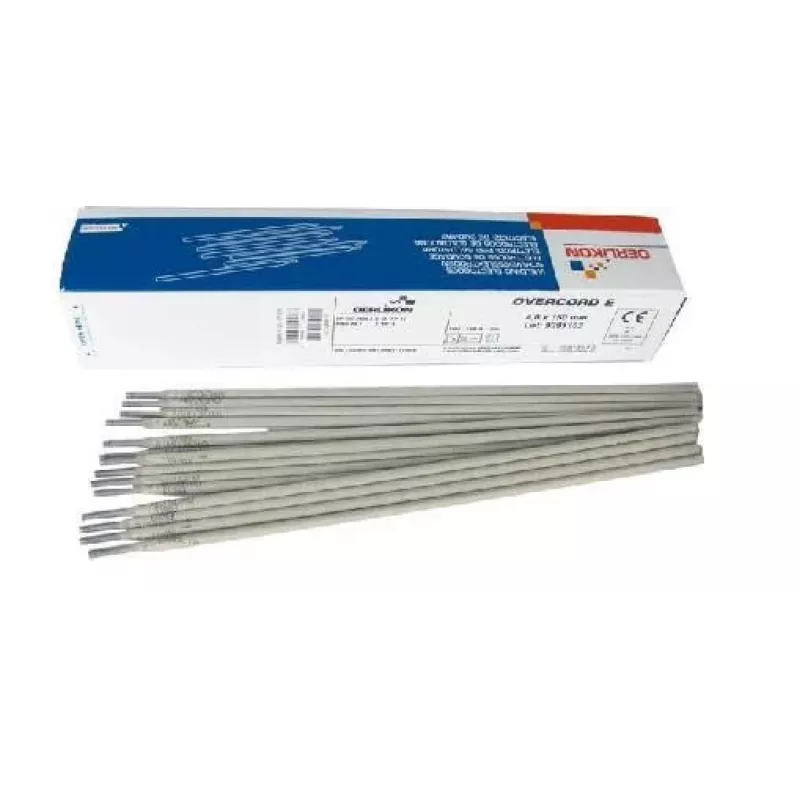

OERLIKON Elétrodo de soldadura FI 4,0 mm rosa (93 unid.) 4,5 kg OVERCORD - elétrodos de soldadura rutílicos E6013

Welders often struggle with electrodes that produce excessive spatter, poor slag removal, or inconsistent arc stability, leading to rework and wasted time. The OERLIKON Electrode FI 4.0 mm Pink (93 pieces, 4.5 kg pack) OVERCORD solves these issues with a medium rutile coating that delivers a smooth, stable arc and a self-releasing slag, ensuring clean, high-quality welds with minimal cleanup. This E6013 electrode is engineered for all-position welding of unalloyed structural steels, making it a versatile choice for fabrication, repair, and construction work.

Who is it for

These electrodes are ideal for professional welders, metal fabricators, and serious DIY enthusiasts who require reliable performance on general construction steels. Whether you are working in a workshop or on a job site, the OERLIKON FI 4.0 mm Pink electrodes provide consistent results in all positions, including vertical-up and overhead, thanks to their balanced formulation and AC/DC+ compatibility.

Main features

• Rutile-coated E6013 electrode for smooth, stable arc and easy slag removal
• All-position welding capability (PA, PB, PC, PD, PE, PF) for maximum flexibility
• Excellent mechanical properties: yield strength ≥380 MPa, tensile strength 470-600 MPa
• High impact toughness: ≥47 J at 0°C, ensuring durability in low-temperature applications
• Self-releasing slag reduces post-weld cleaning time and improves productivity
• Approved by major classification societies: TÜV, CE, ABS, LR, DNV, GL, BV
• Pack contains 93 electrodes (4.5 kg), ideal for medium-scale projects

Specifications

• Electrode type: Rutile (medium coating)
• AWS classification: E6013
• EN ISO classification: E 38 0 R 11
• Electrode diameter: 4.0 mm
• Electrode length: 450 mm
• Pack weight: 4.5 kg
• Quantity per pack: 93 pieces
• Welding current: AC / DC+
• Welding positions: All positions (PA, PB, PC, PD, PE, PF)
• Base materials: Unalloyed structural steels, general construction steels
• Yield strength (ReH): min. 380 MPa
• Tensile strength (Rm): 470 - 600 MPa
• Elongation (A5): min. 22%
• Impact strength (ISO-V): min. 47 J at 0°C
• Approvals: TÜV, CE, ABS, LR, DNV, GL, BV
• Coating type: Medium rutile
• Slag type: Self-releasing

Tips

For best results, store electrodes in a dry place and re-dry if exposed to moisture. Use DC+ for deeper penetration or AC for general purpose welding. Maintain a short arc length and a slight drag angle for vertical-up welding. The self-releasing slag minimizes chipping, but a light brush will leave a clean weld ready for painting or further work.
