NVR Reolink NVS16 16 canais PoE

Reolink 16-Channel PoE NVR with built-in 4TB HDD provides continuous 24/7 recording and supports up to 16MP resolution per channel. The PoE design simplifies installation by delivering power and data over a single Ethernet cable. Local storage is ready out of the box and can be expanded to hold more footage, while remote access via the Reolink App and Client allows monitoring from a phone or PC without monthly fees.

Advantages

The NVR supports up to 16 camera channels with individual input up to 16MP, enabling detailed video capture. Built-in 4TB HDD allows uninterrupted recording with the option to upgrade storage up to 12TB. PoE technology ensures a plug-and-play setup by combining power and data on one cable, reducing installation time and cable clutter. Remote access and local viewing provide flexible monitoring options for both on-site and off-site use.

Key specifications

• Channels: 16 PoE channels
• Maximum input per channel: up to 16MP
• Pre-installed HDD: 4TB
• Maximum storage capacity: up to 12TB
• Recording: 24/7 continuous recording to local HDD
• Network: PoE for data and power over one Ethernet cable
• Remote access: Reolink App and Reolink Client (phone/PC), no monthly fees
• Compatible cameras: up to 16 Reolink IPCs

How to use

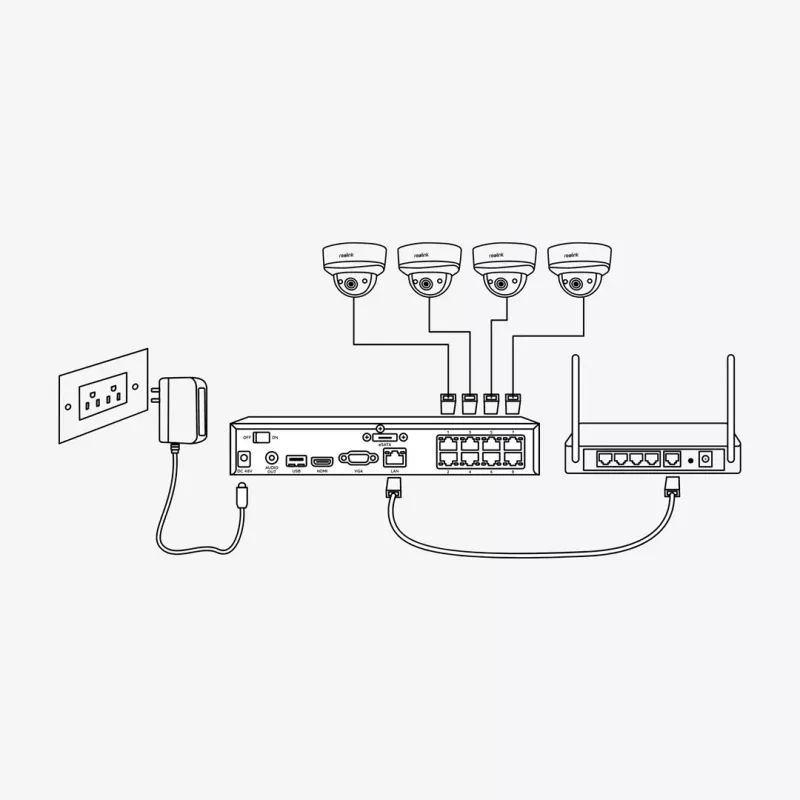

Connect Reolink IP cameras to the NVR using Ethernet cables to utilize PoE for both power and data. The NVR comes with a 4TB HDD pre-installed for immediate 24/7 recording; if more capacity is needed, replace or add drives according to the supported maximum of 12TB. Install the Reolink App on your phone or the Reolink Client on your PC to configure the system, view live feeds, play back recorded footage, and adjust recording settings and event filters for faster clip searches.

Recommendations

For reliable continuous recording, ensure proper ventilation for the NVR and place it in a stable location. Use Cat5e or Cat6 Ethernet cables for optimal PoE performance, and regularly check firmware updates via the Reolink App or Client to maintain compatibility and security.
