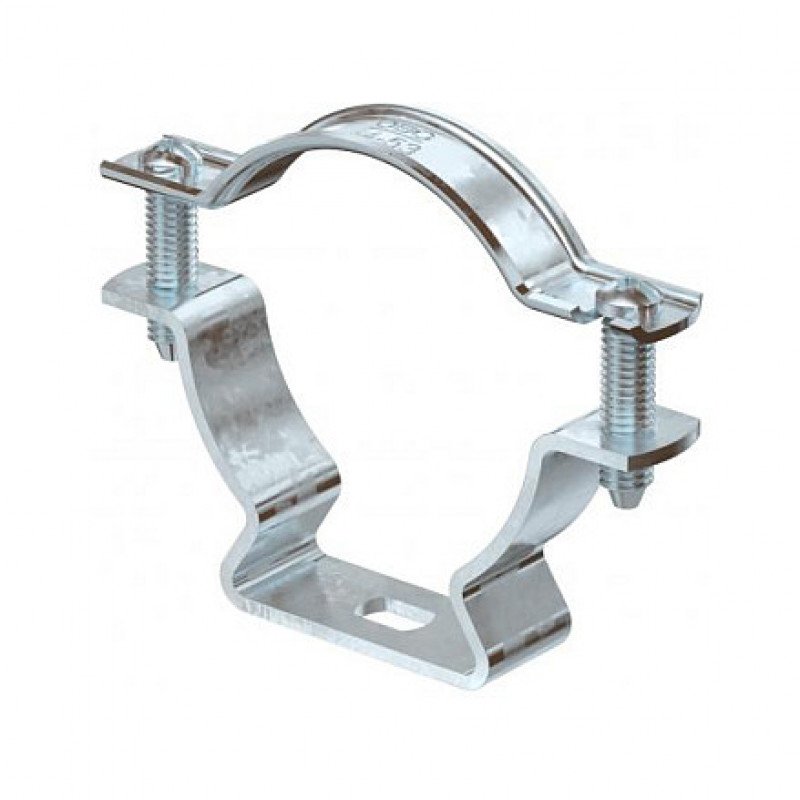

OBO BETTERMANN ASL 733 53 FT abraçadeira de distância com fenda oblonga 44-53 mm, aço galvanizado a quente

The OBO BETTERMANN ASL 733 53 FT is a professional distance clamp that keeps cables and pipes neatly spaced from walls, ceilings or mounting rails. Unlike a simple pipe saddle, this clamp includes an elongated hole which gives you valuable horizontal adjustment during installation — making alignment easier when fixing lengths of conduit, cable tray or tubing.

Highlights

• Clamping diameter range from 44 mm to 53 mm
• Hot-dip galvanized steel provides lasting corrosion protection indoors and outdoors
• Elongated mounting slot (7 x 15 mm) allows flexible positioning
• 20 mm standoff distance keeps pipes and cables clear of the surface
• Halogen-free and UV-resistant material suitable for demanding environments

In daily use

The quick, one-point fastening saves time when securing multiple runs. Slide the clamp over the cable or pipe, insert a suitable screw or bolt through the slot, and then adjust the lateral position before tightening. The hot-dip galvanized surface copes well with condensation, rain and temperature changes, so you can rely on it for outdoor installations as well as interior plant rooms, car parks or industrial buildings.

Full specifications

• Product series: ASL 733
• Model: ASL 733 53 FT
• Clamp type: Distance clamp
• Material: Steel
• Surface finish: Hot-dip galvanized
• Clamping diameter range: 44 – 53 mm
• Mounting hole type: Elongated hole (slot)
• Elongated hole dimensions: 7 x 15 mm
• Standoff distance from wall: 20 mm
• Number of fastening points: 1
• Application: Cable and pipe fastening
• Corrosion resistance: High
• Environmental suitability: Indoor and outdoor
• Halogen-free: Yes
• UV resistance: Yes
• Colour: Metallic grey
• MPN: 1362734
• EAN: 4012196600007

Final note

Choose the OBO BETTERMANN ASL 733 53 FT when you need a robust, adjustable clamp that provides a stable standoff and quick alignment. Its galvanized finish and high corrosion resistance make it a dependable choice for both electrical and mechanical installation work.
