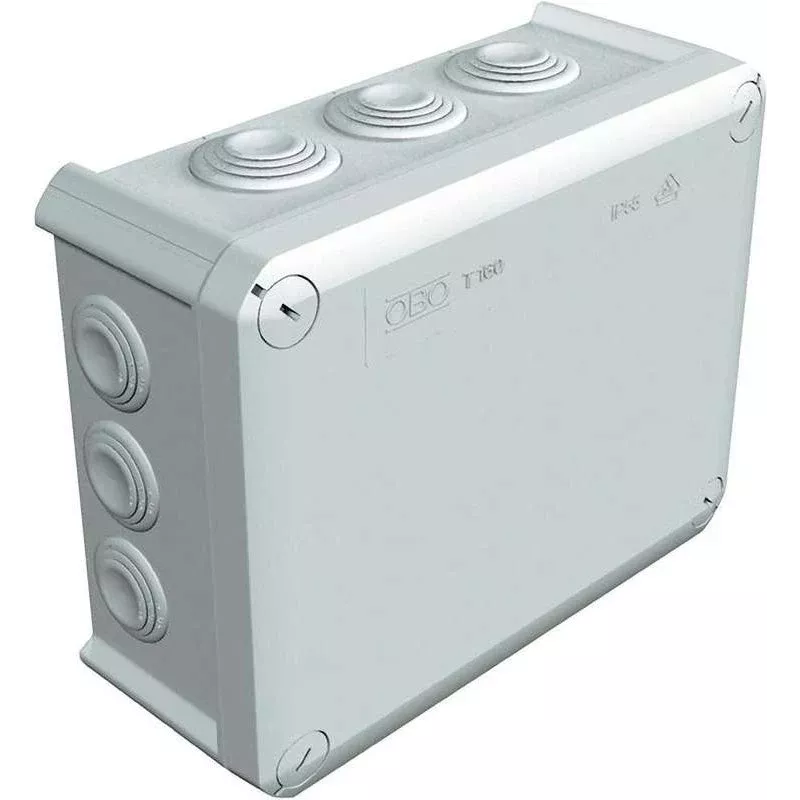

OBO Bettermann Caixa de derivação de cabos T 160, 8 entradas, IP66, cinzento 2007093

The T 160 cable junction box from OBO Bettermann provides a robust, surface-mounted enclosure for electrical connections in demanding environments. Its integrated soft sealing membranes allow quick, tool-free cable entry without separate glands, while the four stainless steel screws secure the cover for reliable protection.

Highlights

• 8 integrated soft sealing membranes for M25/M32 cable entry
• IP66 protection against dust and powerful water jets
• Impact resistance rated IK08
• Halogen-free polypropylene enclosure with TPE seals
• UV resistant for outdoor use

In daily use

The enclosure is made of grey polypropylene (RAL 7035) and rated for insulation voltage up to 690 V. It accommodates conductors up to 16 mm² and operates from -25 °C to +60 °C. Internal mounting points allow secure fixing to walls or panels.

Full specifications

• Material: Polypropylene (PP)
• Seal material: Thermoplastic elastomer (TPE)
• Colour: Grey (RAL 7035)
• Number of cable entries: 8
• Cable entry type: Integrated soft sealing membranes
• Cable entry size: M25/M32
• Rated insulation voltage: 690 V
• Halogen-free: Yes
• Glow wire test: 750 °C (EN 60670-1)
• Operating temperature: -25 °C to +60 °C
• Cover fastening: 4x stainless steel screws
• Mounting type: Surface-mounted
• UV resistance: Yes
• Max conductor cross-section: 16 mm²

Final note

The T 160 combines tool-free cable entry with high mechanical and environmental protection, making it suitable for industrial and outdoor installations.
