OBO BETTERMANN OBO 249 PV10 6-50V2A Terminal de terra universal PV 5051520

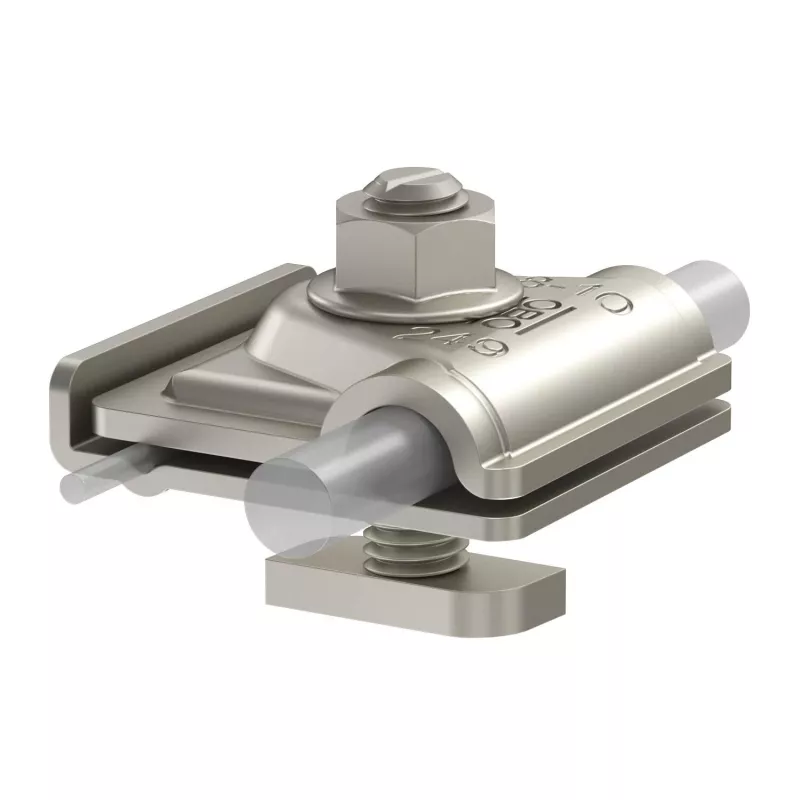

Universal earthing clamp for photovoltaic systems, providing reliable equipotential bonding for round and flat conductors from 6 to 50 mm². The clamp body is made of nickel-plated brass, ensuring high corrosion resistance for outdoor use.

Advantages

High corrosion resistance due to nickel-plated brass body and galvanized steel screw. Suitable for both round and flat conductors, simplifying installation in PV systems. Compliant with DIN EN 62561-1.

Suitable for

• Earthing and equipotential bonding in photovoltaic installations
• Outdoor applications requiring corrosion-resistant connections
• Connecting round or flat conductors with cross-sections from 6 to 50 mm²

Key specifications

• Product type: Universal earthing clamp
• Conductor compatibility: Round and flat conductors
• Conductor cross-section range: 6 - 50 mm²
• Clamp body material: Brass, nickel-plated
• Screw material: Steel, galvanized
• Connection method: Screw connection
• Number of connection points: 2
• Mounting type: Clamp-on

Recommendations

Ideal for PV installers seeking a durable, corrosion-resistant earthing solution that accommodates a wide range of conductor sizes.
