OBO Bettermann Tomada 33°, 2 tomadas Schuko STD-D3S SRO2 6120109

Rated for 16 A at 250 V, this 2-way Schuko socket outlet is angled at 33° for easier access in trunking installations.

Overview

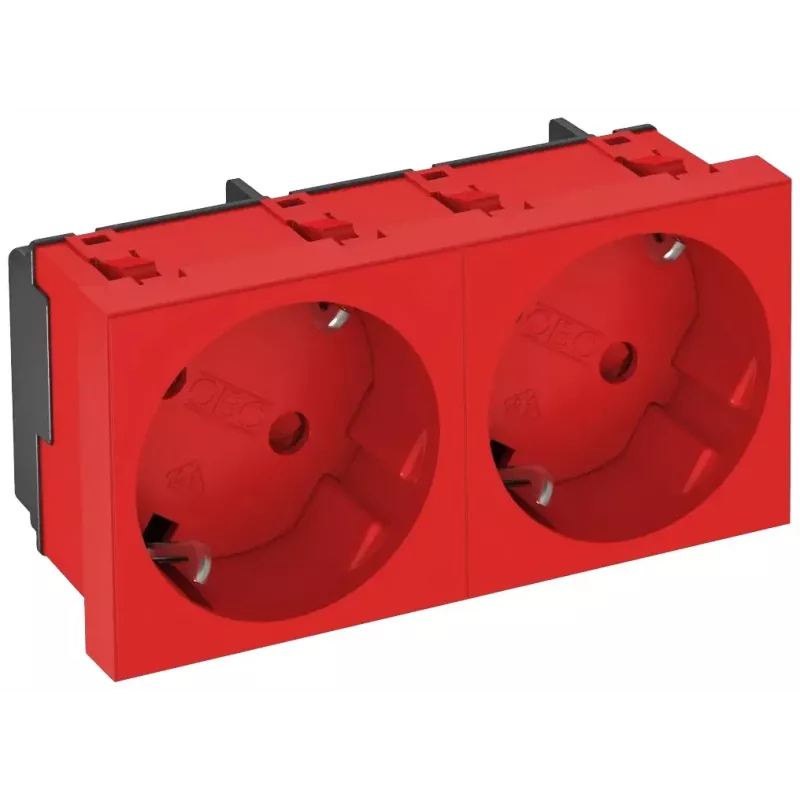

The OBO Bettermann Vertr STD-D3S SRO2 is a pre-wired socket outlet module designed for OBO Bettermann Rapid 45/80 trunking systems. It features two Schuko (Type F) sockets with a 33° angled orientation, making plug insertion and removal more ergonomic in confined spaces. The unit is constructed from halogen-free thermoplastic in pure white (RAL 9010) and uses push-in terminals for quick, tool-free wiring.

What stands out

• 33° angled sockets for improved accessibility
• Pre-wired with push-in terminals for fast installation
• Halogen-free thermoplastic housing in pure white
• Compatible with OBO Bettermann Rapid 45/80 trunking systems

Technical details

• Socket type: Schuko (Type F)
• Number of sockets: 2
• Rated voltage: 250 V
• Rated current: 16 A
• Frequency: 50/60 Hz
• Connection type: Push-in terminals
• Mounting type: Device installation unit / trunking system
• Material: Thermoplastic (PC/ABS)
• Colour: Pure White (RAL 9010)
• Protection class: IP20
• Halogen-free: Yes
• Pre-wired: Yes
• Module width: 2 modules
• Certification: VDE

Our verdict

A reliable, pre-wired Schuko outlet module with a practical 33° angle, ideal for rapid installation in OBO trunking systems.
