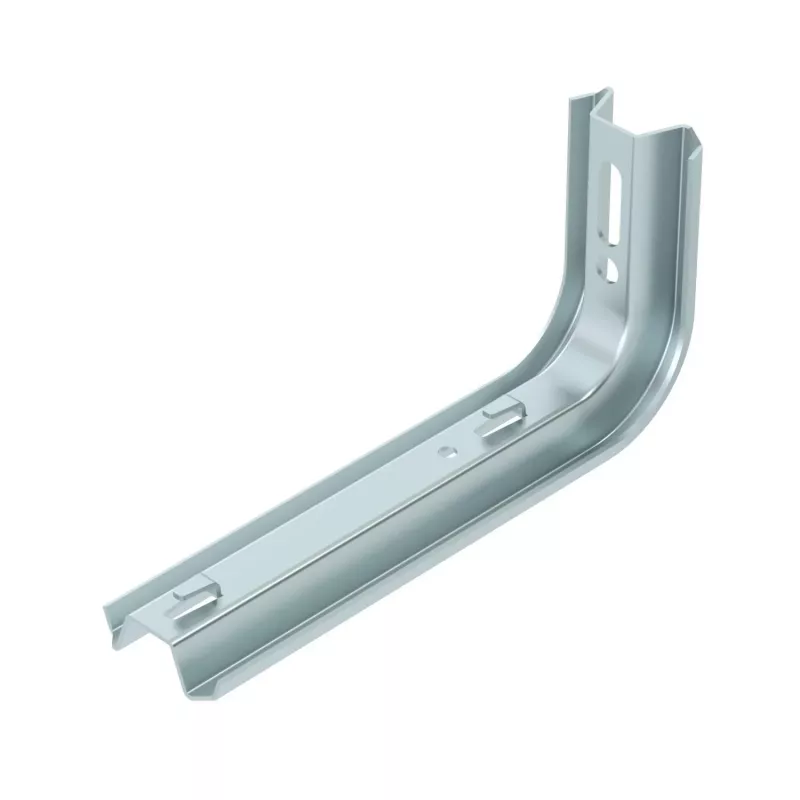

OBO Bettermann TPSAG 245 FS Braço para calha de grelha 200 mm, aço galvanizado a quente 6366031

Cantilever for mesh cable trays, providing robust support for cable routing in industrial and commercial environments. Its hot-dip galvanised steel construction ensures high corrosion resistance for indoor and outdoor use.

Advantages

Hot-dip galvanised finish per DIN EN ISO 1461 delivers long-lasting protection against corrosion. The cantilever supports mesh cable trays up to 200 mm width with a usable support length of 200 mm and a load capacity of 0.2 kN.

Suitable for

• Mesh cable trays up to 200 mm width
• Wall or ceiling mounting in industrial, commercial, and public buildings
• Indoor and outdoor cable routing applications

Key specifications

• Material: Steel
• Surface finish: Hot-dip galvanised (FS)
• Cantilever length: 245 mm
• Profile dimensions: 40 x 40 mm
• Mounting hole diameter: 11 mm (for M10 anchors)
• Number of mounting holes: 2

Recommendations

For secure installation, use appropriate fastening elements (not included) suitable for the wall or ceiling substrate.
